AR68.30-P-4350V Remove/Install Paneling At Front of Vario-Roof



AR68.30-P-4350V Remove/install Paneling At Front Of Vario-roof

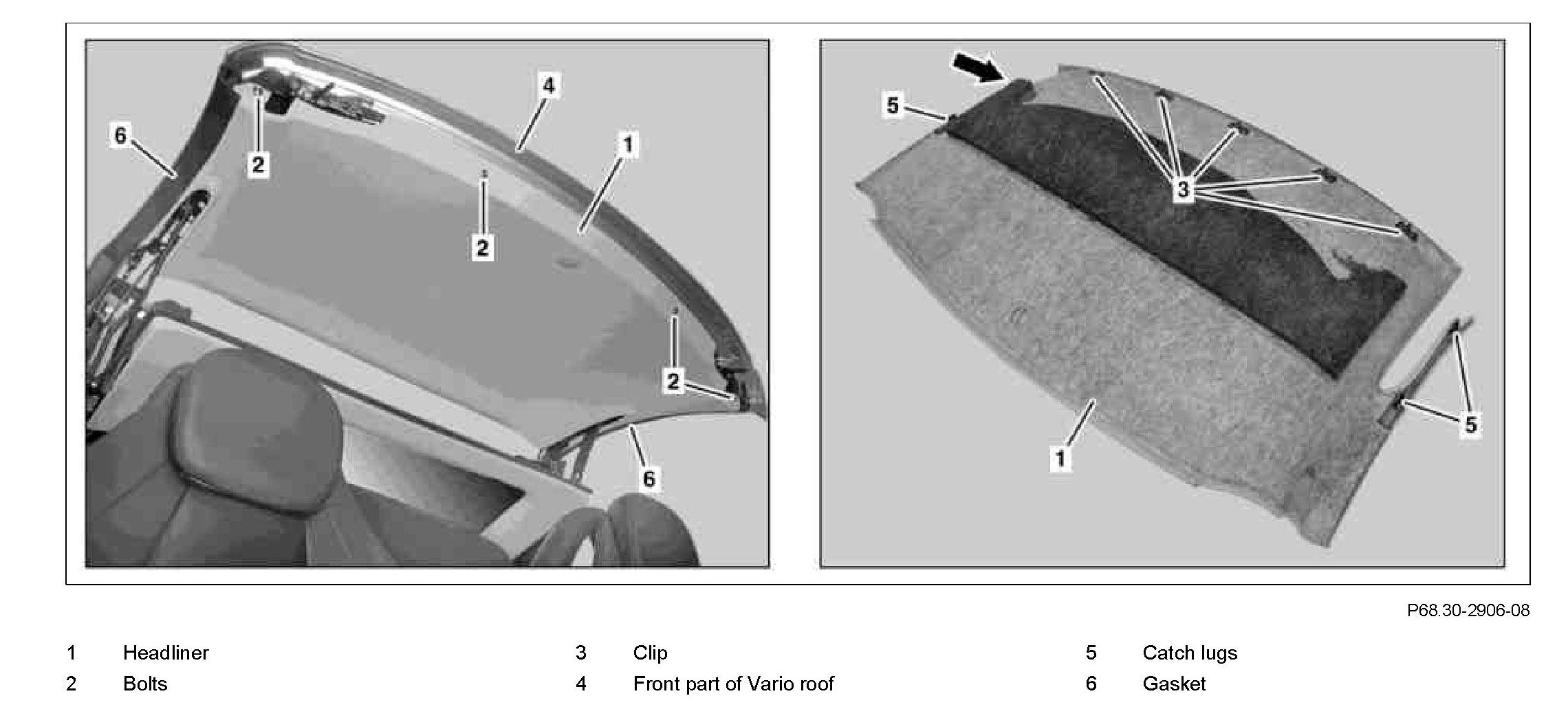

Component Identification:

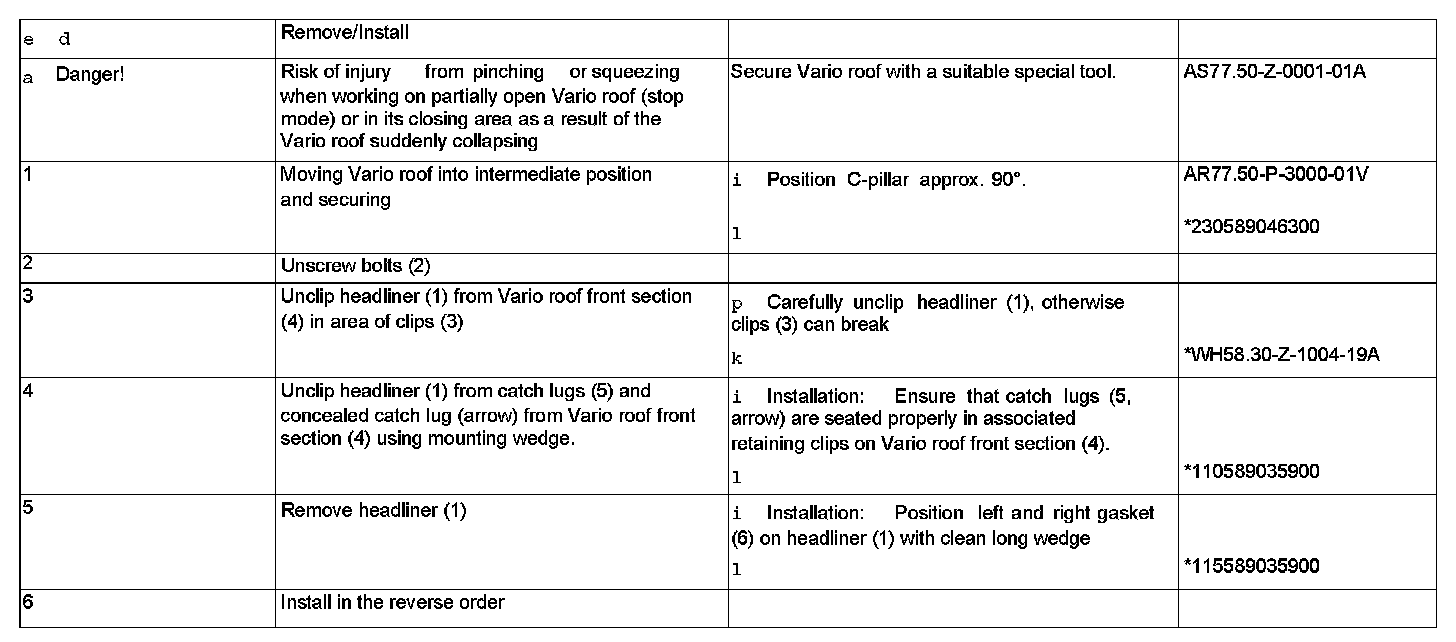

Steps 1 - 6:

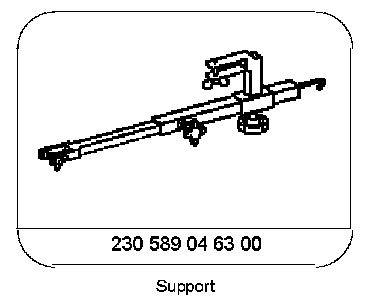

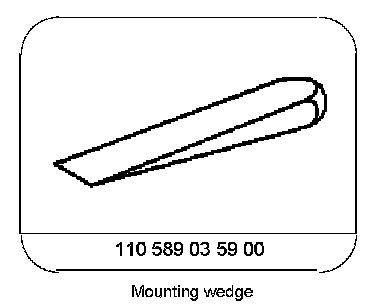

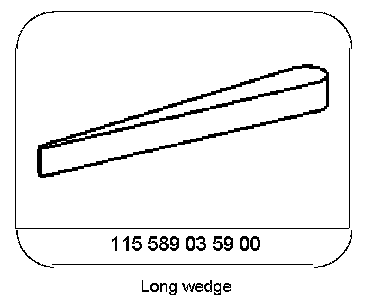

Special Tools:




Special Tools:




Special Tools:

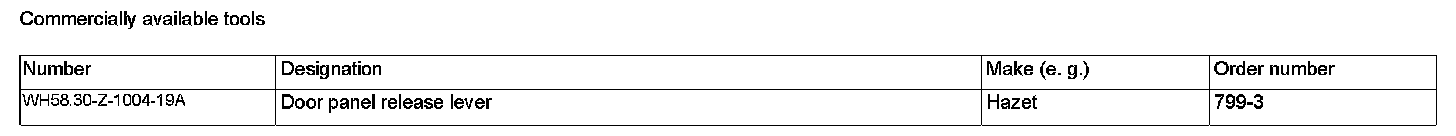

Commercially Available Tools:
