GF77.30-P-0001-04RC Vario Roof (VR), Location of Components
GF77.30-P-0001-04RC Vario Roof (VR), Location of Components

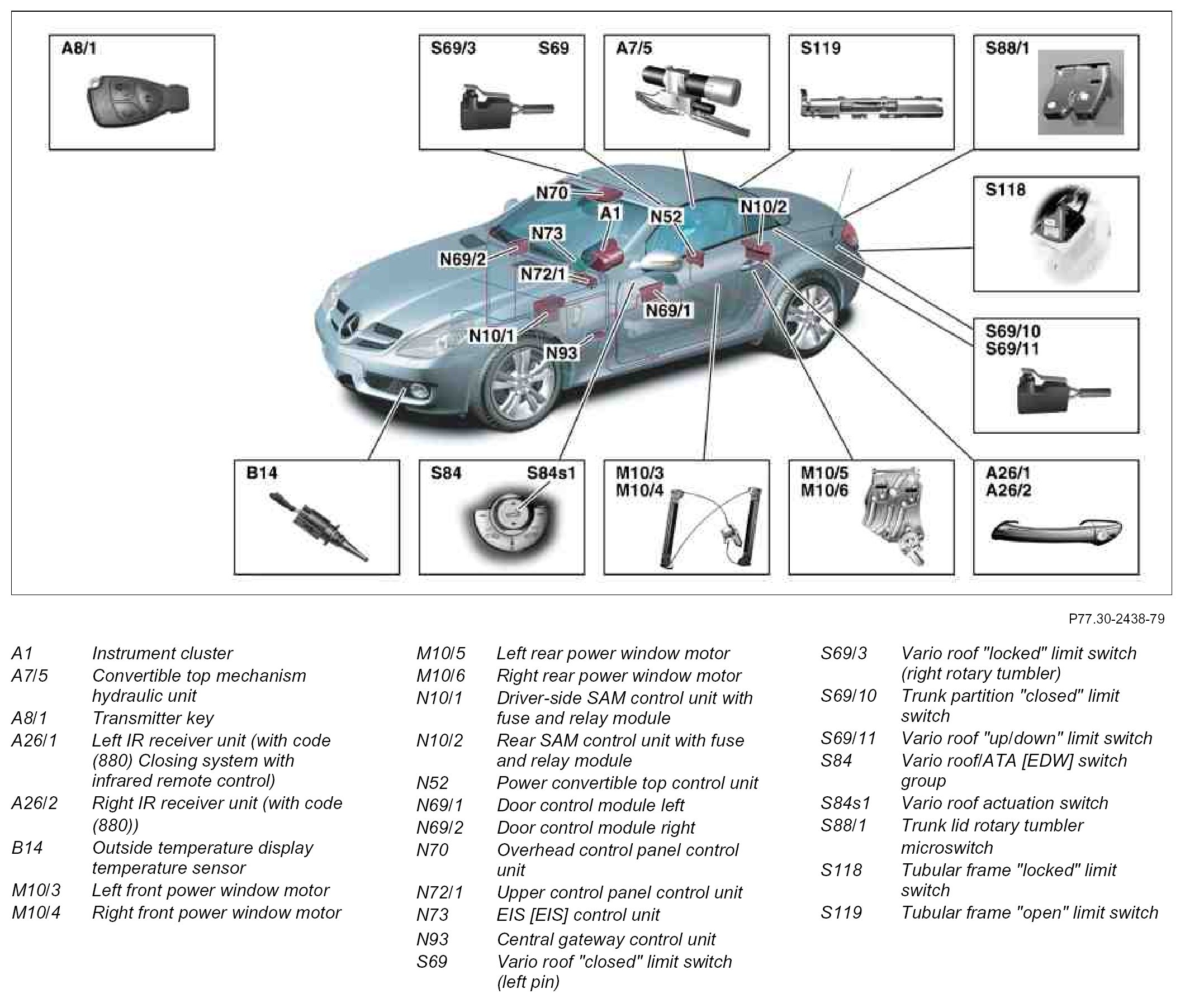

GF77.30-P-0001-04RC Vario Roof (VR), Location Of Components
- as of model year 09
Component Identification:
