AR88.50-P-5062V Remove/Install Trunk Lid Handle
AR88.50-P-5062V Remove/Install Trunk Lid Handle
AR88.50-P-5062V Remove/install Trunk Lid Handle

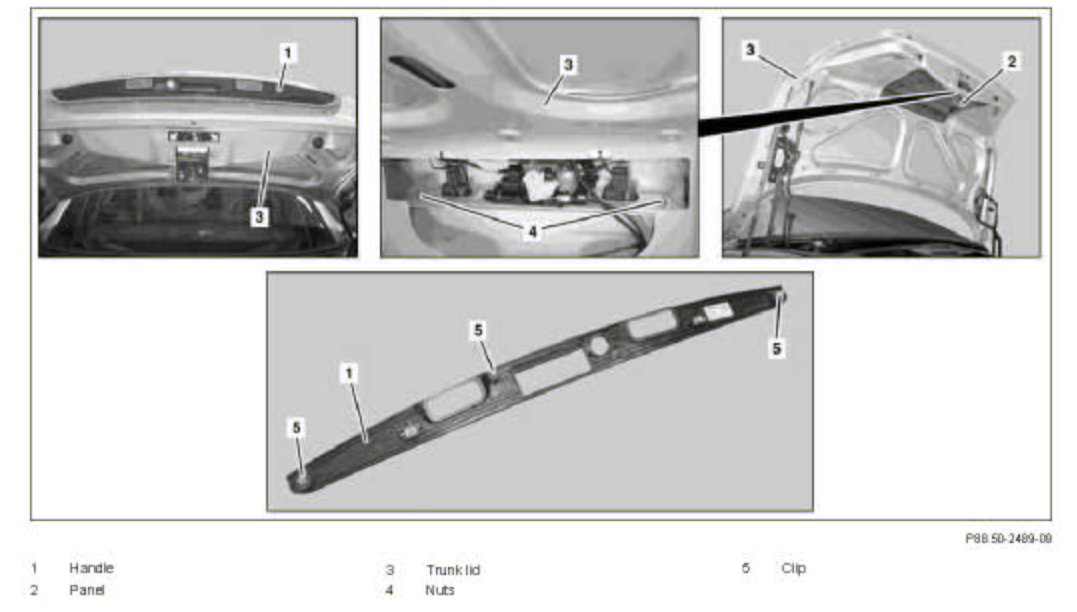

Component Identification:

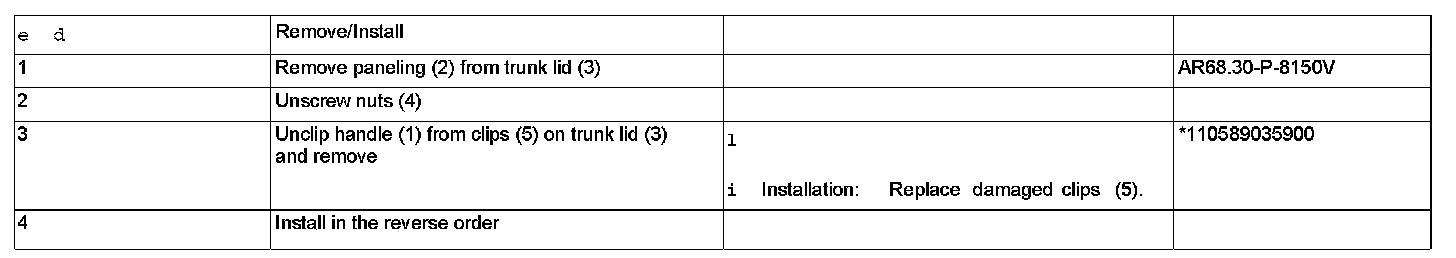

Steps 1 - 4:

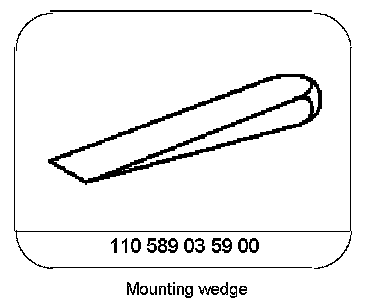

Special Tools:
