AR80.50-P-0015V Remove/Install ATA Center Console Compartment Switch



AR80.50-P-0015V Remove/install ATA Center Console Compartment Switch
- with CODE (551a) Anti-theft alarm system (ATA)

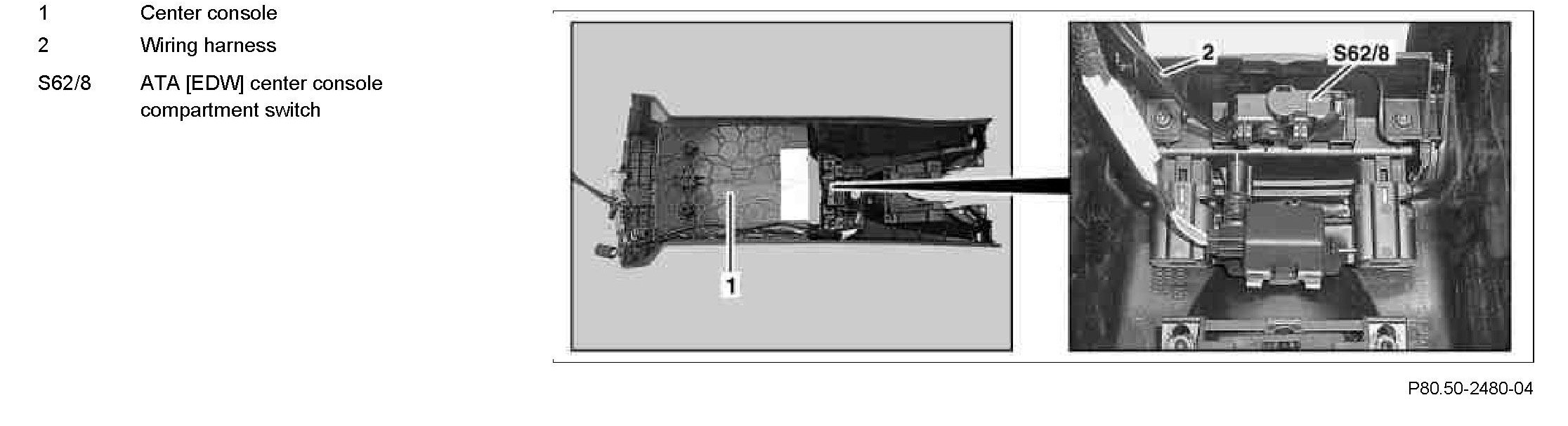

Component Identification:

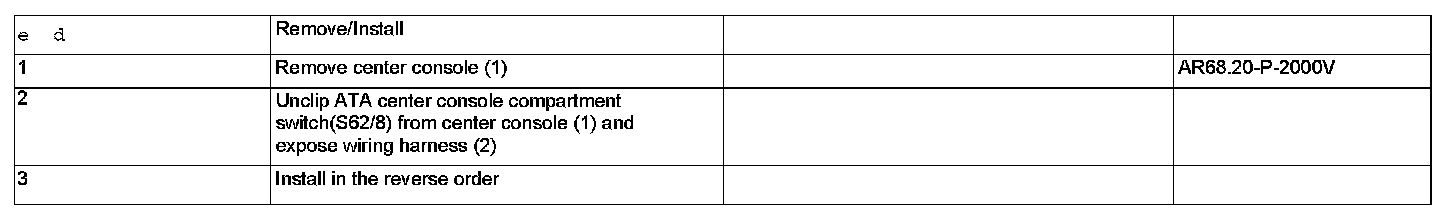

Steps 1 - 3:
