AR82.30-P-6000T Check Wiper Arms and Adjust



AR82.30-P-6000T Check Wiper Arms and Adjust

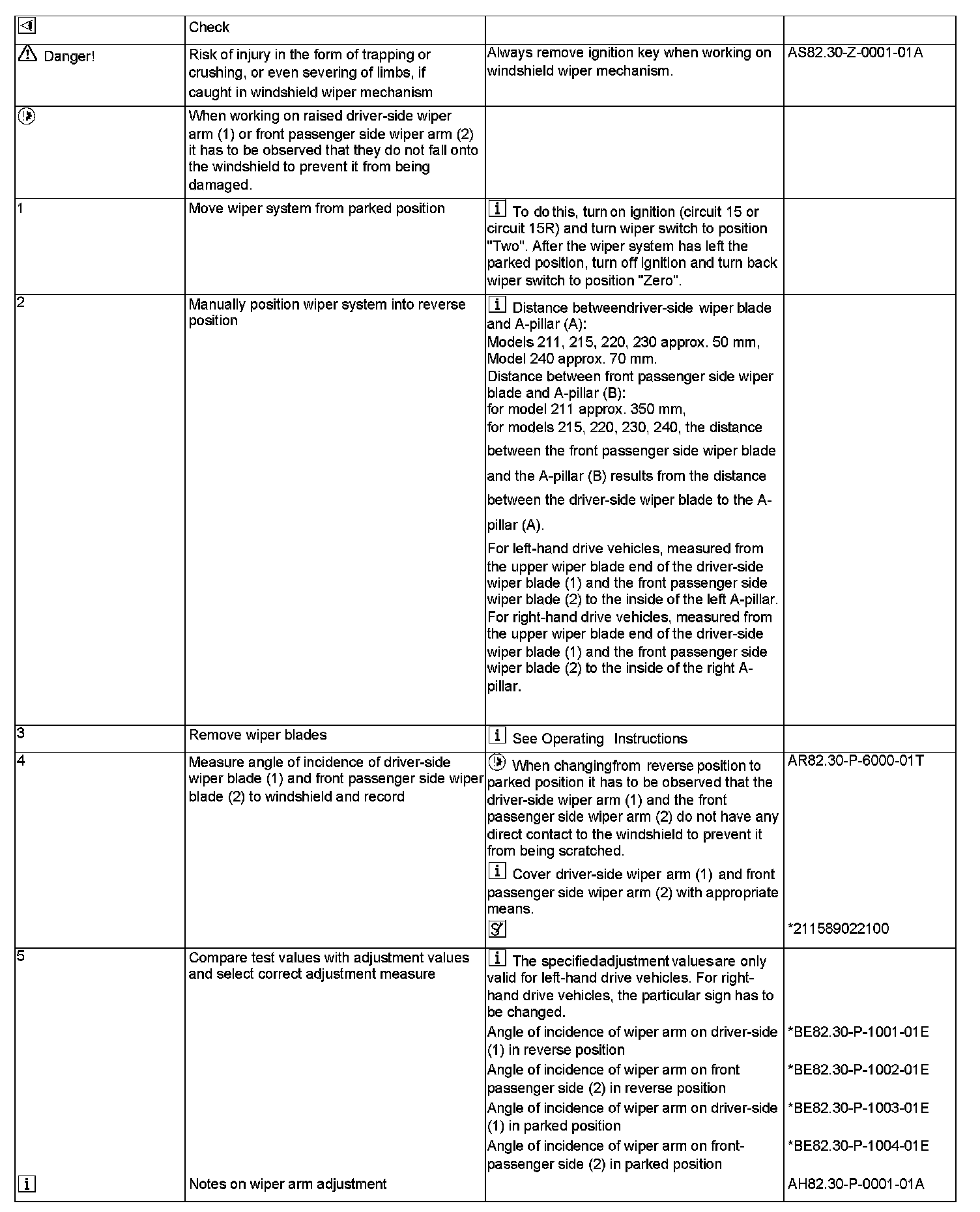

Part 1:

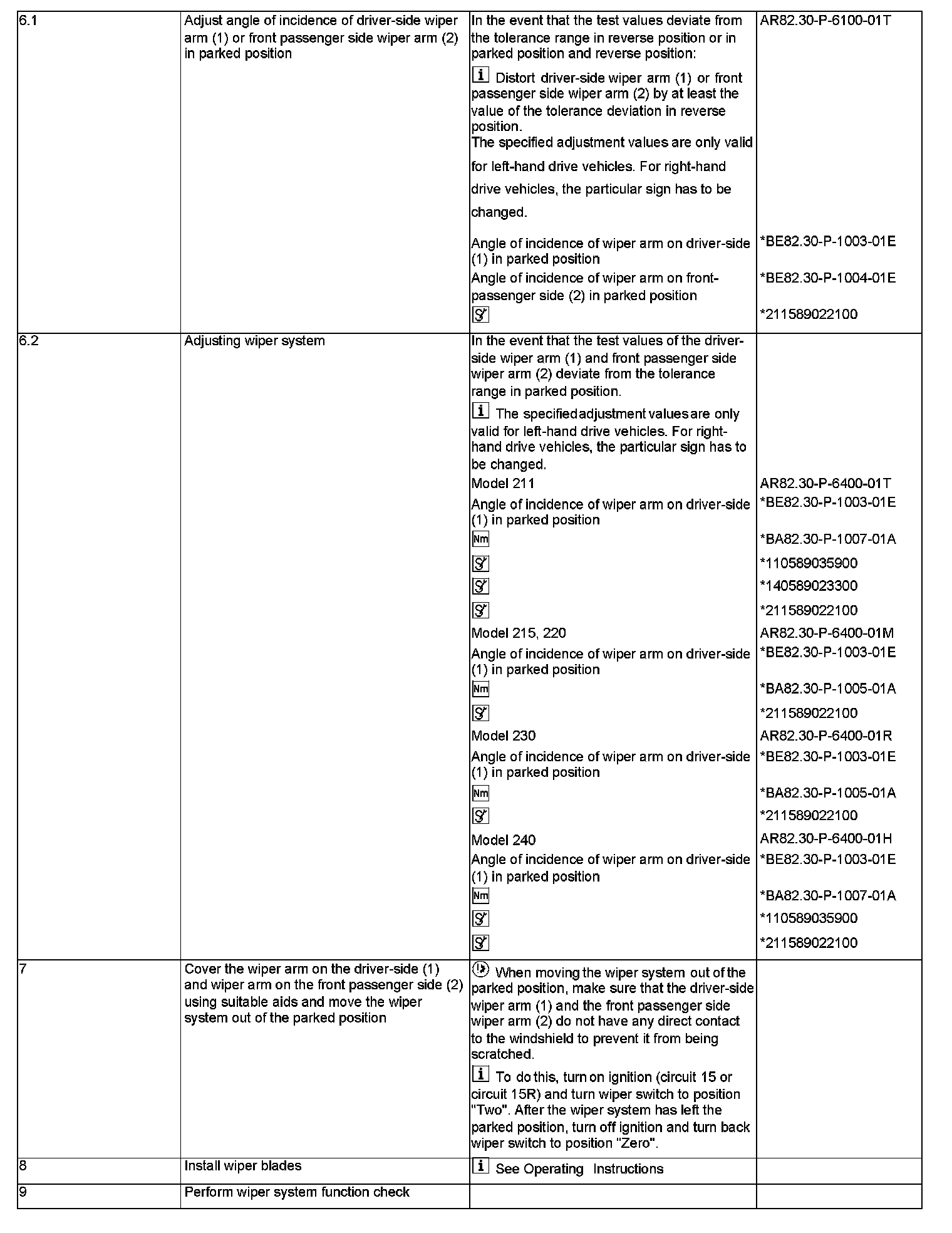

Part 2:

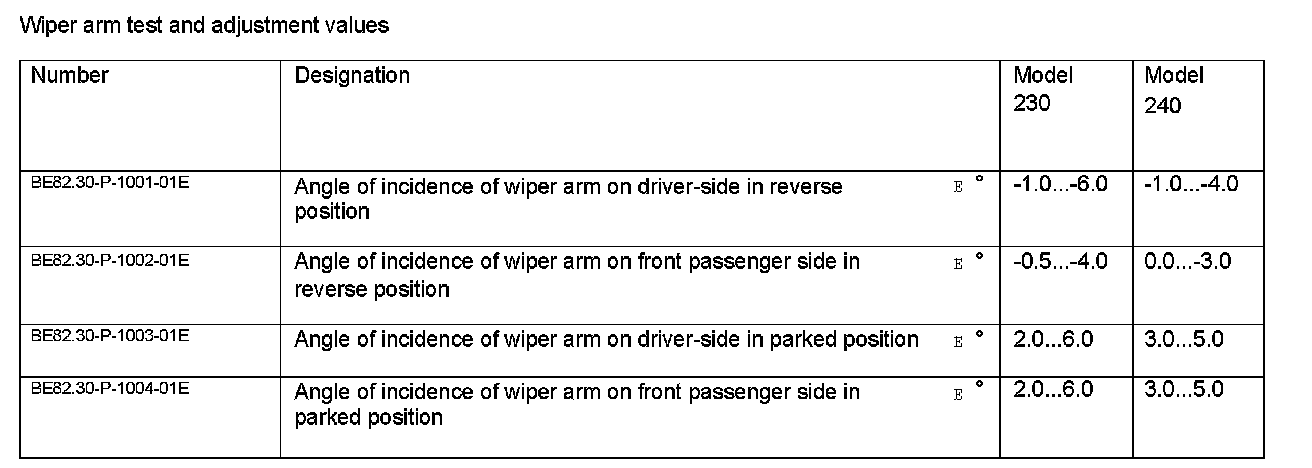

Wiper Arm Test And Adjustment Values:






Wiper Arm Test And Adjustment Values:






Windshield Wiper:






Windshield Wiper:
