Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Wiper and Washer Systems >> Headlamp Washer Spray Nozzle >> Service and Repair >> AR82.15-P-6100R Remove/Install Telescopic Nozzle of Headlamp Cleaning System

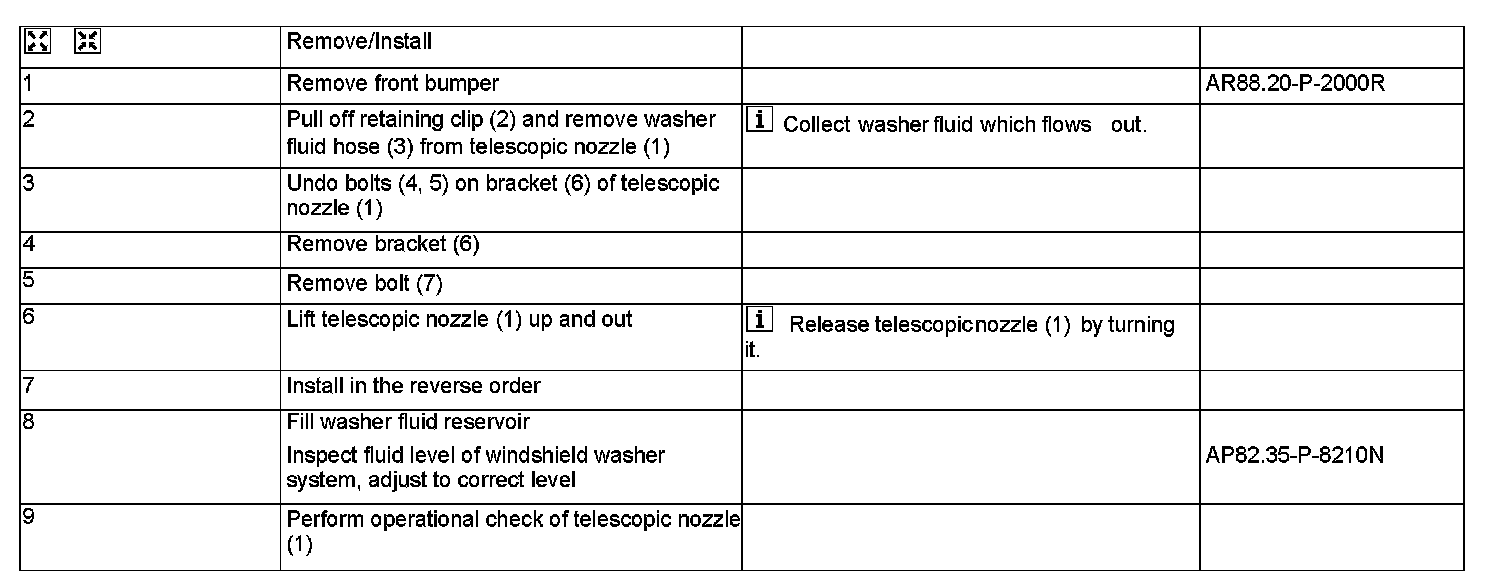

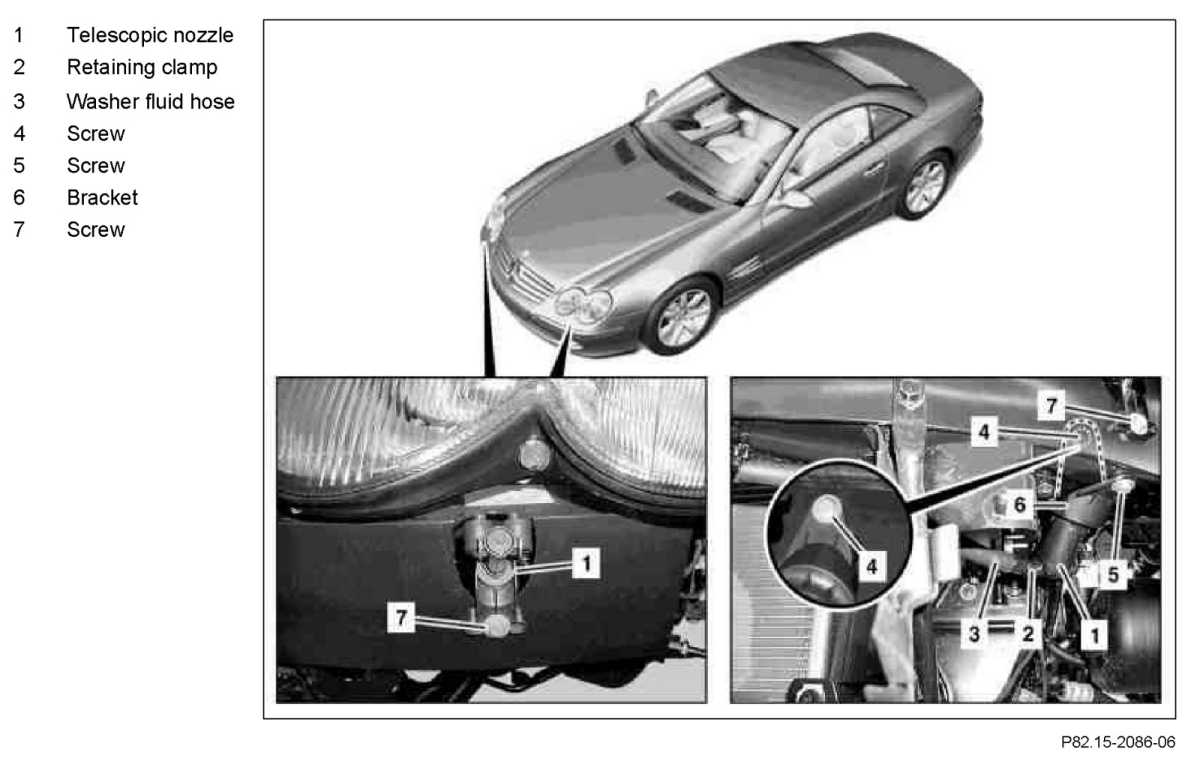

AR82.15-P-6100R Remove/Install Telescopic Nozzle of Headlamp Cleaning System



AR82.15-P-6100R Remove/Install Telescopic Nozzle of Headlamp Cleaning System
- except CODE (P99) "AMG Black Series" special model
