AR67.10-P-1050R Remove, Install Detachable Parts When Replacing Windshield



AR67.10-P-1050R Remove, Install Detachable Parts When Replacing Windshield

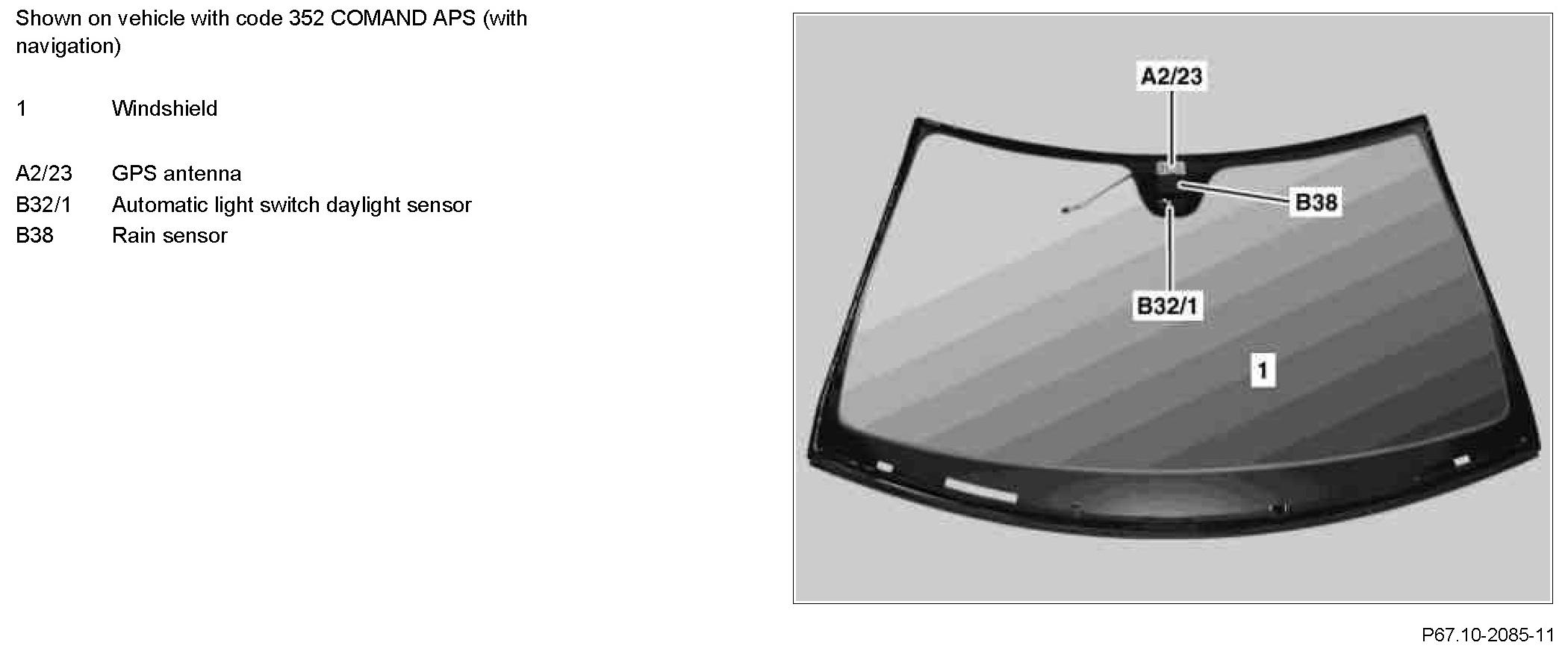

Component Identification:




Component Identification:

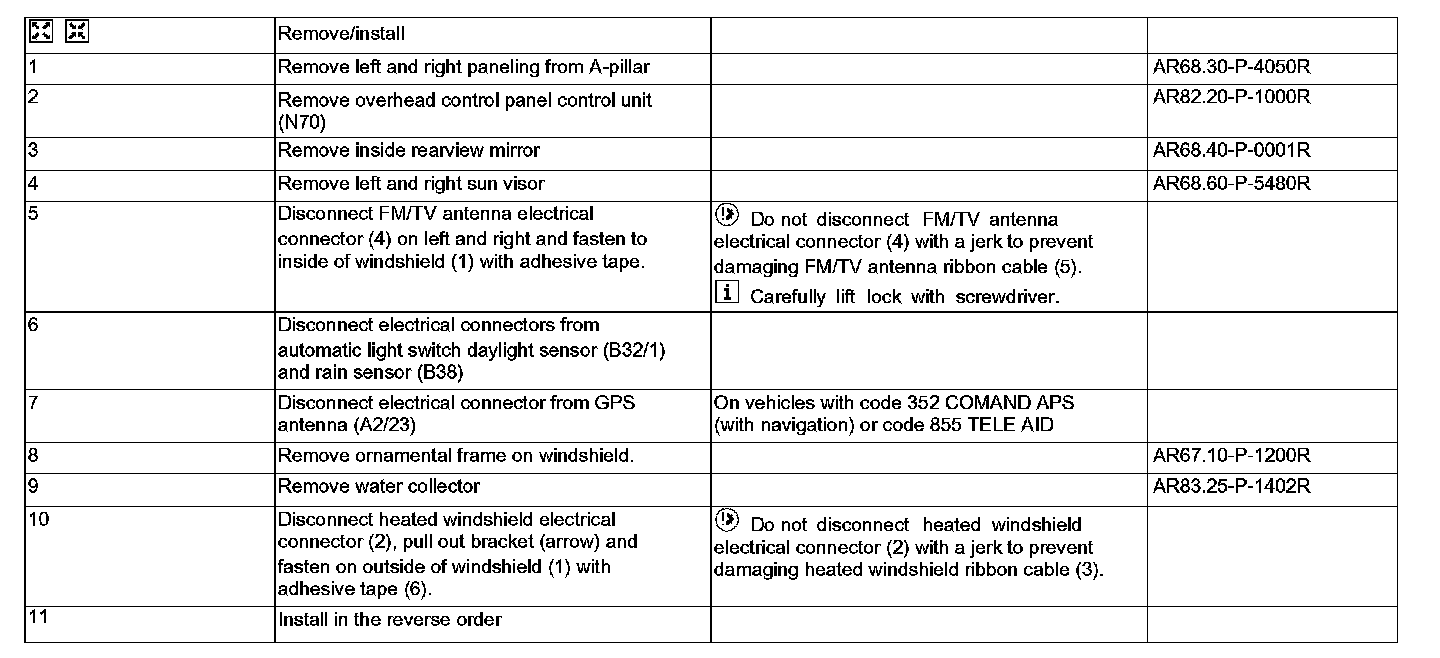

Steps 1 - 11:
