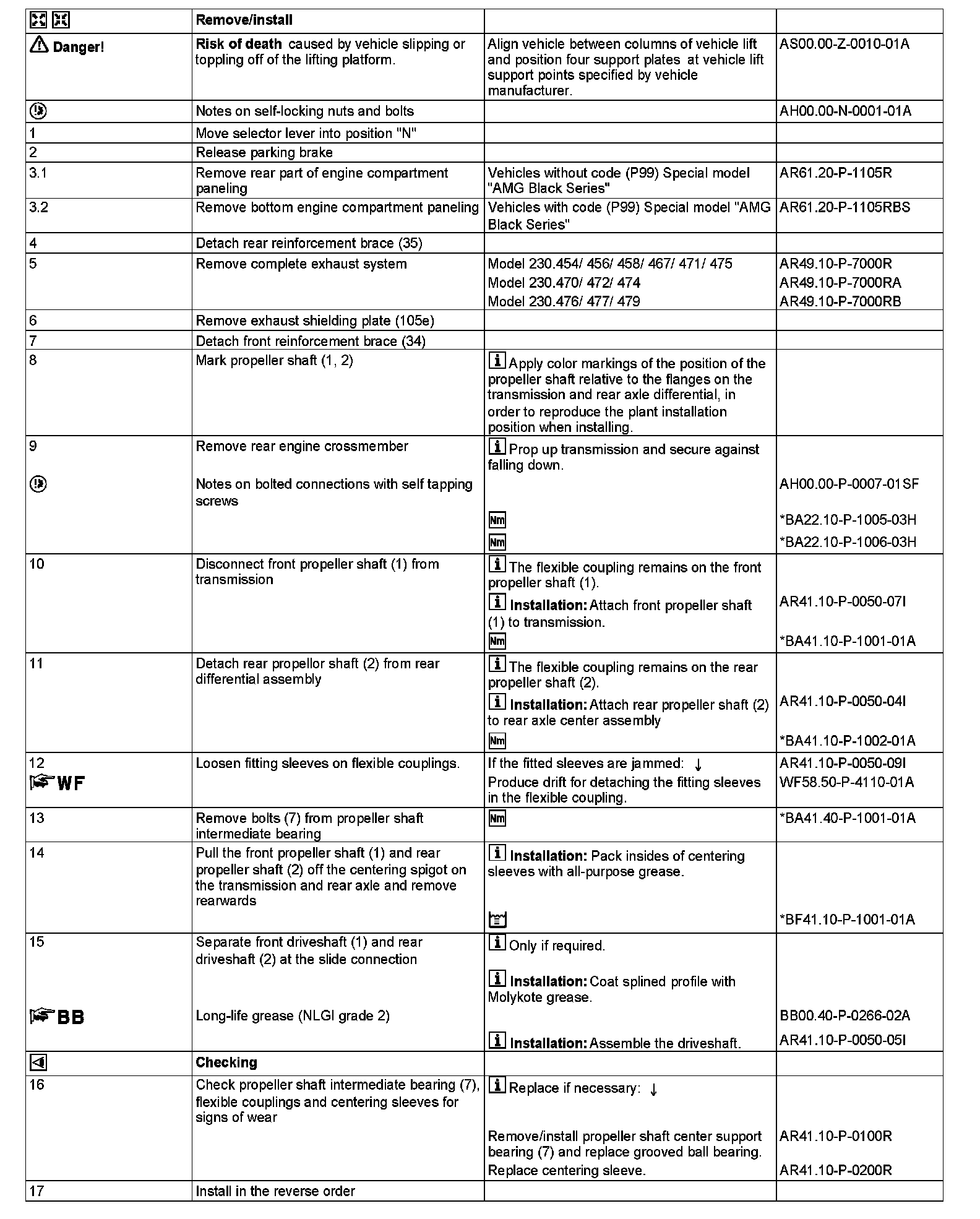

AR41.10-P-0050R Remove/Install Propeller Shaft

AR41.10-P-0050R Remove/Install Propeller Shaft
MODEL 230

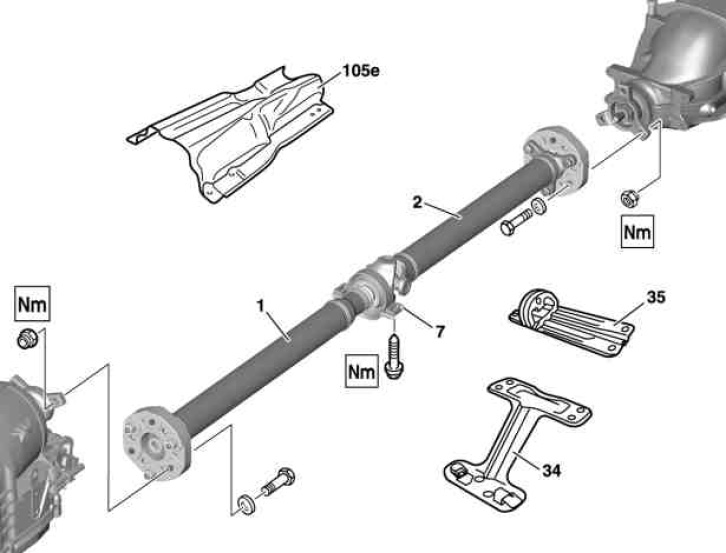

Shown on propeller shaft on model 230.475

1 Front propeller shaft
2 Rear propeller shaft
7 Propeller shaft intermediate bearing
34 Front reinforcement brace
35 Rear reinforcement bridge
105e Exhaust shielding plate
