AR41.10-P-0050-09I Release Guide Sleeves on Hardy Couplings

AR41.10-P-0050-091 Release guide sleeves on Hardy couplings
Drift for loosening fitted sleeves in flexible couplings.





Propeller shaft installed

Models 215, 220, 230 without vibration damper at rear

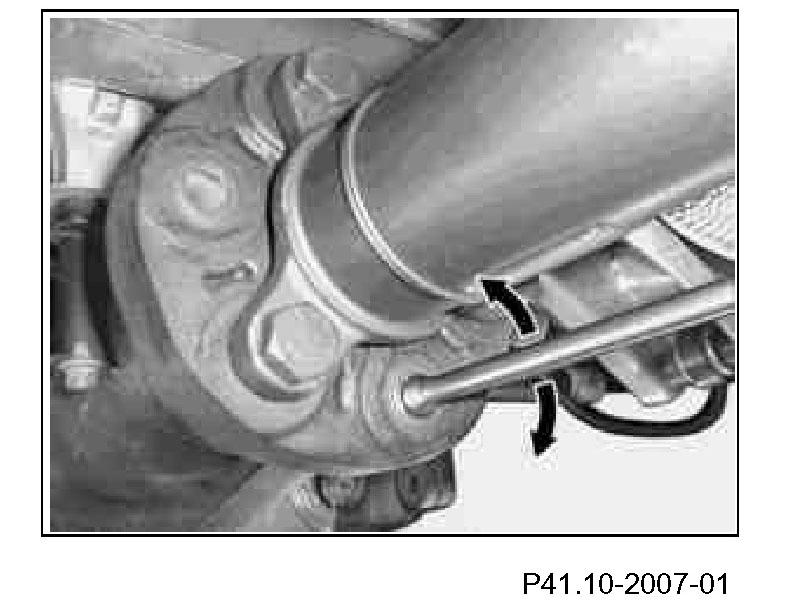

1 Loosen the fit sleeves of the flexible couplings using the drift (shop-made tool) on the three or four arm flange of the transmission or rear axle center assembly.





Model 220.028/128 with vibration damper at rear





Propeller shaft removed

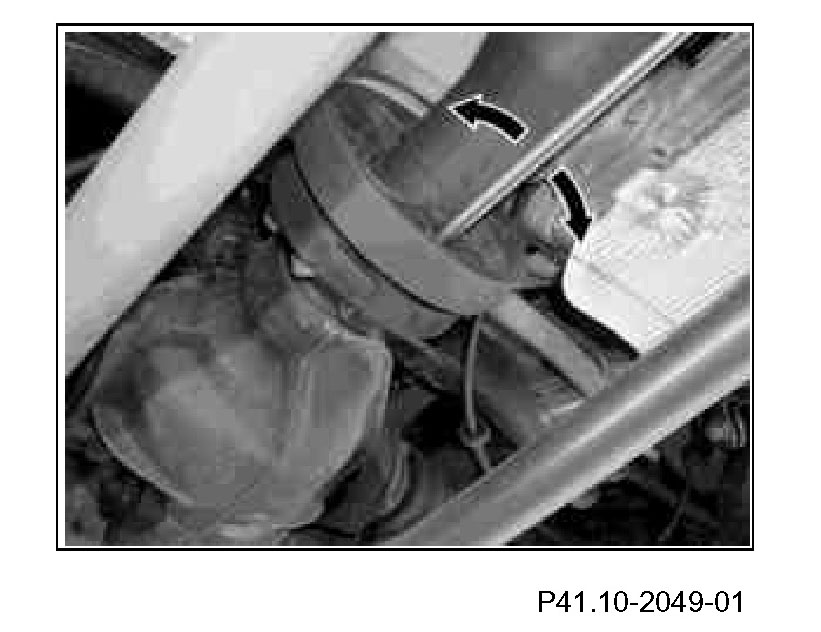

2 Loosen the fit sleeves of the flexible couplings using the drift (shop-made tool) on the three or four arm flange of the transmission or rear axle center assembly.
