AR41.10-P-0050-05I Connect Sections of Propeller Shaft Long-Life Grease (NLGI Grade 2)

AR41.10-P-0050-05I Connect sections of propeller shaft Long-life grease (NLGI grade 2)





1 Coat splined profile with Molykote(R) grease.
2 Connect sections of propeller shaft.

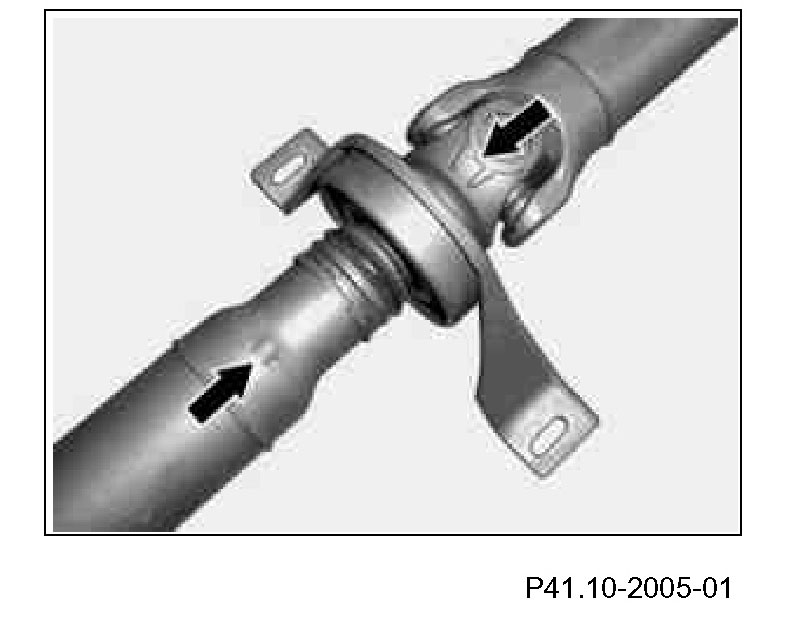

The humps on the front propeller shaft must be between the two humps on the linkage arm (arrows). Ensure correct seat of rubber sleeve at large diameter.

Shown on model 220
