Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Center Support >> Service and Repair >> Removal and Replacement >> AR41.10-P-0100R Remove/Install Propeller Shaft Intermediate Bearing and Replacing Deep-Groove Ball Bearing

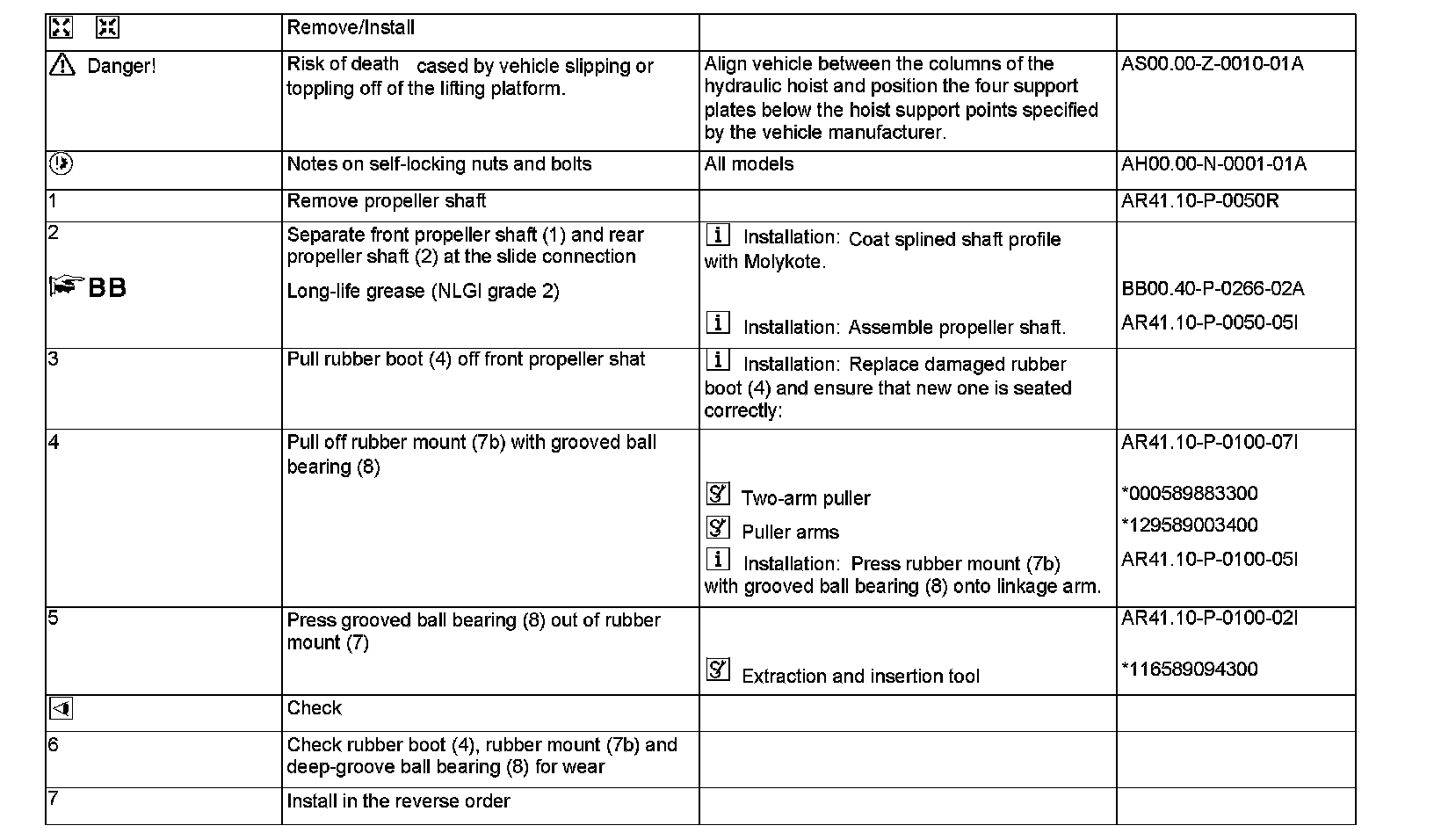

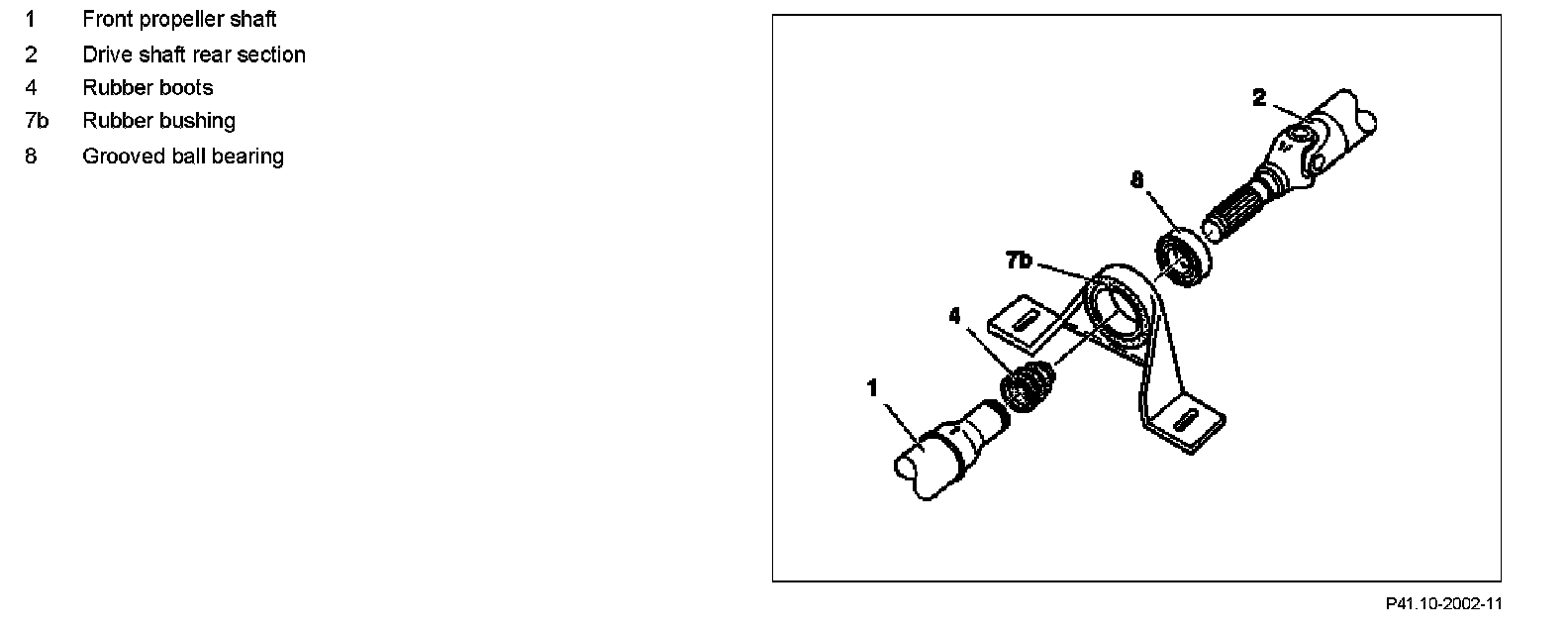

AR41.10-P-0100R Remove/Install Propeller Shaft Intermediate Bearing and Replacing Deep-Groove Ball Bearing




AR41.10-P-0100R Remove/Install Propeller Shaft Intermediate Bearing and Replacing Deep-Groove Ball Bearing
