Axle Shaft: Service and Repair

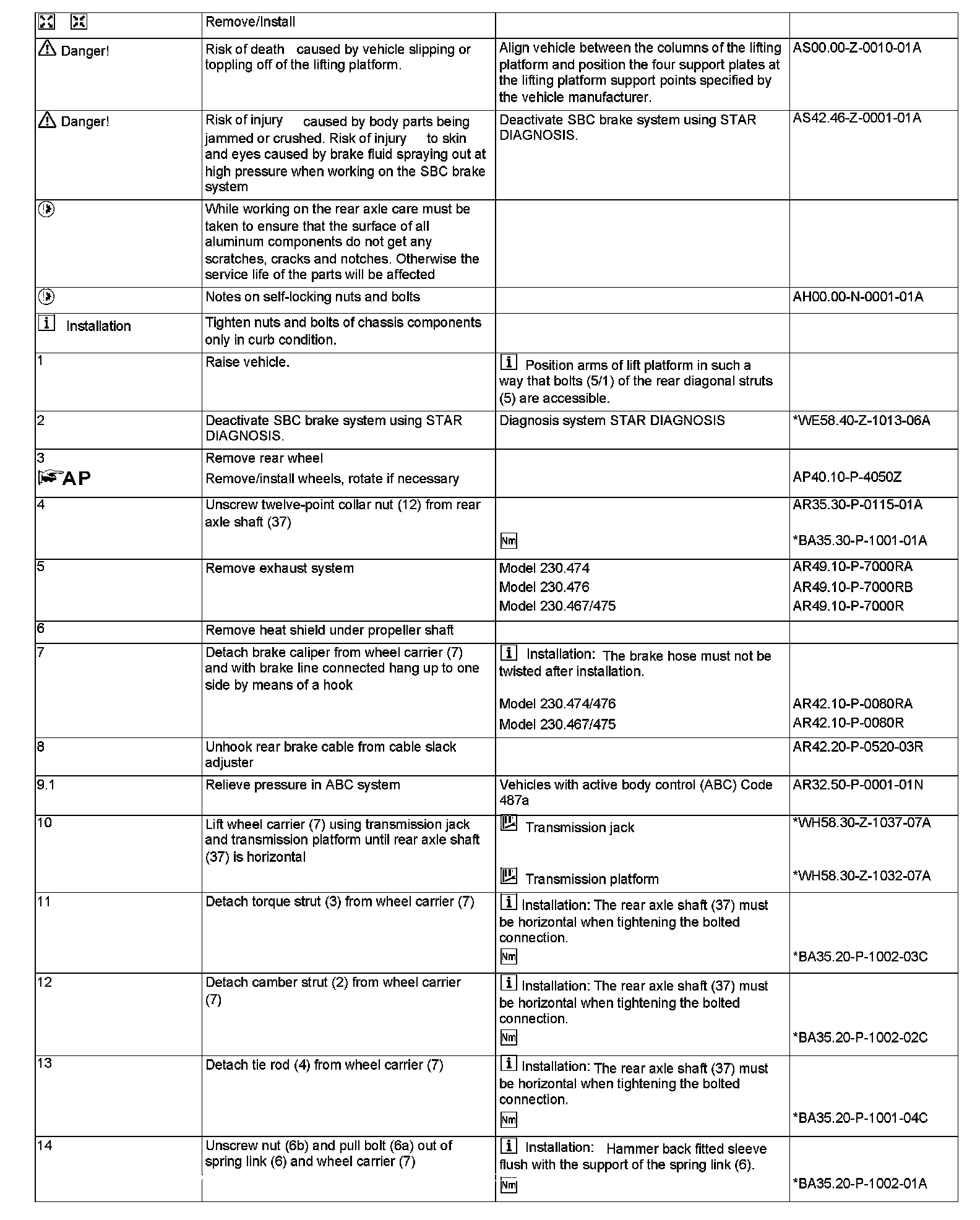

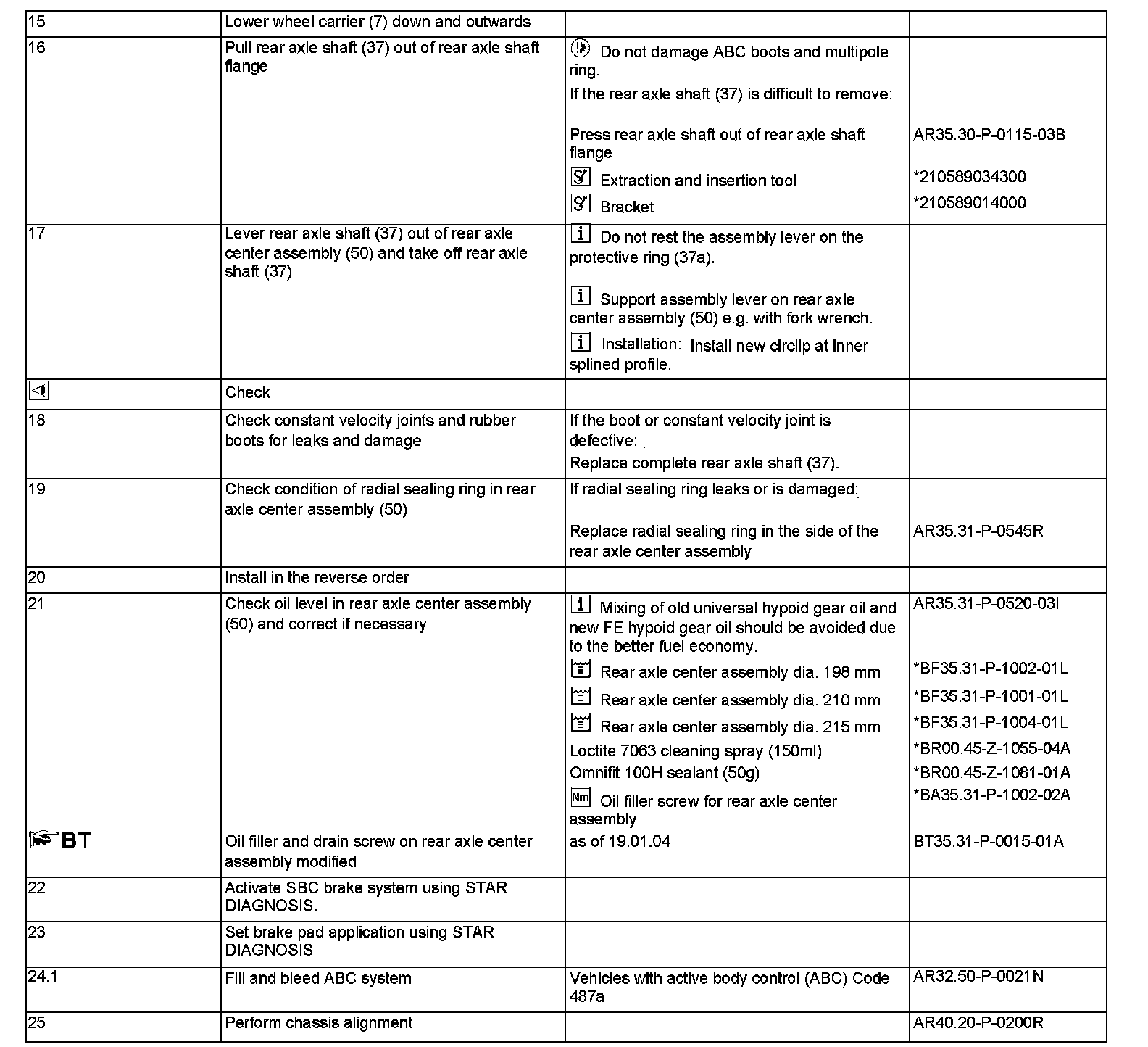

AR35.30-P-0620R Remove/install rear axle shaft

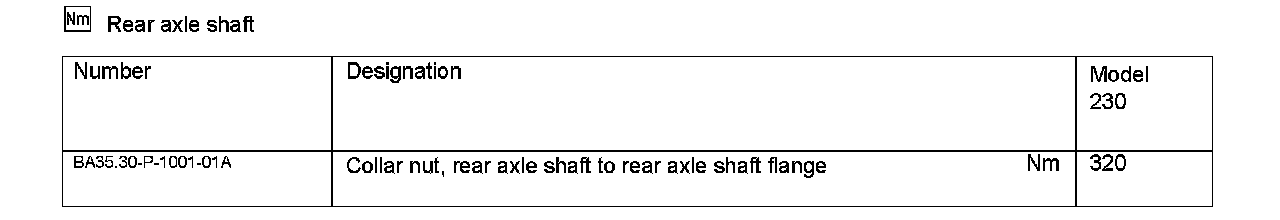

- with plugged in rear axle shafts

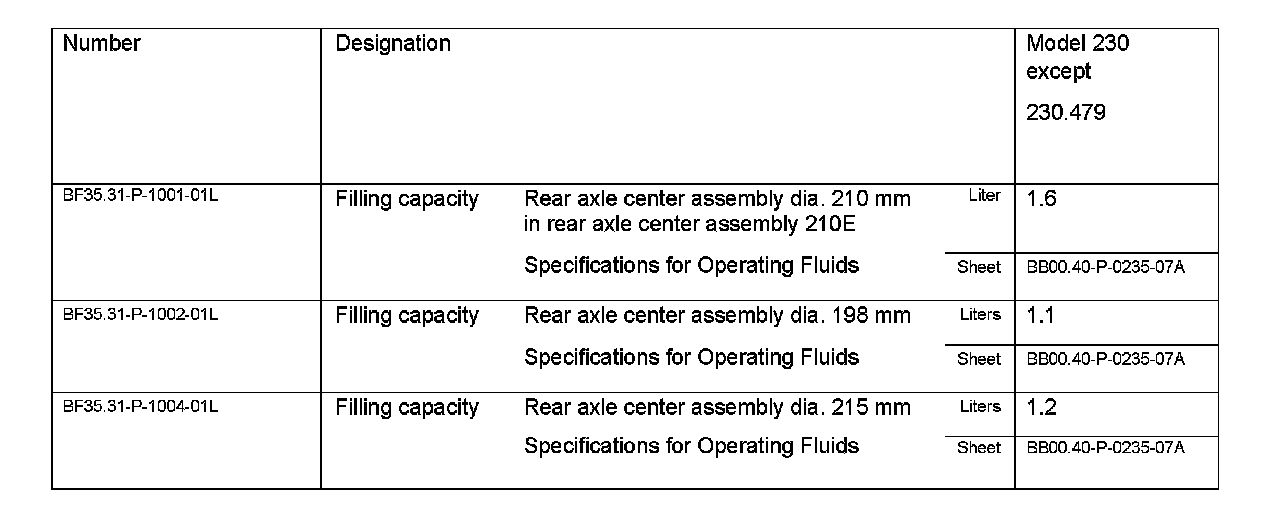

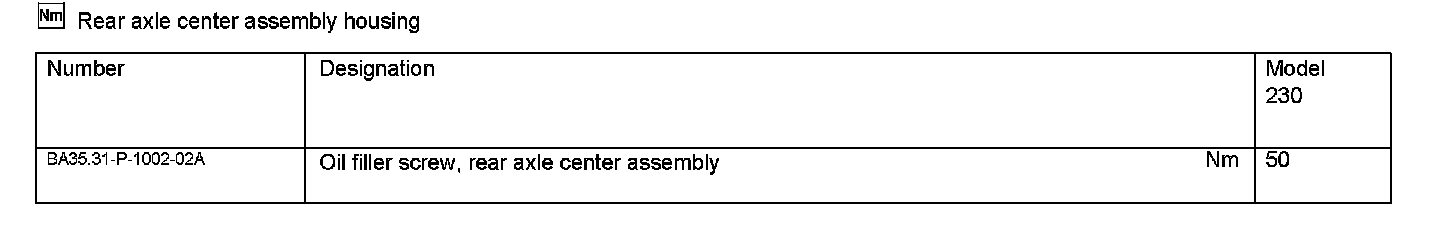

Rear axle center assembly:
