AR35.31-P-0595RBS Remove/Install Electrical Oil Pump For Rear Axle Oil Cooling



AR35.31-P-0595RBS Remove/install electrical oil pump for rear axle oil cooling
- Transmission 722
- with CODE (P99) Special model "AMG Black Series"


Component Identification:

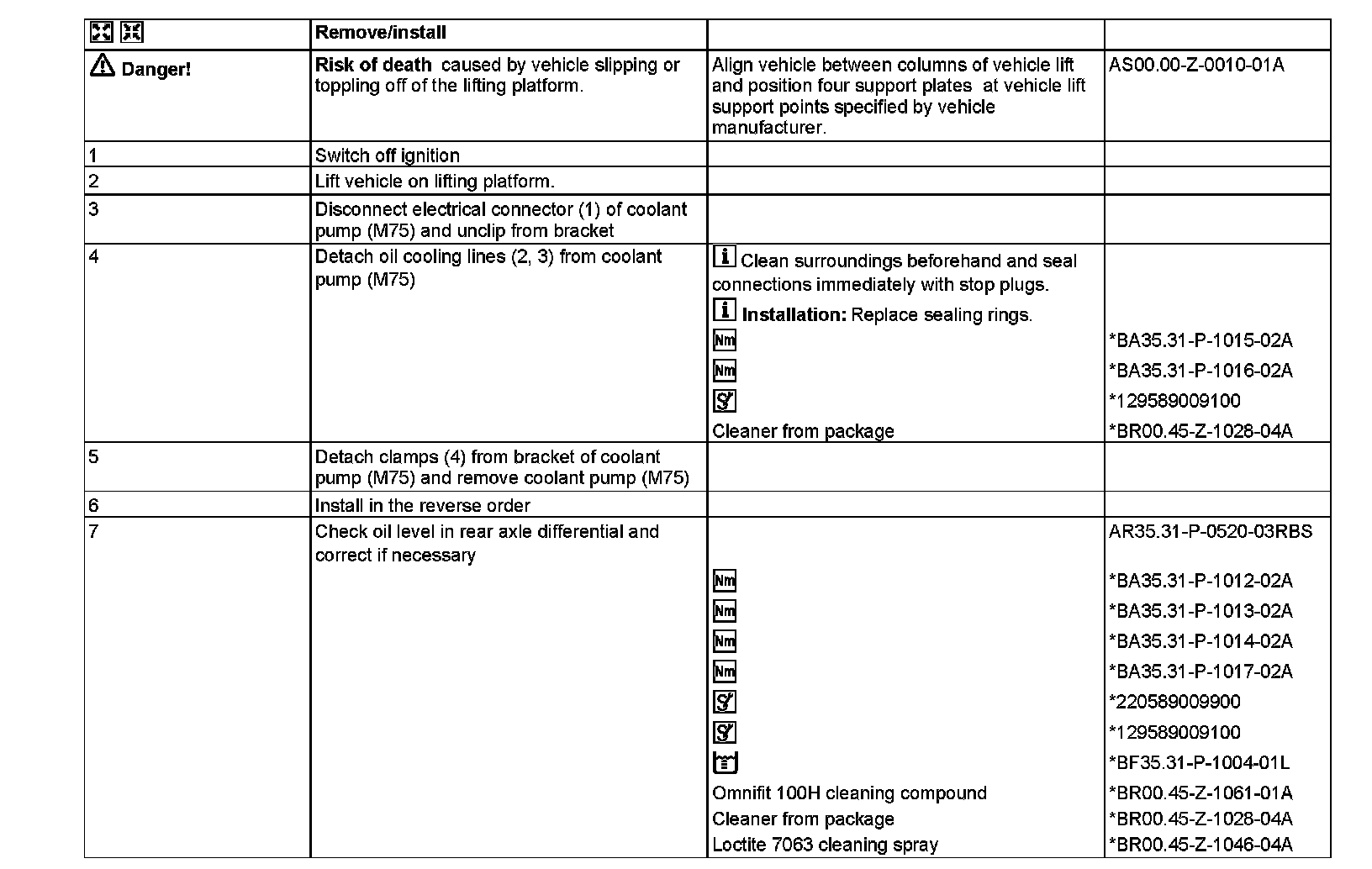

Steps 1-7:




Rear axle center assembly housing:

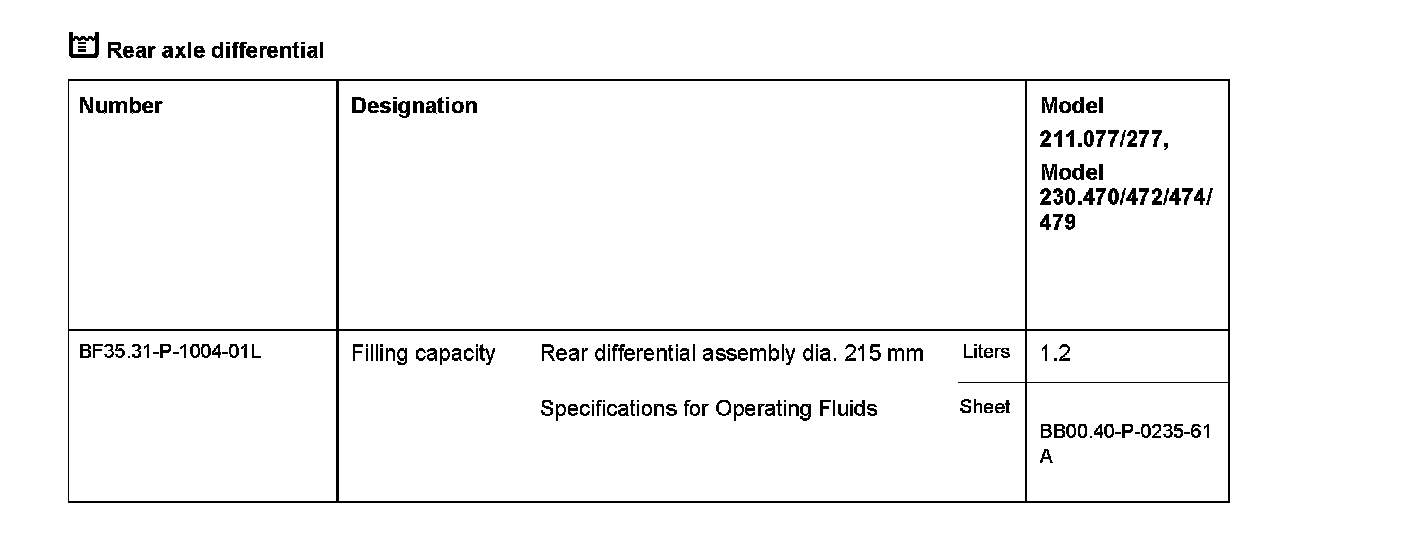

Rear axle differential:




Special Tools:




Repair materials:
