Seals and Gaskets: Service and Repair

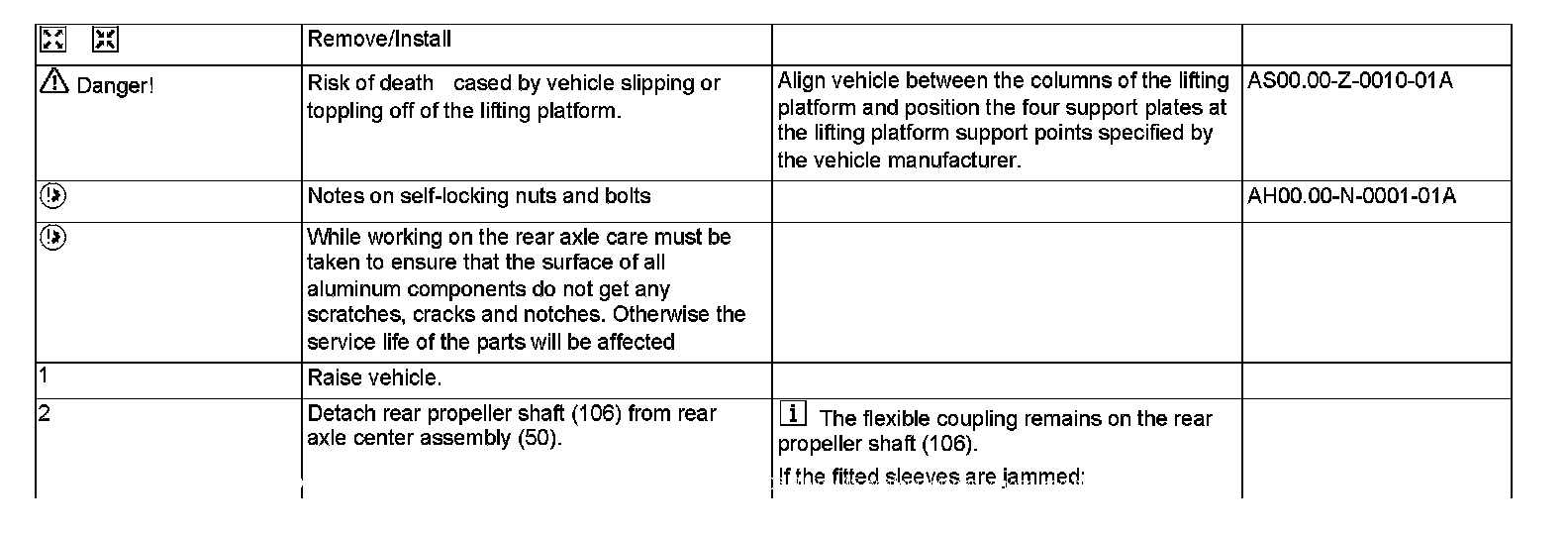

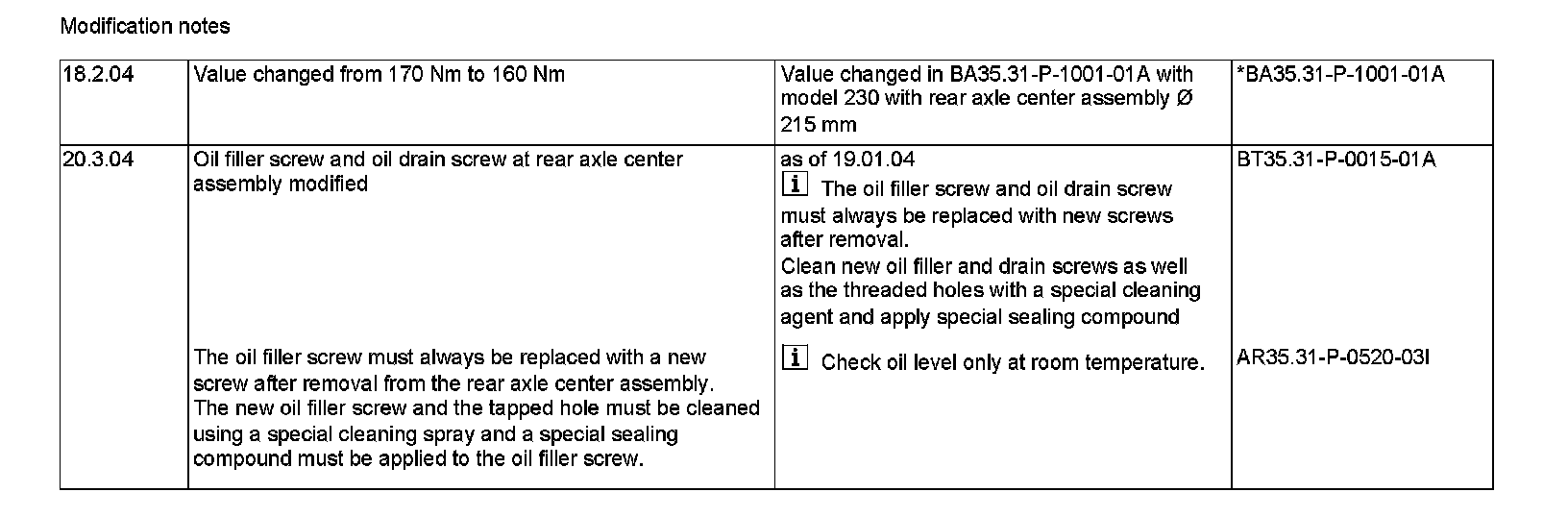

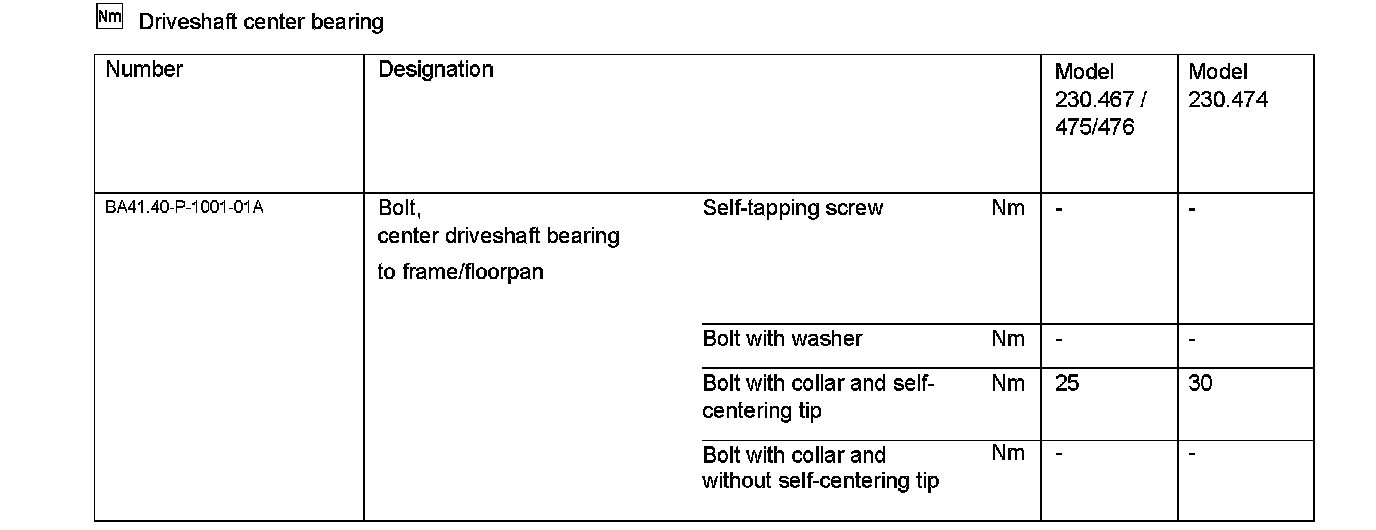

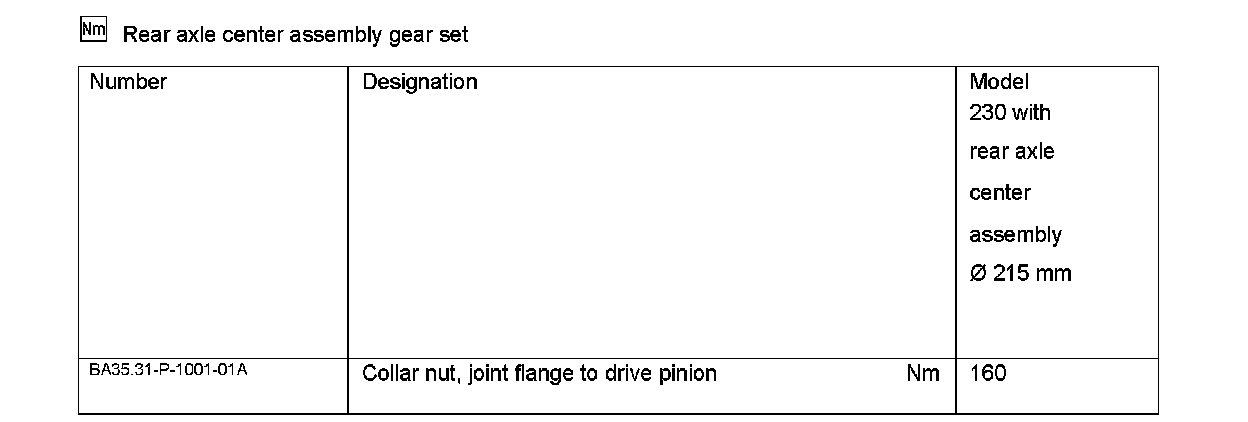

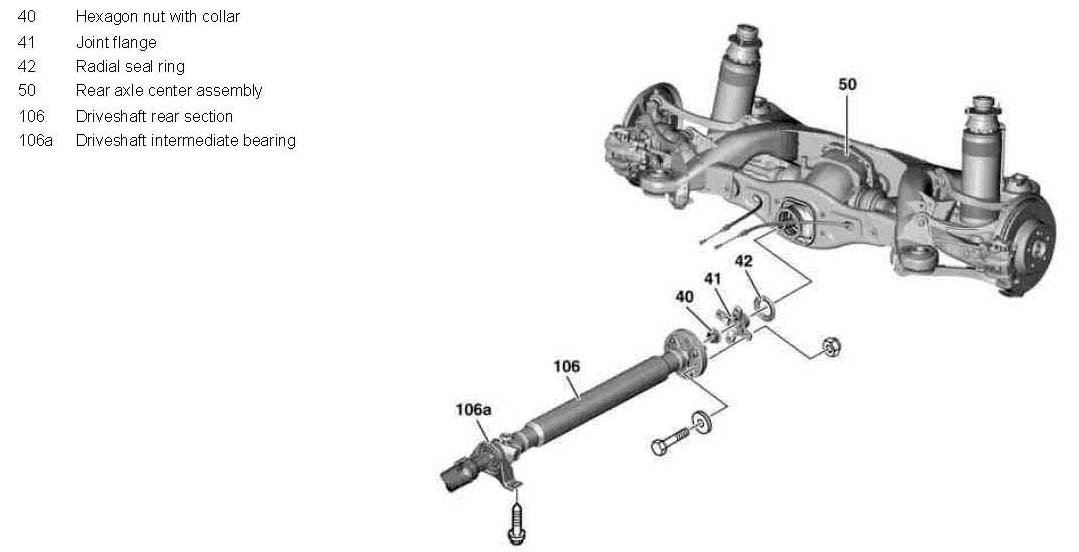

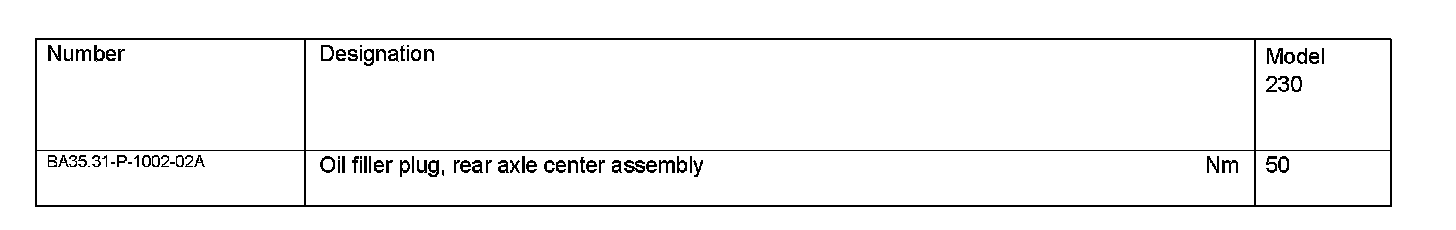

AR35.31-P-0530RA Replace Radial Seal Ring on Drive Pinion (Rear Axle Center Assembly Installed)

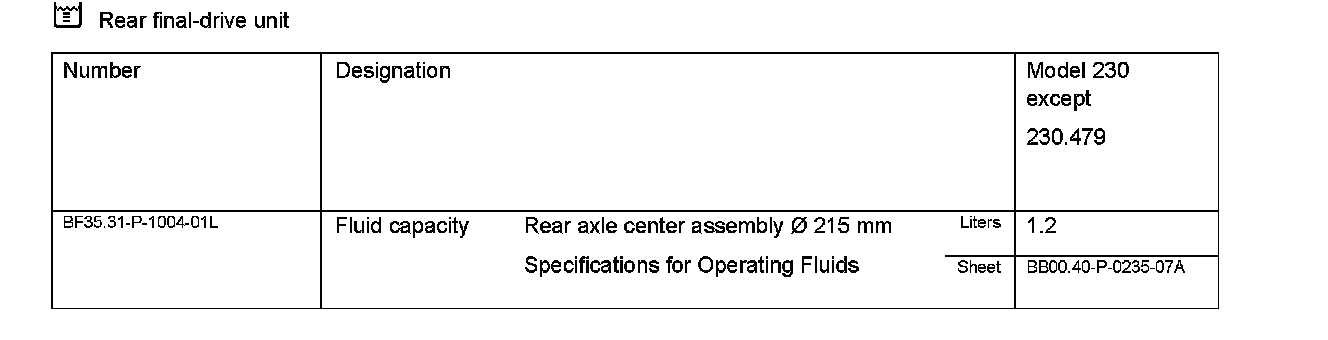

Rear axle center assembly housing:

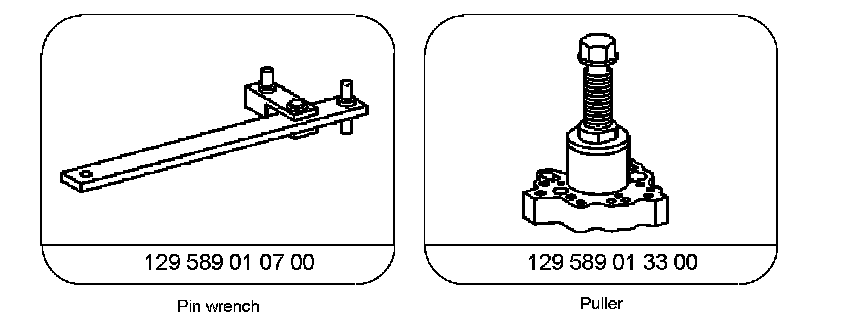

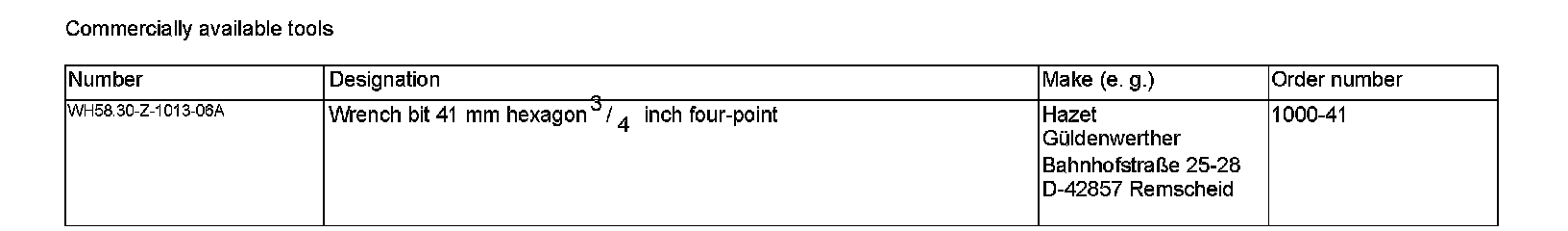

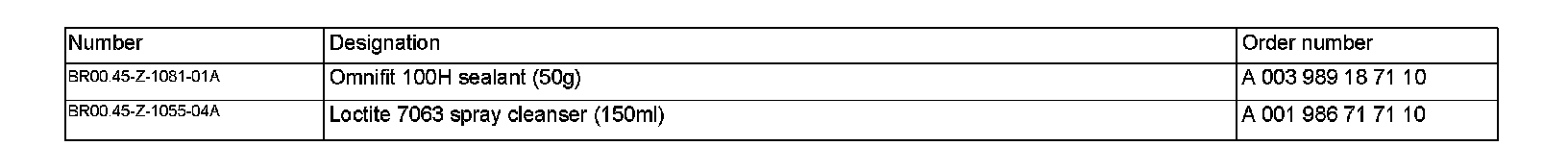

Auxiliary repair materials:
