SM27.19-P-0001B Replace Pilot Bushing at Electrohydraulic Controller Unit
SM27.19-P-0001B Replace pilot bushing at electrohydraulic controller unit
- with TRANSMISSION 722.649
Modification notes:

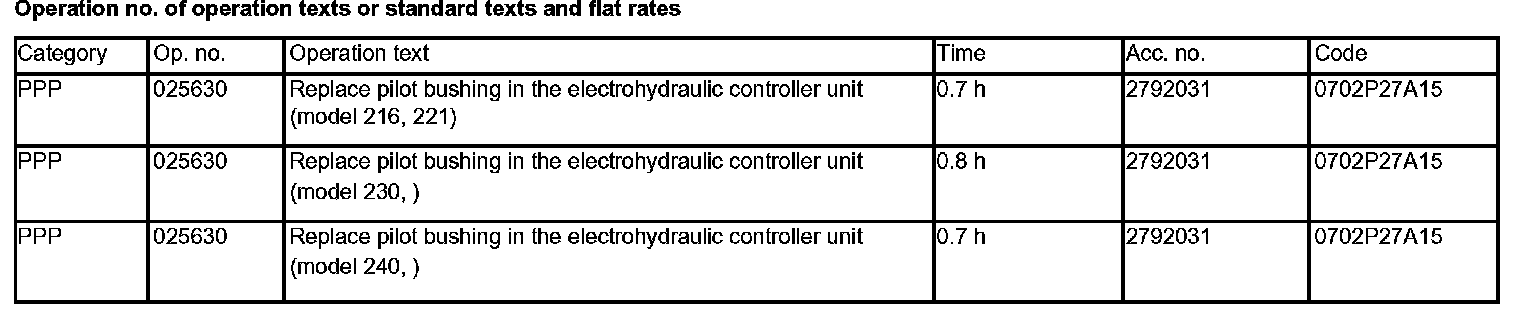

Operation no. of operation texts or standard texts and flat rates:

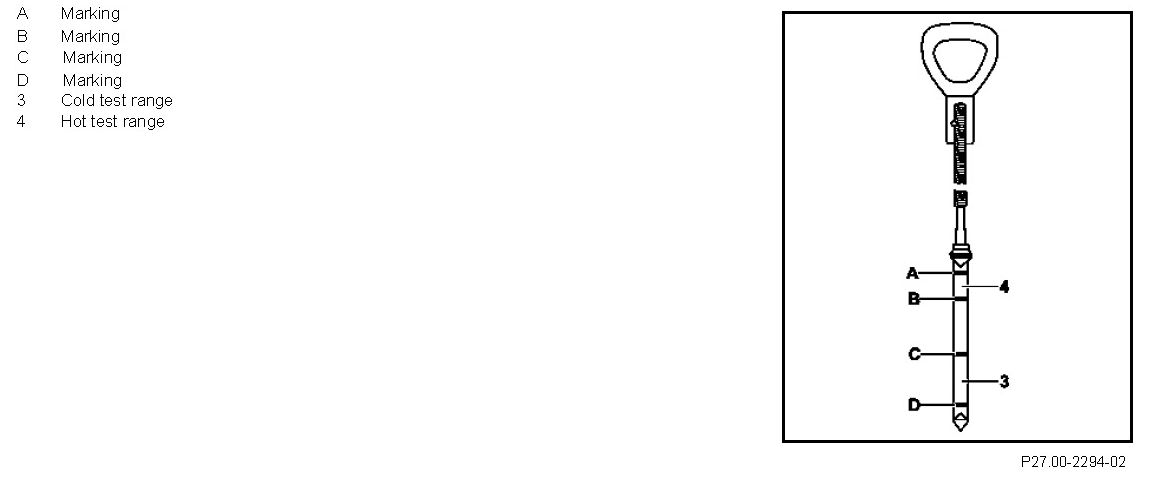

Component Identification:

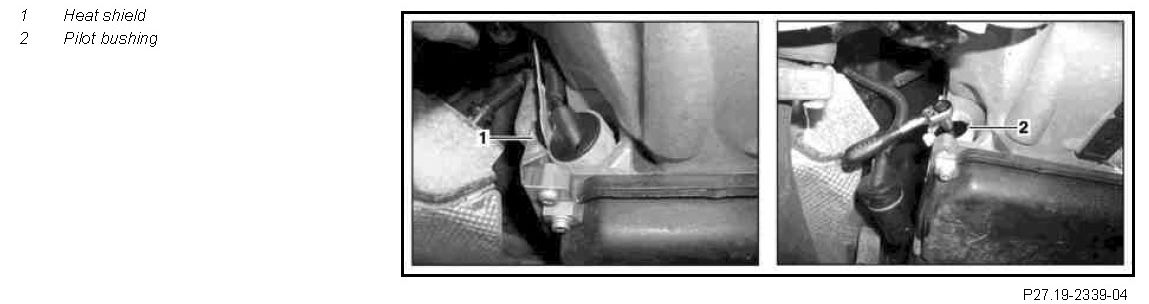

Component Identification:

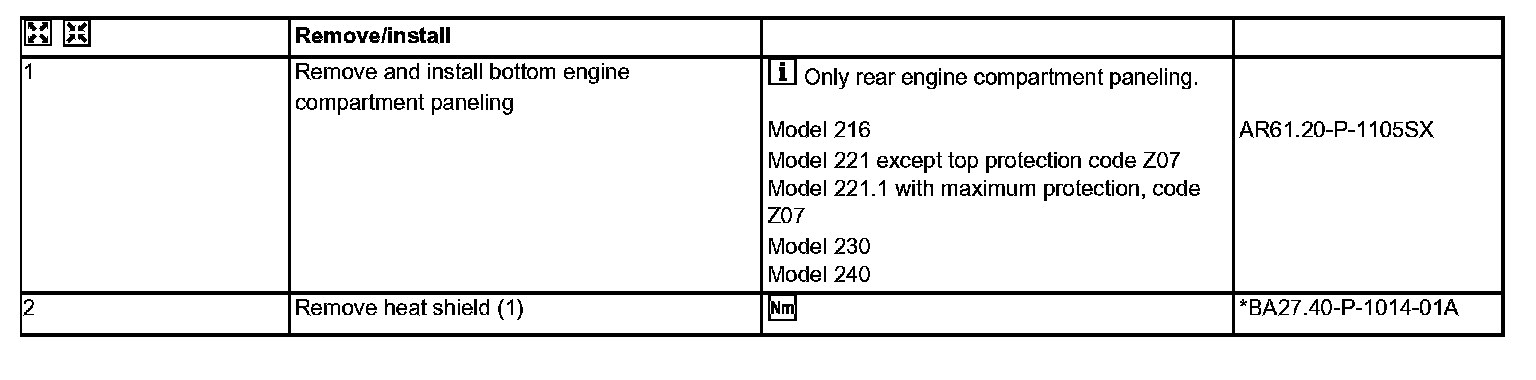

Remove/install Steps 1-2:

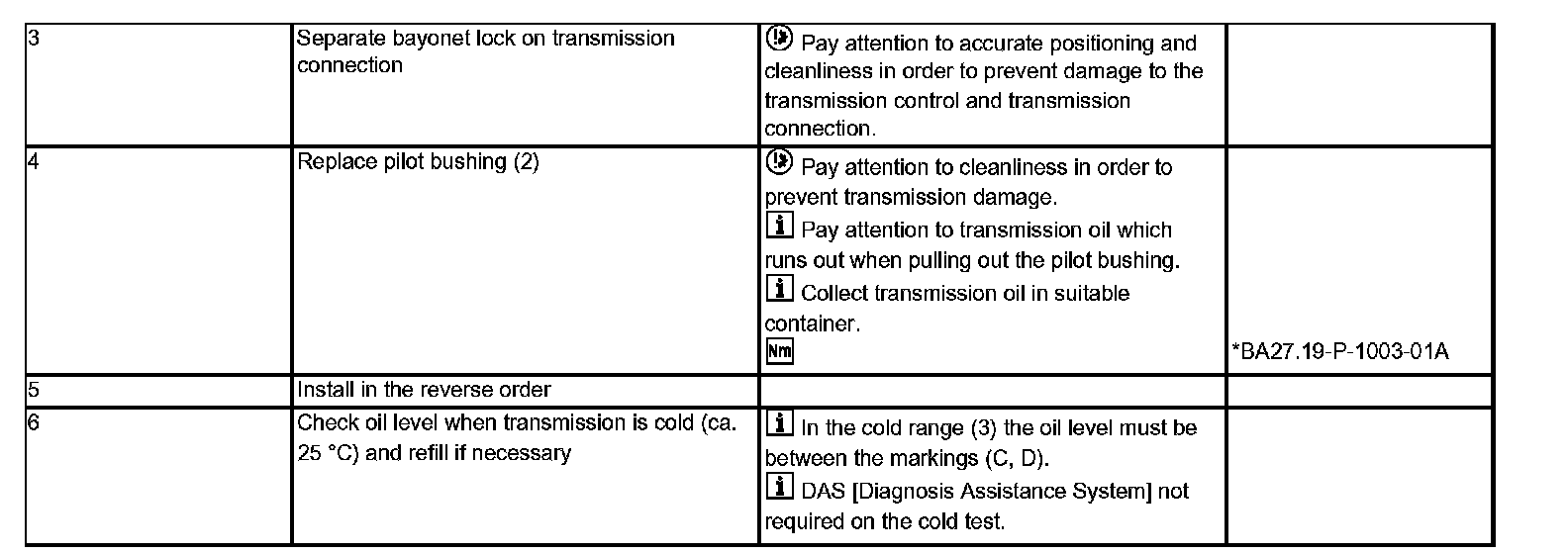

Remove/install Steps 3-6:
Electrohydraulic controller unit:

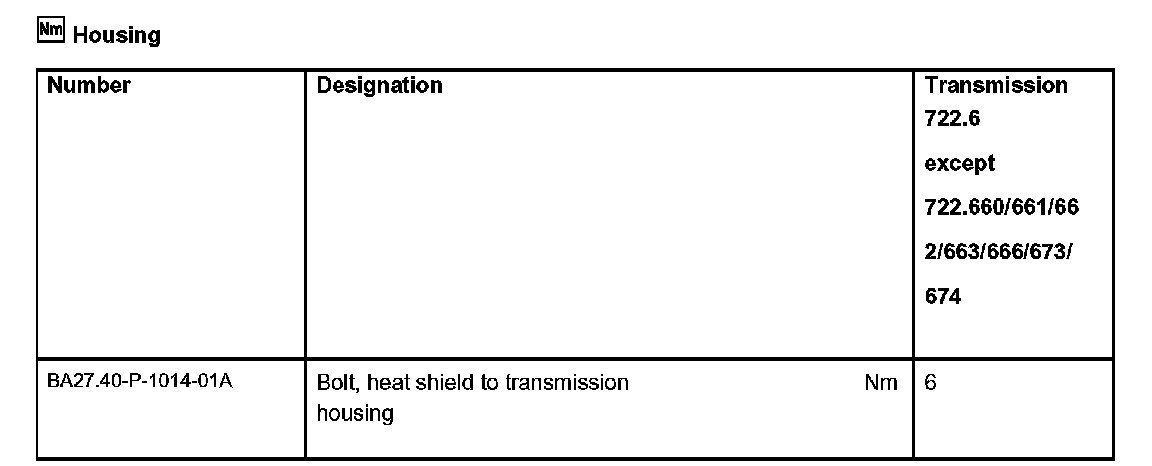

Housing:

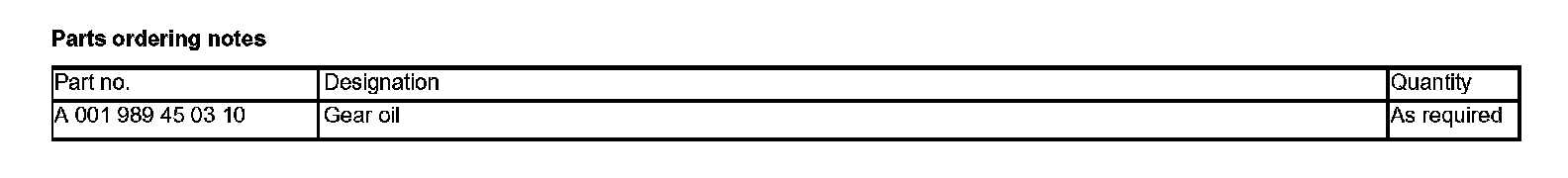

Parts ordering notes:
