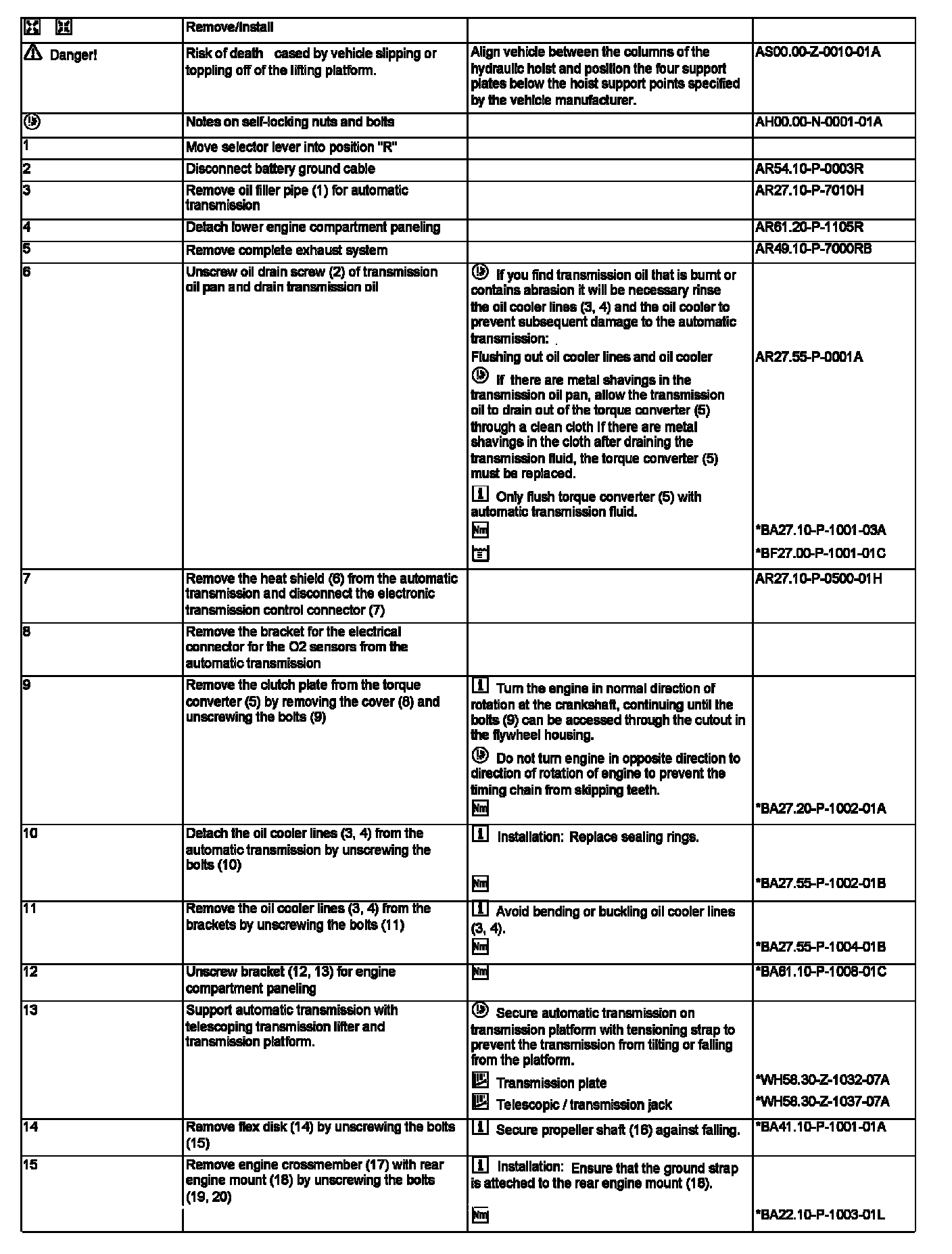

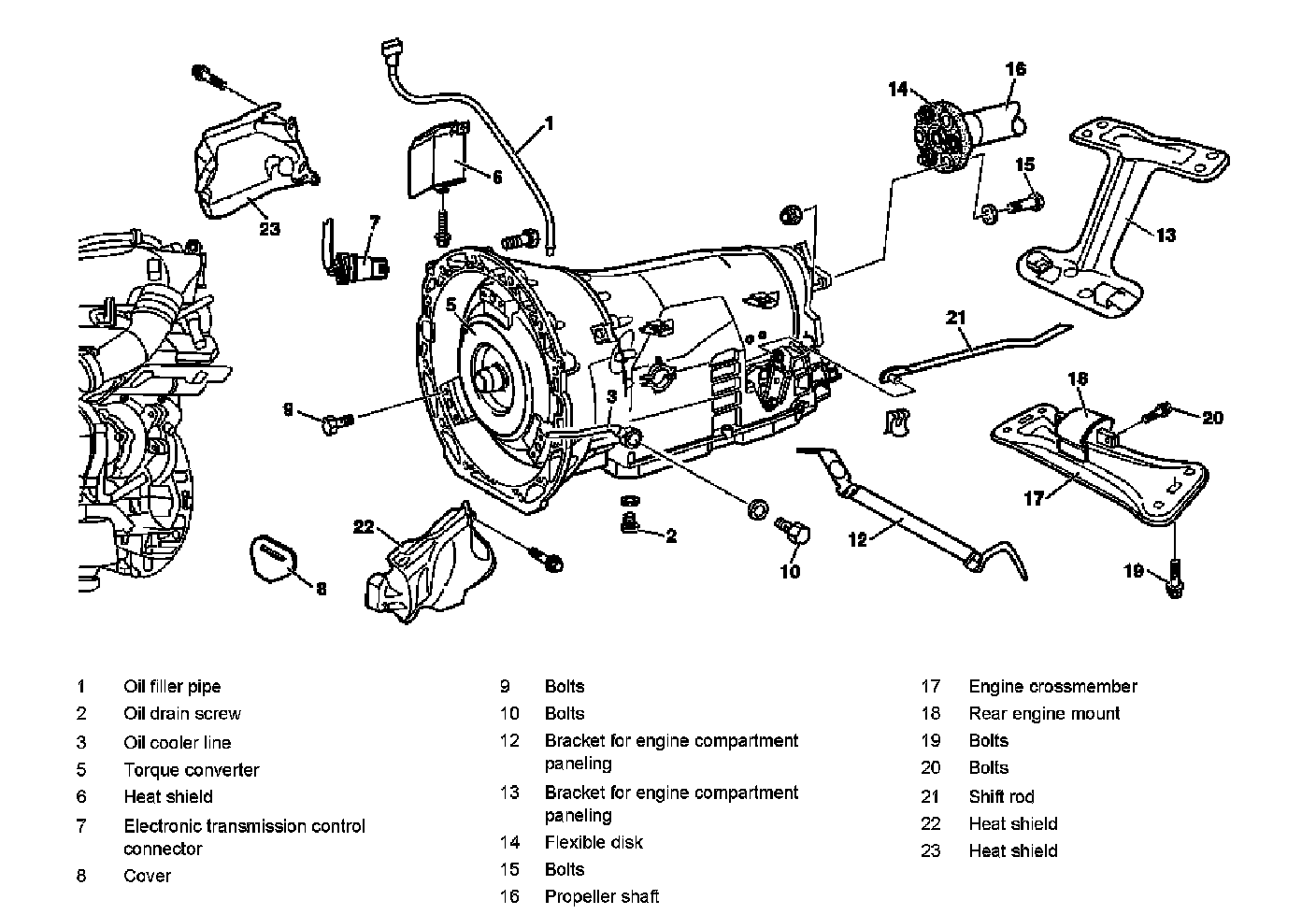

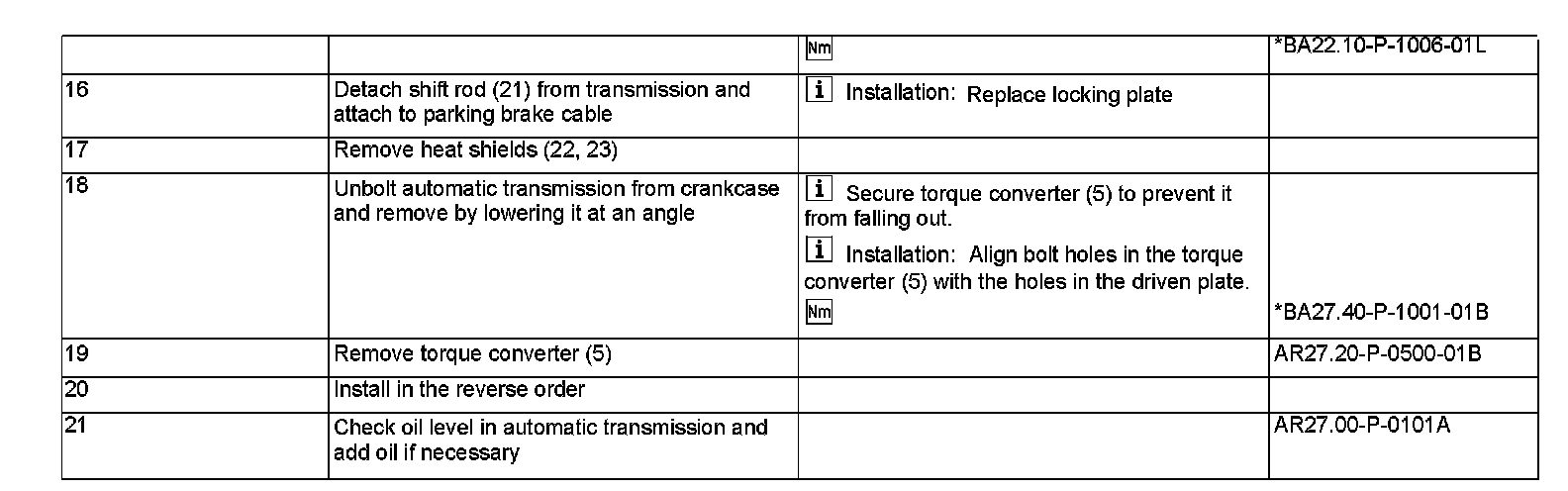

AR27.10-P-0500RC Remove/Install Transmission With Torque Converter
AR27.10-P-0500RC Remove/Install Transmission With Torque Converter
AR27.10-P-0500RC Remove/Install Transmission With Torque Converter

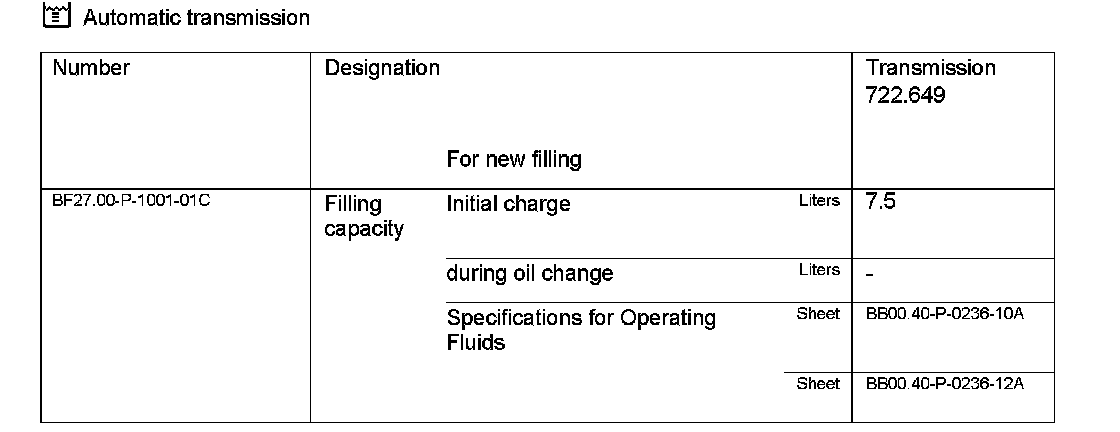

- Transmission 722.649
