GF27.60-P-5163ACM Electronic Selector Lever Module Control Unit, Component Description

GF27.60-P-5163ACM Electronic selector lever module control unit, component description
- TRANSMISSION 722.643/649
- refinement package
- as of model year 09

Component Identification:

Location

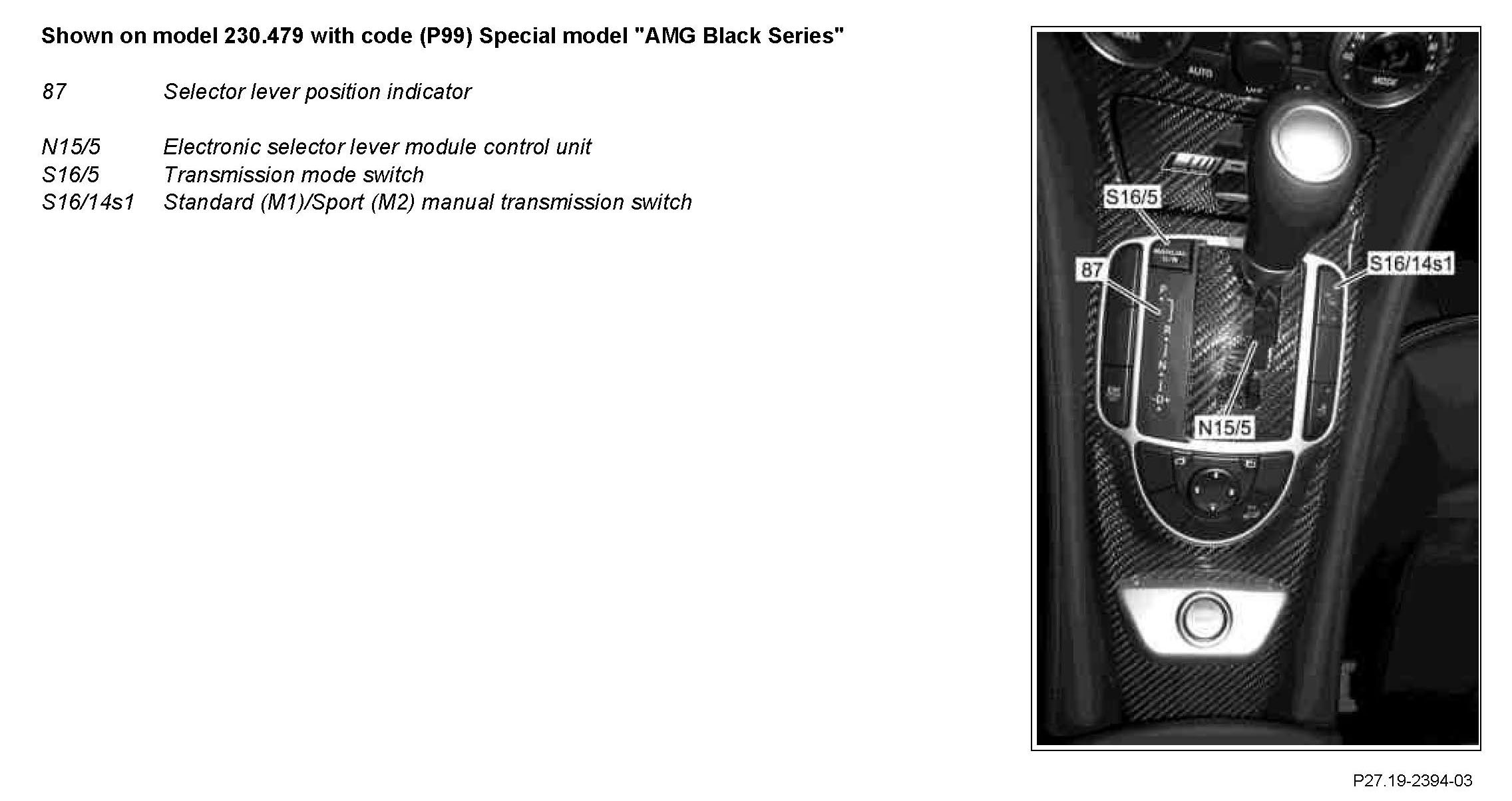

The electronic selector lever module control unit is located under the center console between the two front seats.

Task

General
The electronic selector lever module control unit records the positions of the selector lever (non-contact) using inductive sensors.
The selector lever positions and touch shifts carried out are detected in a non-contact manner by means of optoelectronic switches. A photoelectric barrier is closed or interrupted each time the position of the selector lever is changed.

Basic functions
- Read in transmission mode switch signals
- Transmission of selector lever positions "P, R, N, D" and touch shifts "1, 2, 3, 4, 5"

Shift-lock, function
- Park pawl
- Electronic ignition switch control unit lock (N73)
- Selector lever position "P" lock
- Shift lock override (Manual unlocking, selector lever position "P")

Flash programming
The electronic selector lever module control unit is flashable. The software for the electronic selector lever module control unit can be renewed or updated using Star Diagnosis.

Controller Area Network (data bus/CAN bus) (CAN)
The electronic selector lever module control unit is connected via the engine compartment CAN (CAN C) to the vehicle's CAN network, and exchanges data with other control units.

Input and output signals
The following input signals are evaluated by the electronic selector lever module control unit and the corresponding output signals issued:
^ Direct input signals
^ Direct output signals
^ CAN input signals
^ CAN output signals

Direct input signals
- Circuit 30g
- Circuit 31
- Selector lever position
- Status of transmission mode switch
- Push button ±

Direct output signals
- Reverse/parking lock valve (Y66/1)
- Function illumination for selector lever position "P, R, N, D" (with code (494) USA version)
- Switch and controls illumination "circuit 58d" for gear indicator

CAN input signals
Instrument cluster (A1)
- Circuit 58 dimmed

ESP, SPS [PML] and BAS control unit (N47-5)
- Wheel speed signals
- Braking torque

EIS control unit (N73)
- Circuit 50 signal
- Circuit -15 signal
- Stop lamp actuation feedback
- Drive authorization system communication, stage 3 (DAS 3)

Steering column tube module (N80)
- Signal for MINUS steering wheel gear shifter (S110/1) (with code (428) Steering wheel shift paddles)
- Signal for PLUS steering wheel gear shifter (S111/1) (with code (428) Steering wheel shift paddles)

Central gateway control unit (N93)
- Diagnosis request

CAN output signals
Instrument cluster
- Selector lever position for right multifunction display (A1p15)

ME-SFI [ME] control unit (N3/10)
- Selector lever position

EIS control unit
- Selector lever position for backup light actuation
- Enable request (DAS 3)

ETC [EGS] control unit (N15/3)
- Selector lever position
- Transmission mode selection

Central gateway control unit
- Diagnostic data
