Torque Rod: Service and Repair
AR35.20-P-0113R Remove/install thrust arm

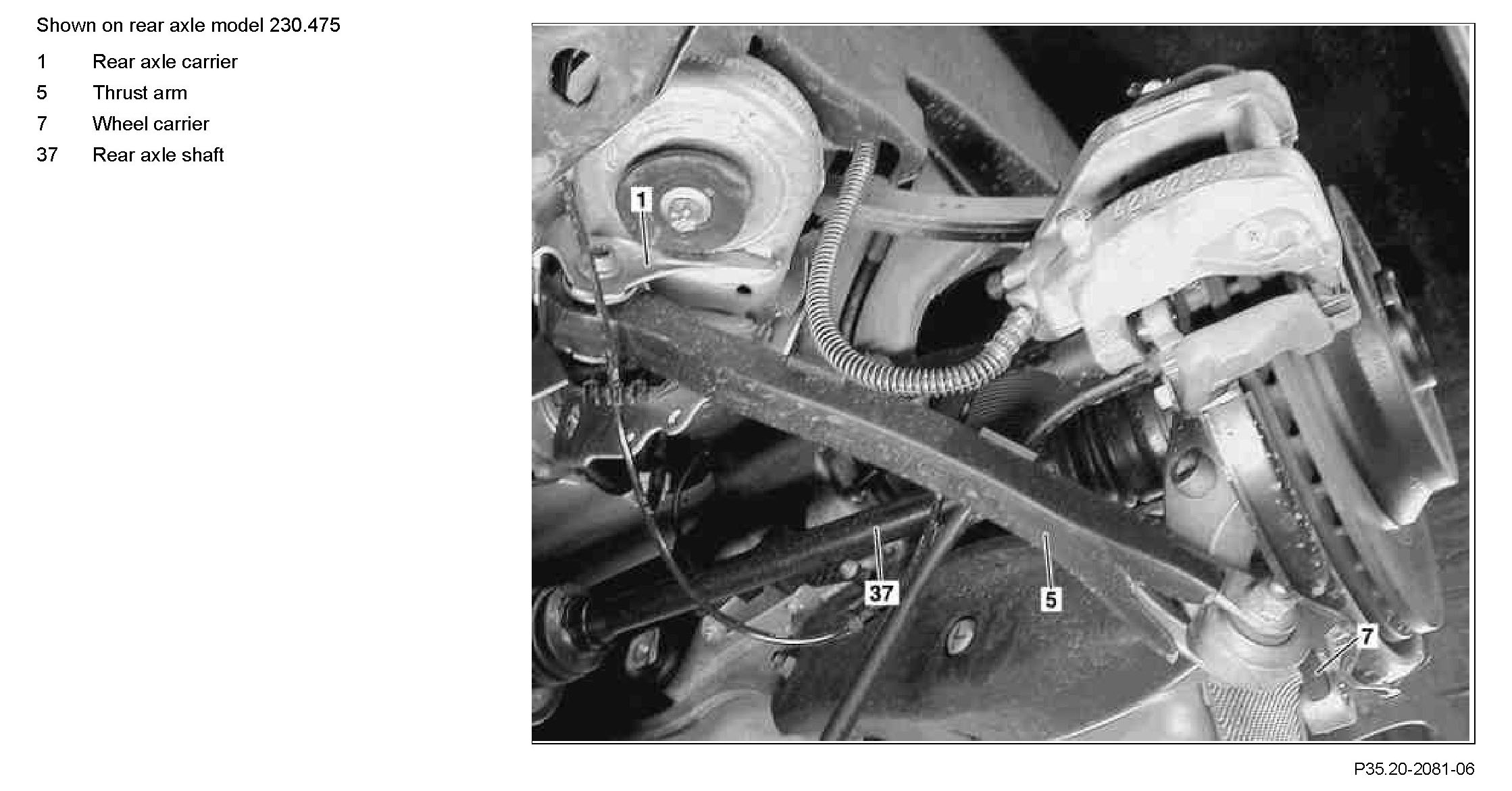

Component Identification:

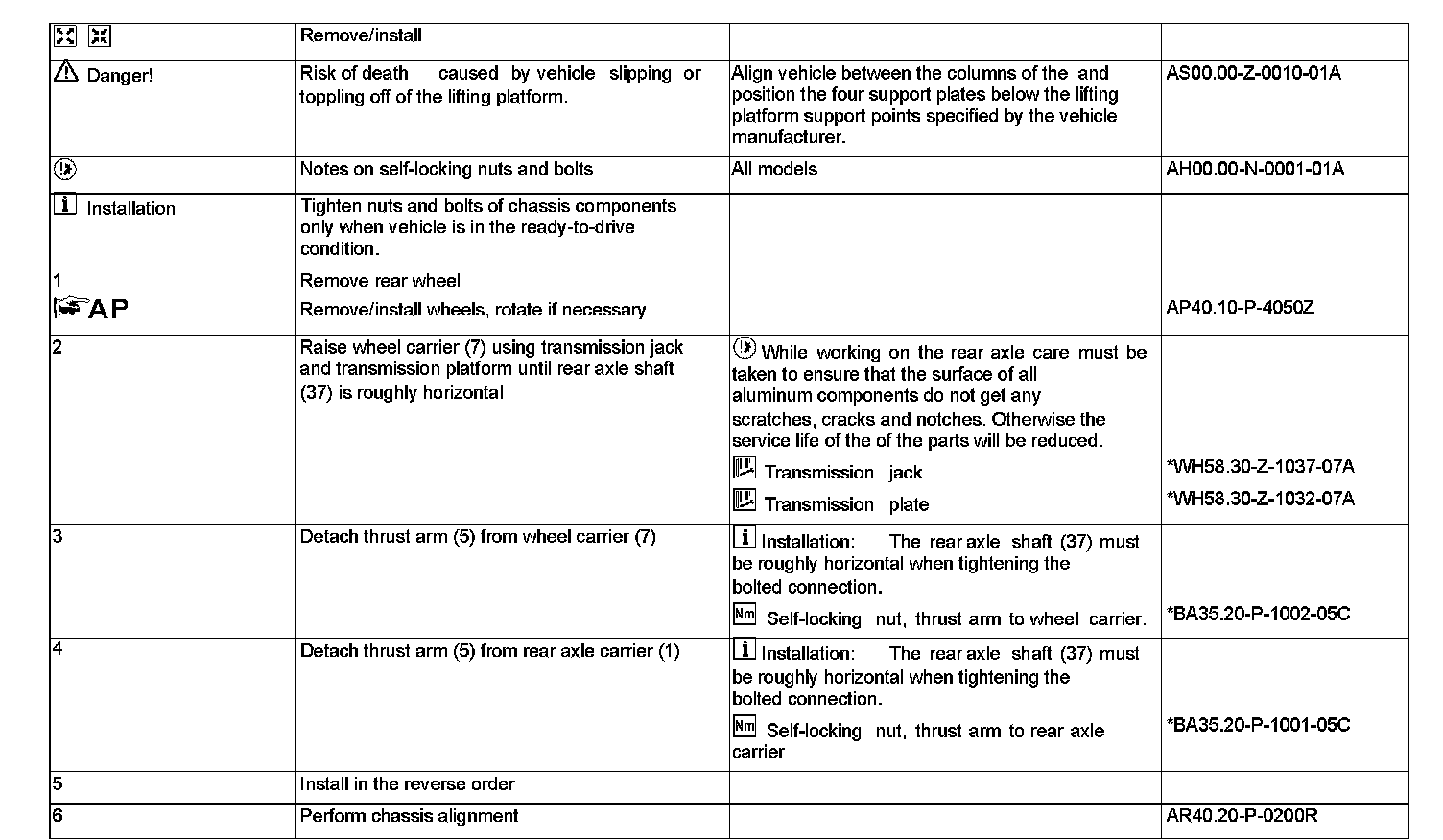

Steps 1 - 6:
Torque Strut:
Torque Strut:

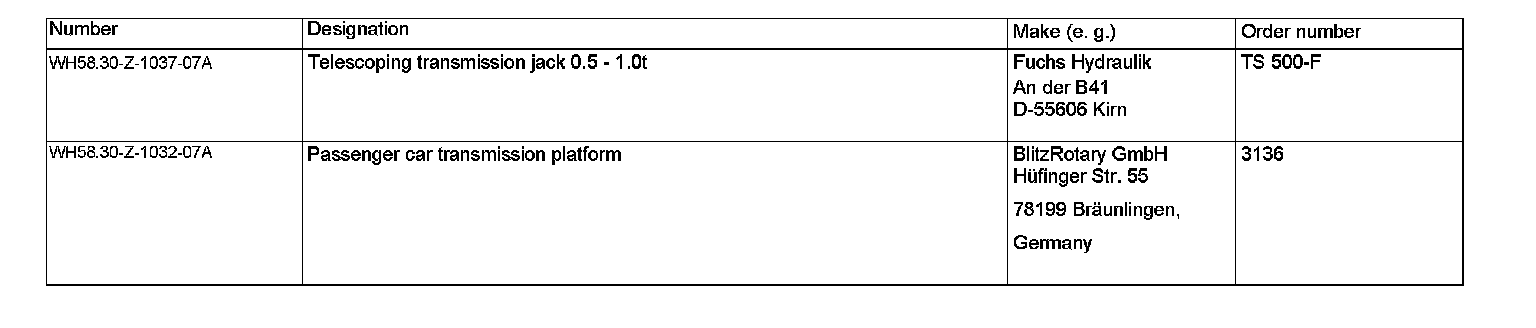

Commercially Available Tools:
