AR32.25-P-1017RBS Remove/Install the Suspension Strut



AR32.25-P-1017RBS Remove/install the suspension strut
- with CODE (P99) Special model "AMG Black Series"

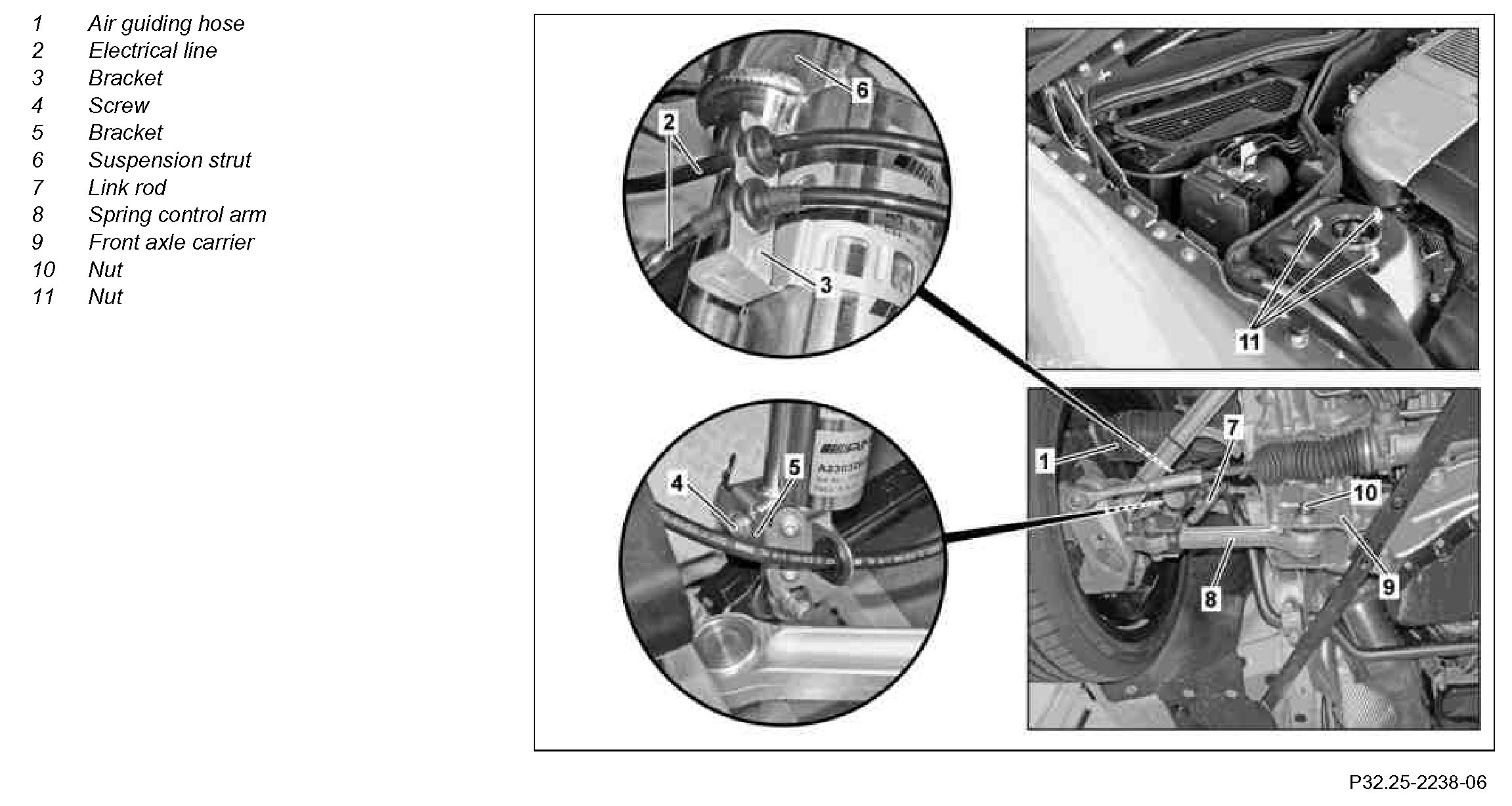

Component Identification:

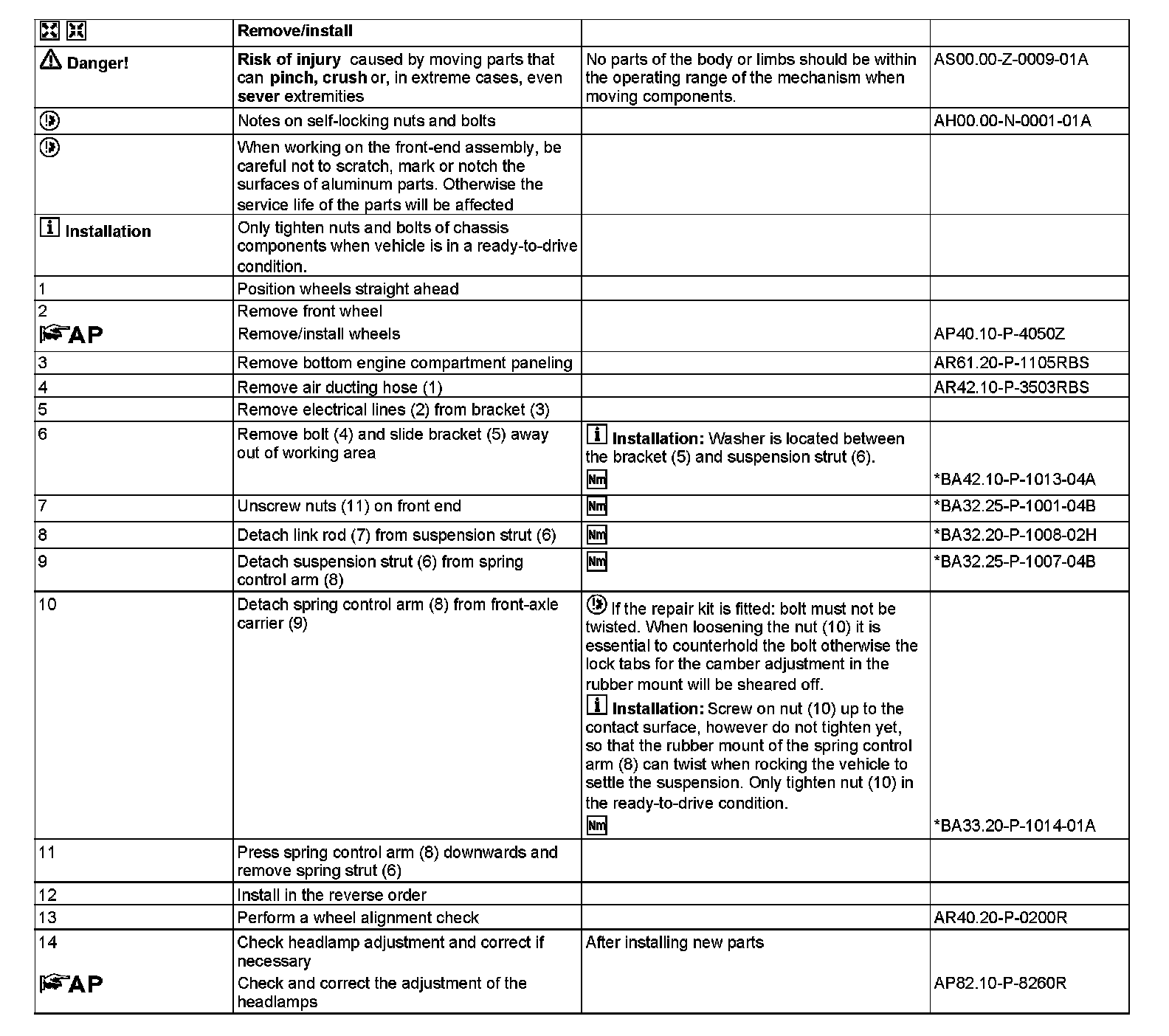

Steps 1-14:




Suspension struts:

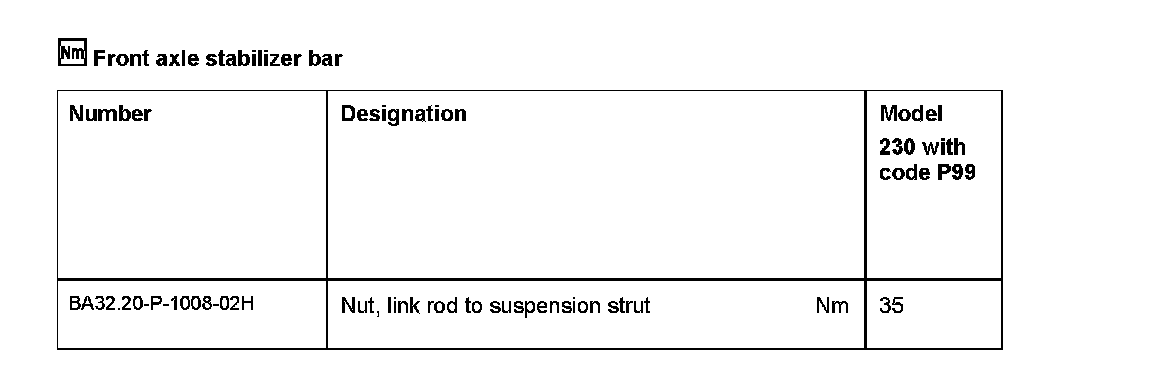

Front axle stabilizer bar:

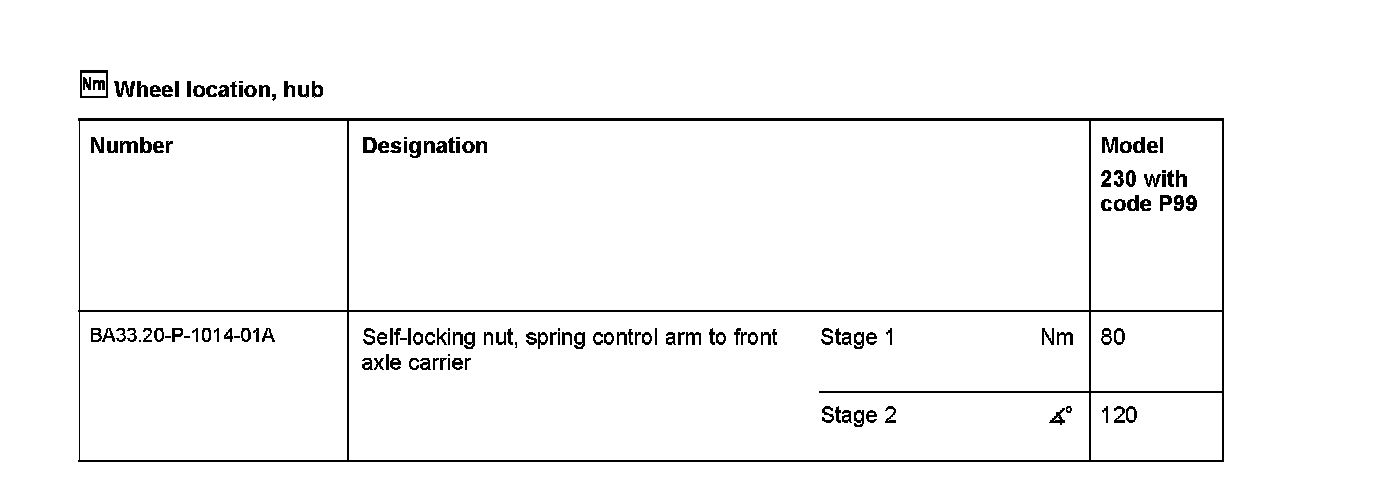

Wheel location, hub:

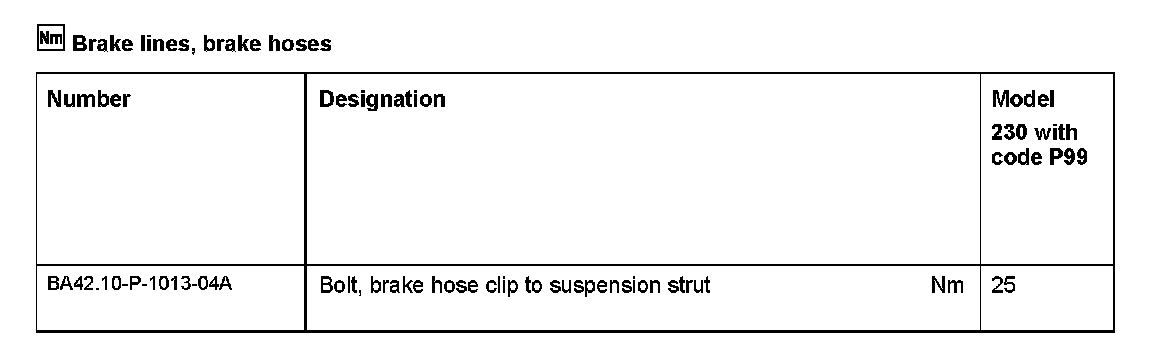

Brake lines, brake hoses:
