AR32.25-P-1016RBS Remove/Install Rear Suspension Strut



AR32.25-P-1016RBS Remove/install rear suspension strut
- with CODE (P99) Special model "AMG Black Series"


Component Identification:

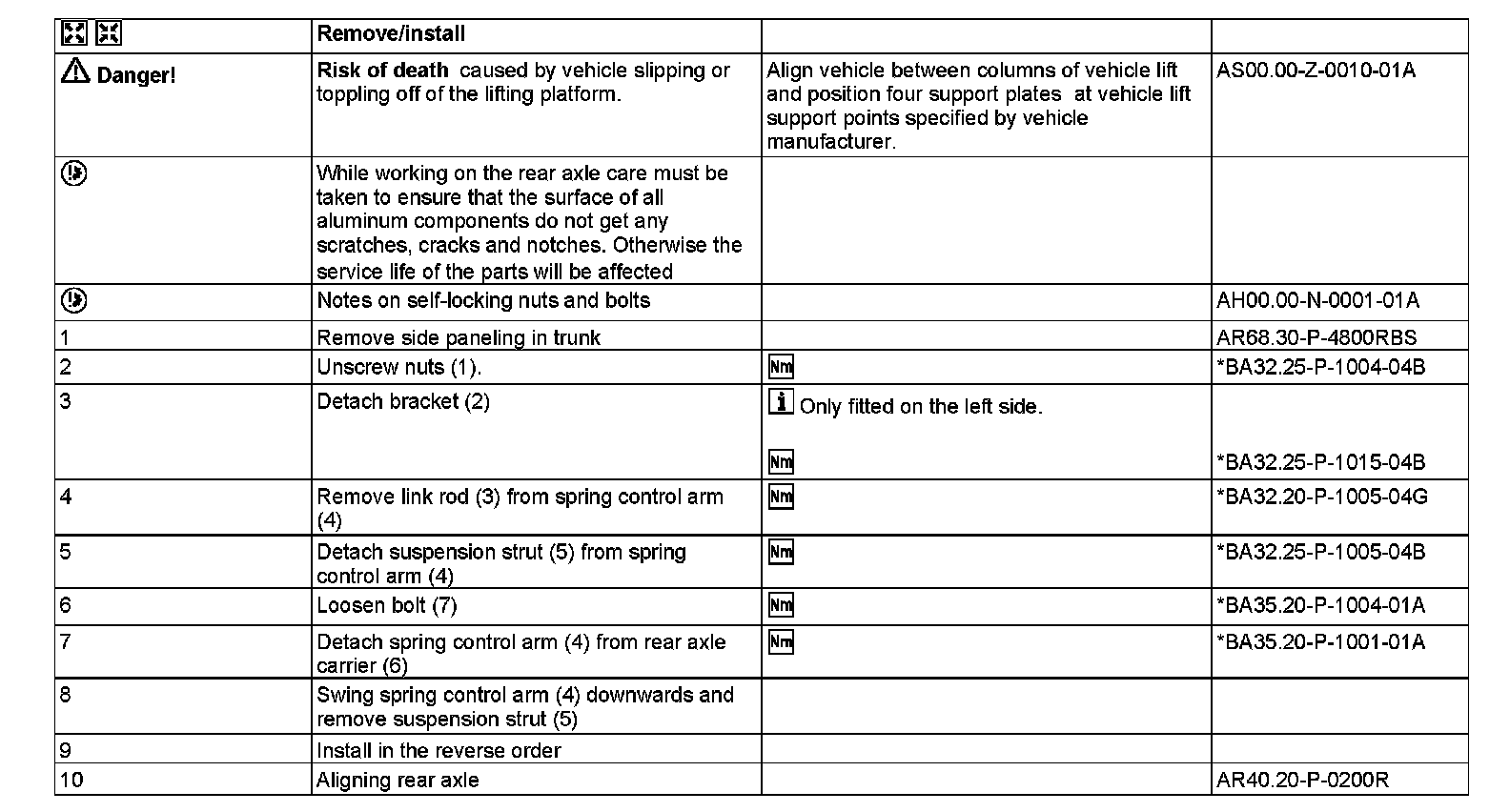

Steps 1-10:




Rear axle stabilizer bar:

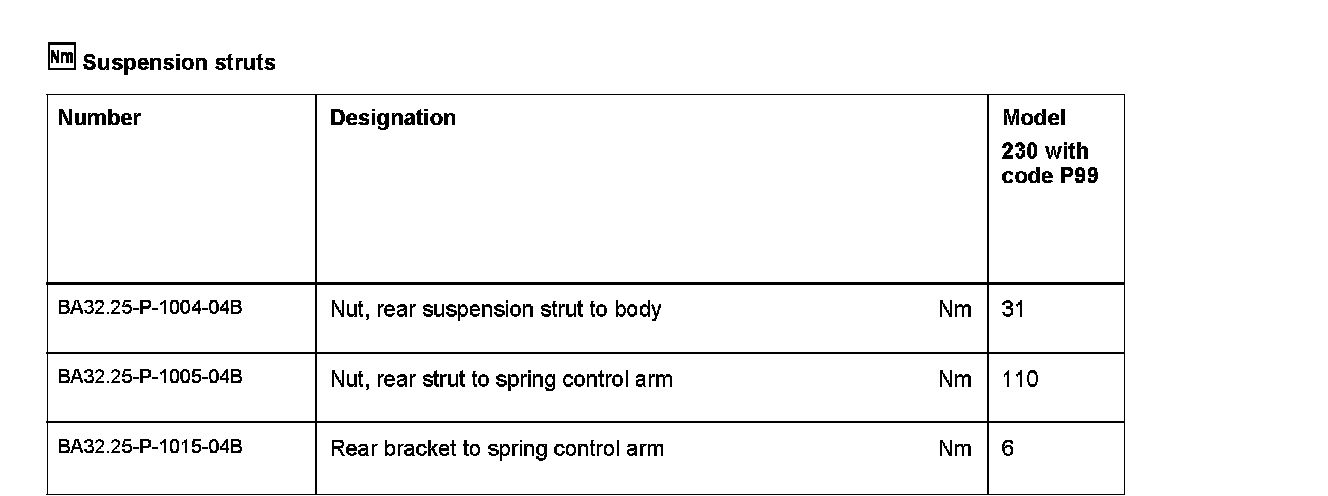

Suspensions struts:

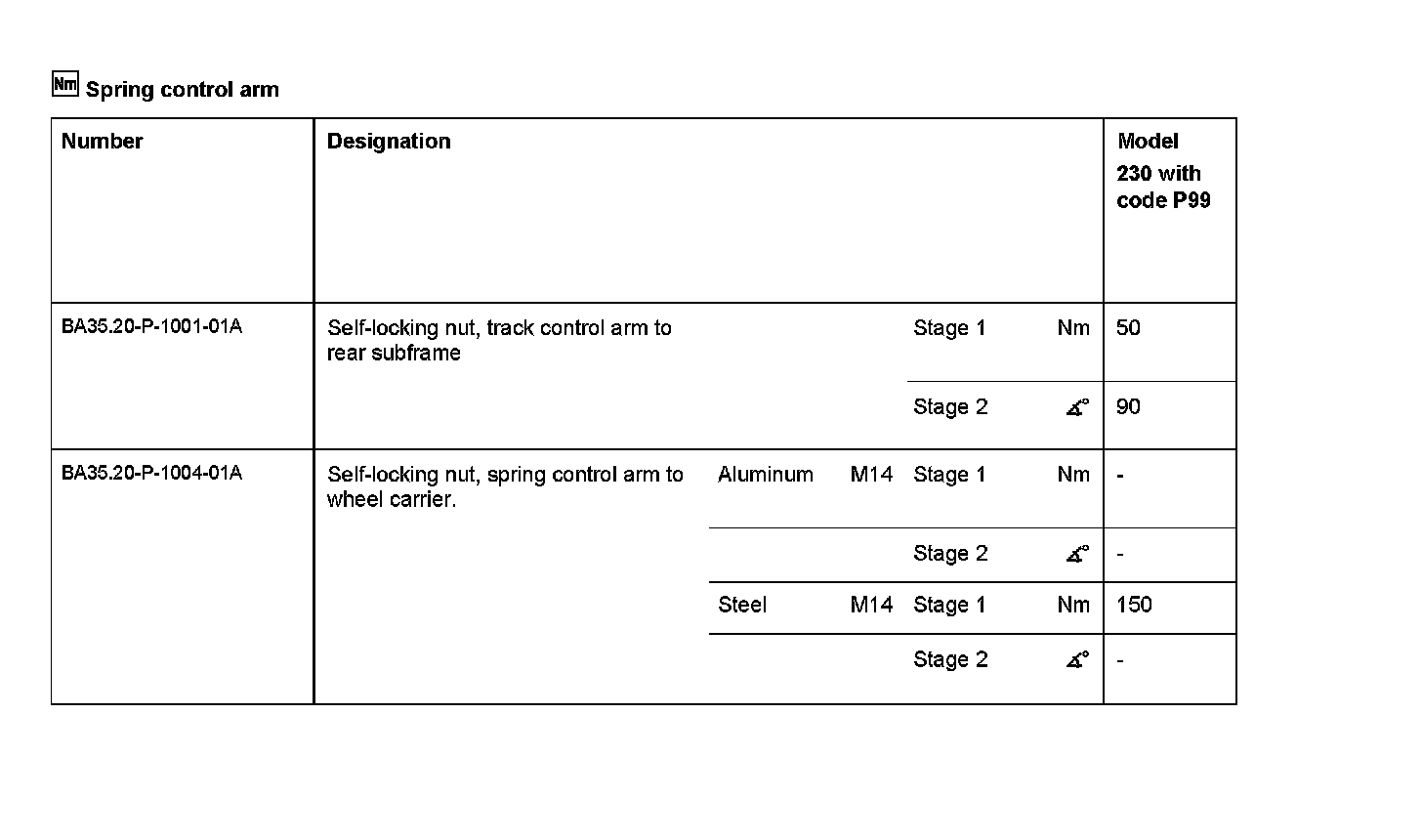

Spring control arm:
