Suspension Strut / Shock Absorber: Adjustments
AR32.25-P-0050QBS Adjust chassis
-
with CODE (P98) Black Series

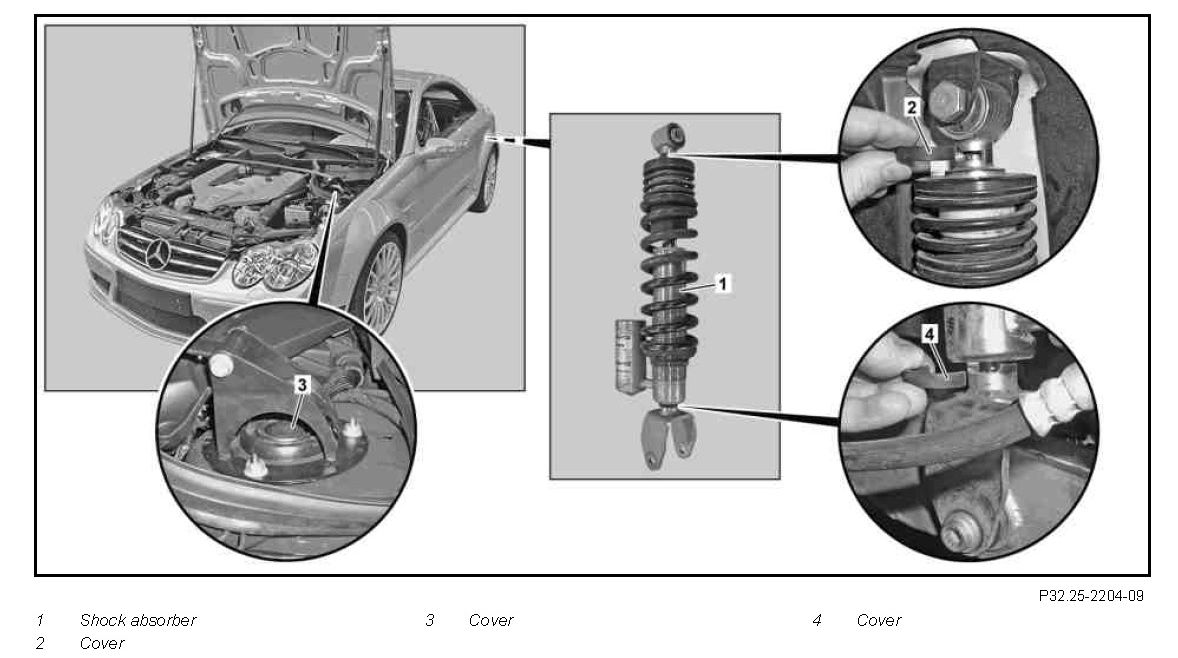

Component Identification:

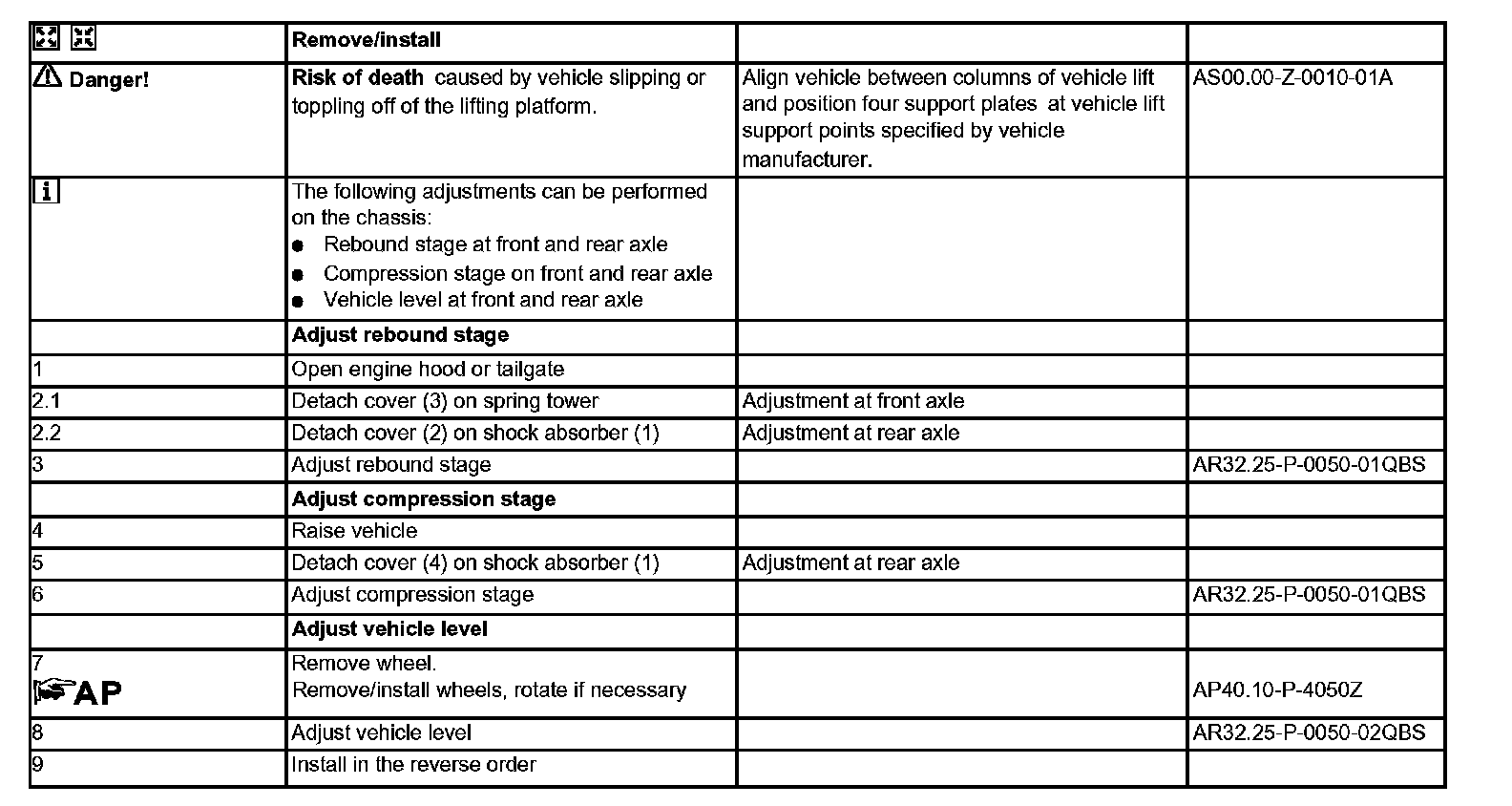

Remove/install Steps 1-9:
