AR32.50-P-0011RX Remove/Install Rear Axle Pressure Reservoir



AR32.50-P-0011RX Remove/install rear axle pressure reservoir

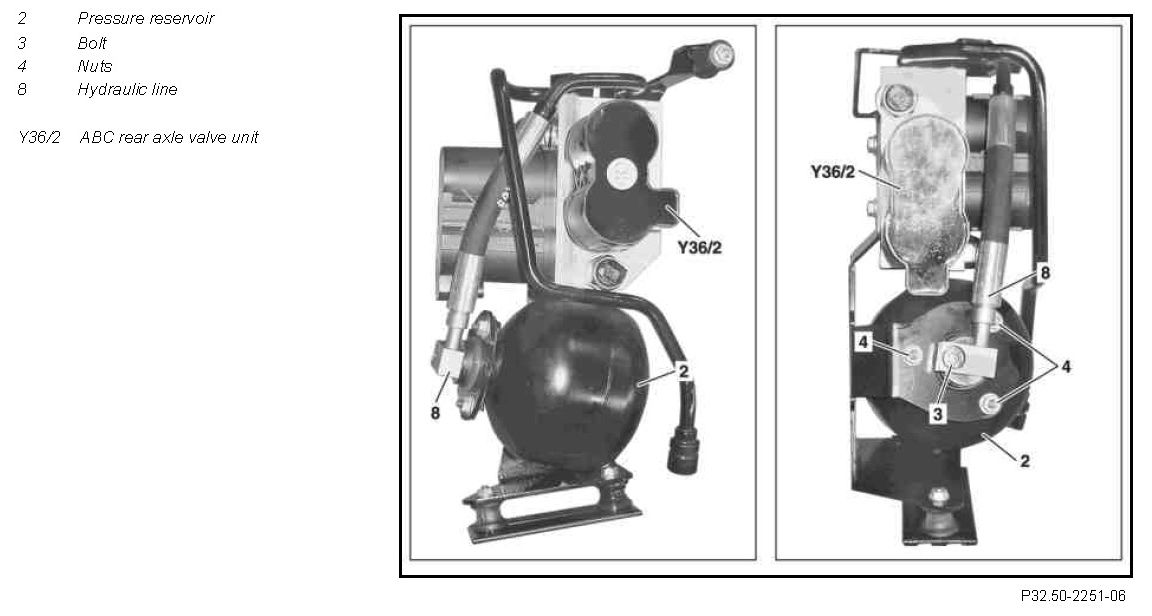

Component Identification:

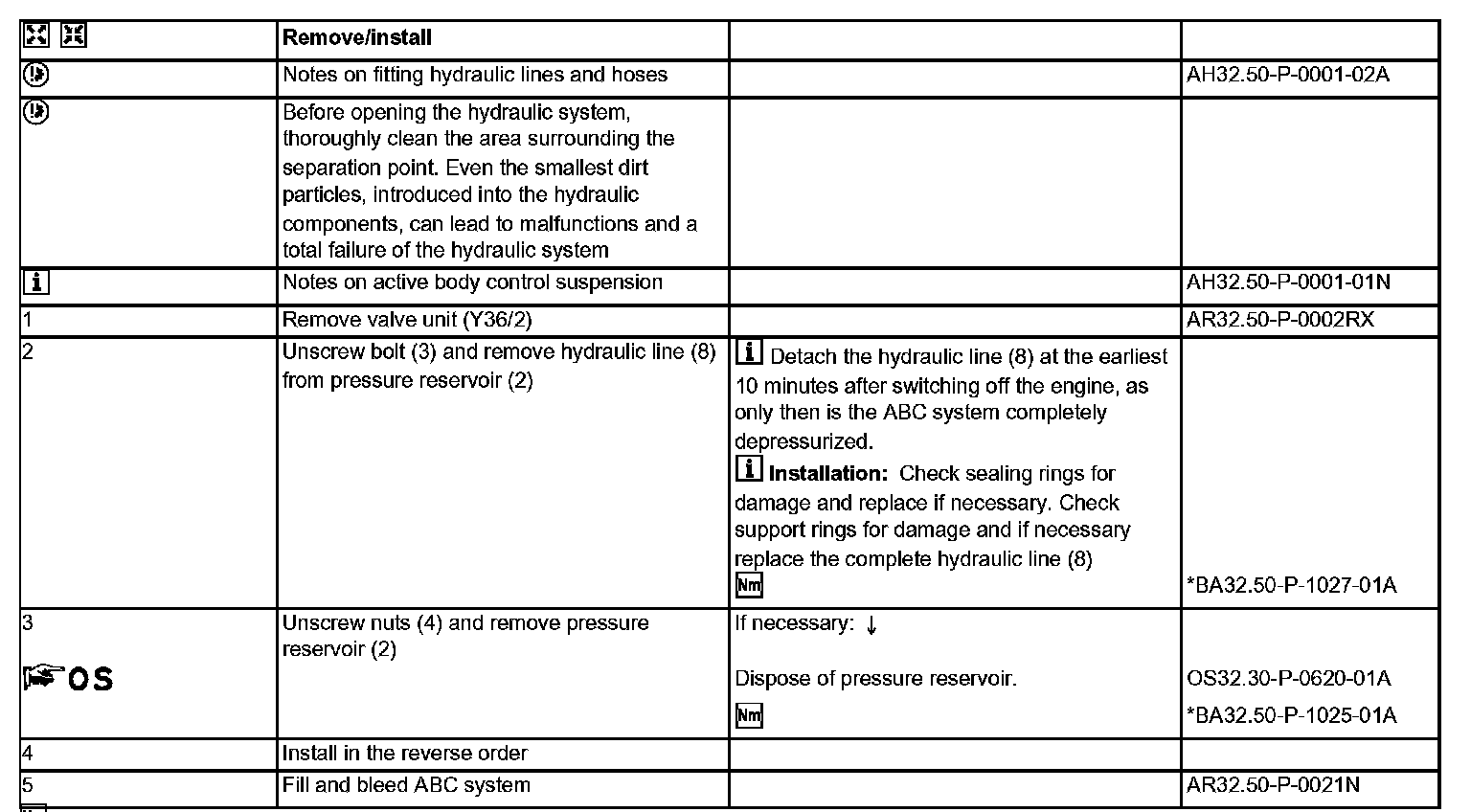

Remove/install Steps 1-5:




Active Body Control suspension:




Active Body Control suspension:
