GF32.50-P-4625RI ABC Oil Reservoir, Component Description



GF32.50-P-4625RI ABC oil reservoir, component description
- with CODE (487) Active body control (ABC)
- refinement package
- as of model year 09

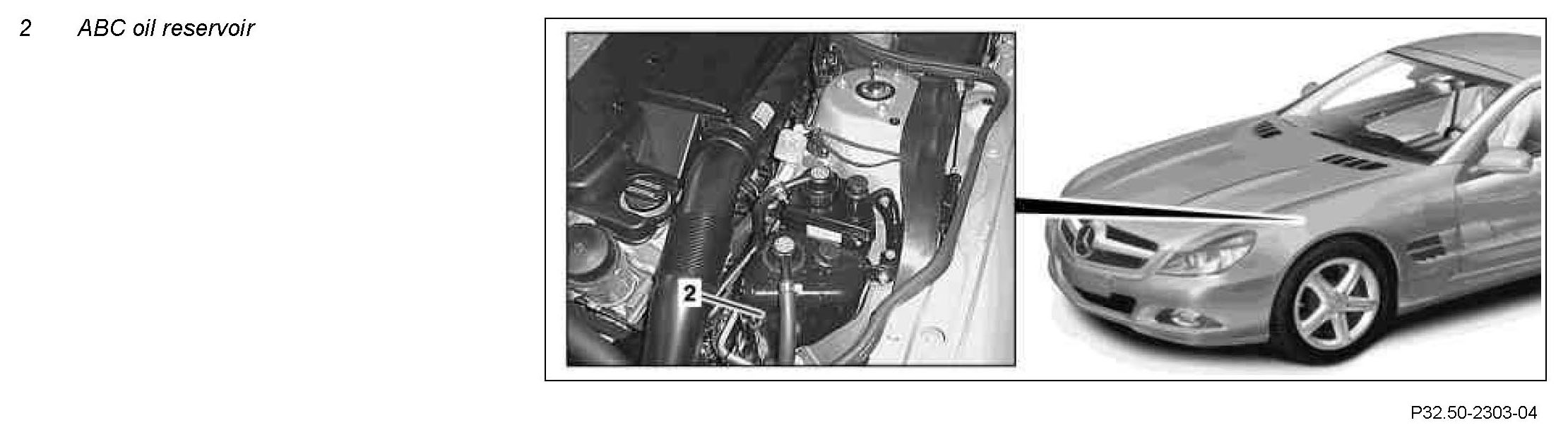

Component Identification:





Location
The ABC oil reservoir is located in the engine compartment on the left wheel well.

Task
The ABC oil reservoir balances out the difference in oil volume between the highest and lowest level. It is also used to store the oil from the pressure reservoirs when the engine is switched off.

Design
The ABC oil reservoir is made of plastic and is equipped with an oil dipstick and return filter with overpressure bypass.
