GF32.50-P-4624RI ABC Lateral Acceleration Sensor, Component Description

GF32.50-P-4624RI ABC lateral acceleration sensor, component description
- with CODE (487) Active body control (ABC)
- refinement package
- as of model year 09

Component Identification:

Location

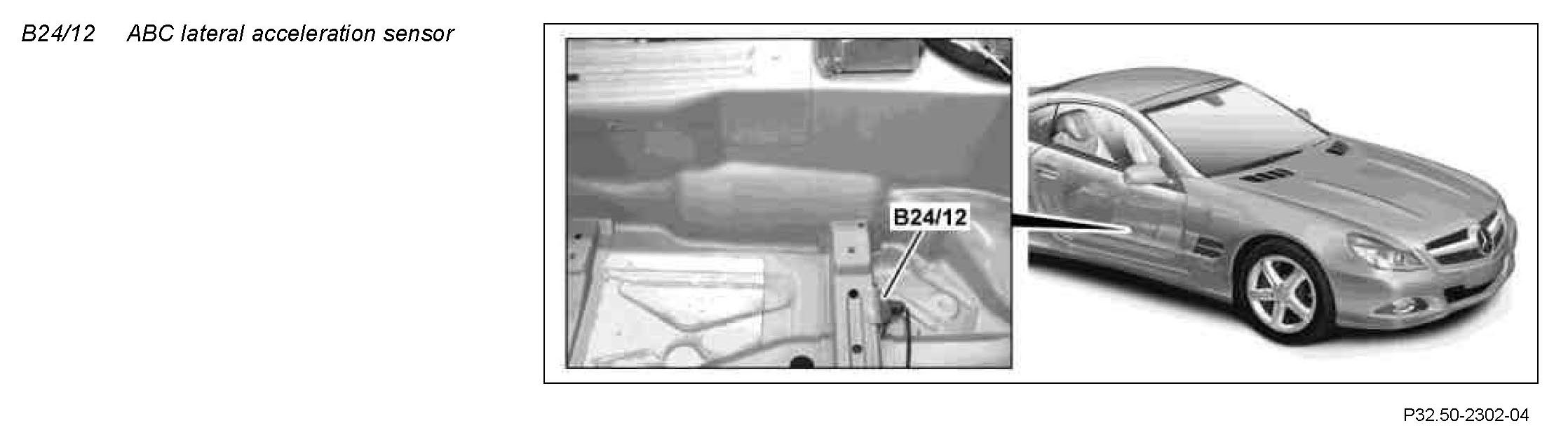

The ABC lateral acceleration sensor is located in the front passenger footwell on the front cross strut.

Task
Using the ABC lateral acceleration sensor, the ABC control unit (N51/2) calculates the lateral dynamics and lateral acceleration which is acting on the vehicle.

This produces a disturbance signal insertion for roll angle compensation.
