GF32.50-P-4221RI ABC Central Reservoir, Component Description

GF32.50-P-4221RI ABC central reservoir, component description
- with CODE (487) Active body control (ABC)
- refinement package
- as of model year 09

Component Identification:

Location

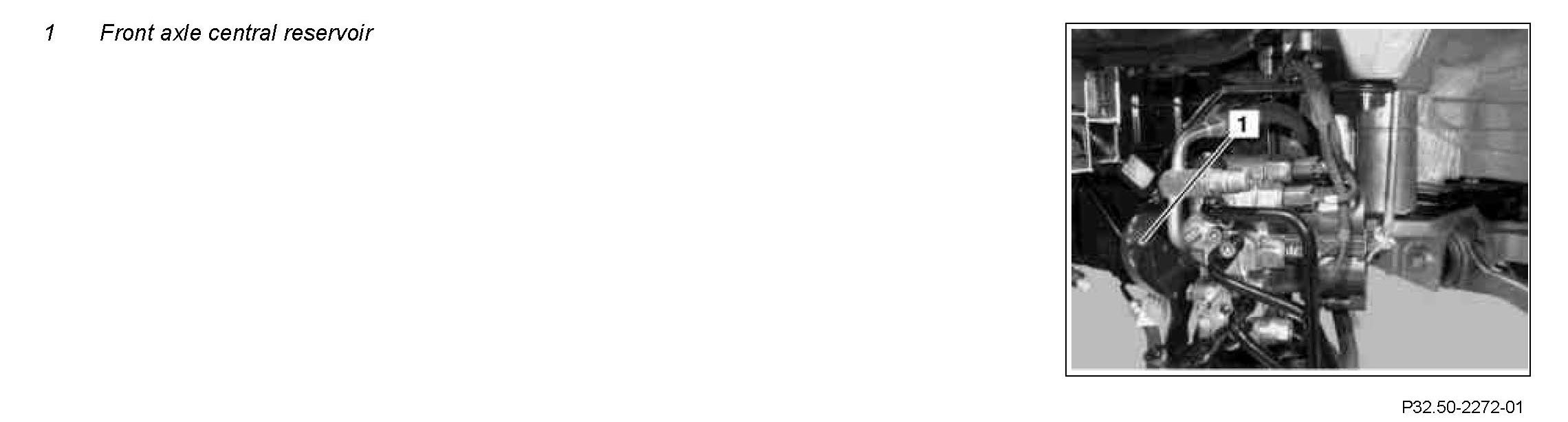

The front axle central reservoir is located on the ABC front axle valve unit (Y36/1).

Component Identification:

Location

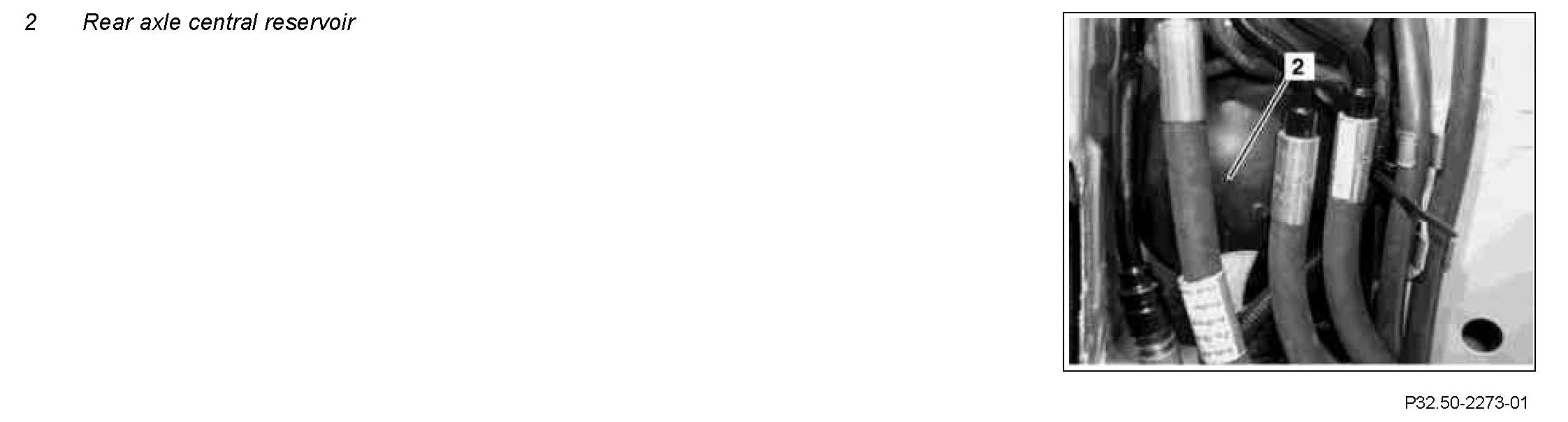

The rear axle central reservoir is located at left rear in the wheel well.

Task
Both central reservoirs are supplied with oil under high pressure (p = 200 bar), in order to quickly provide the necessary energy to cope with a sudden increase in oil consumption (e.g. to compensate for brake diving).
