Compressor/Pump Pulsation Damper: Service and Repair



AR32.50-P-0013RX Remove/install pulsation damper

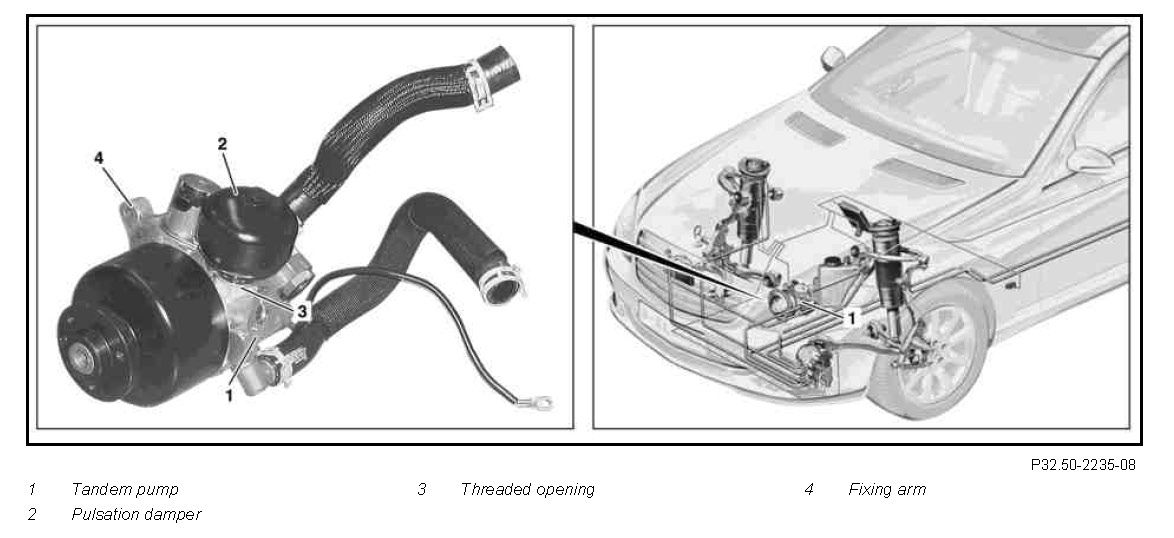

Component Identification:

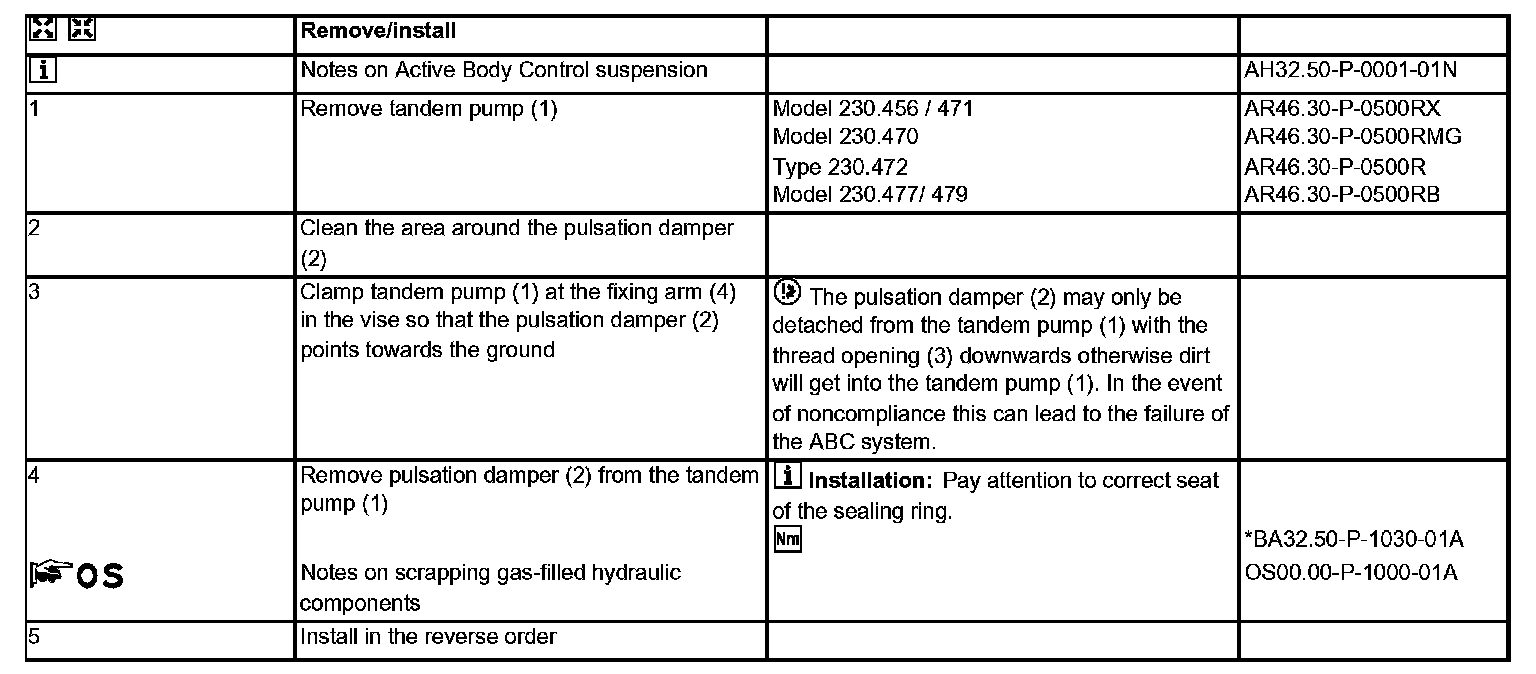

Remove/install Steps 1-5:

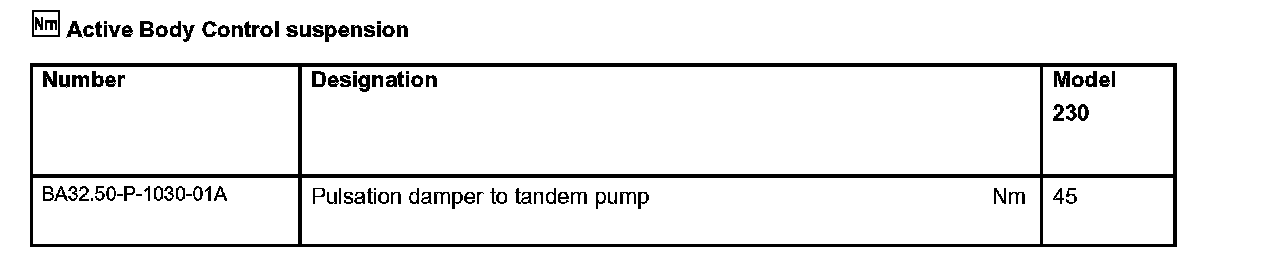

Active Body Control suspension:
