AR32.20-P-0315RBS Remove/Install Stabilizer Bar on Rear Axle



AR32.20-P-0315RBS Remove/install stabilizer bar on rear axle
- with CODE (P99) Special model "AMG Black Series"

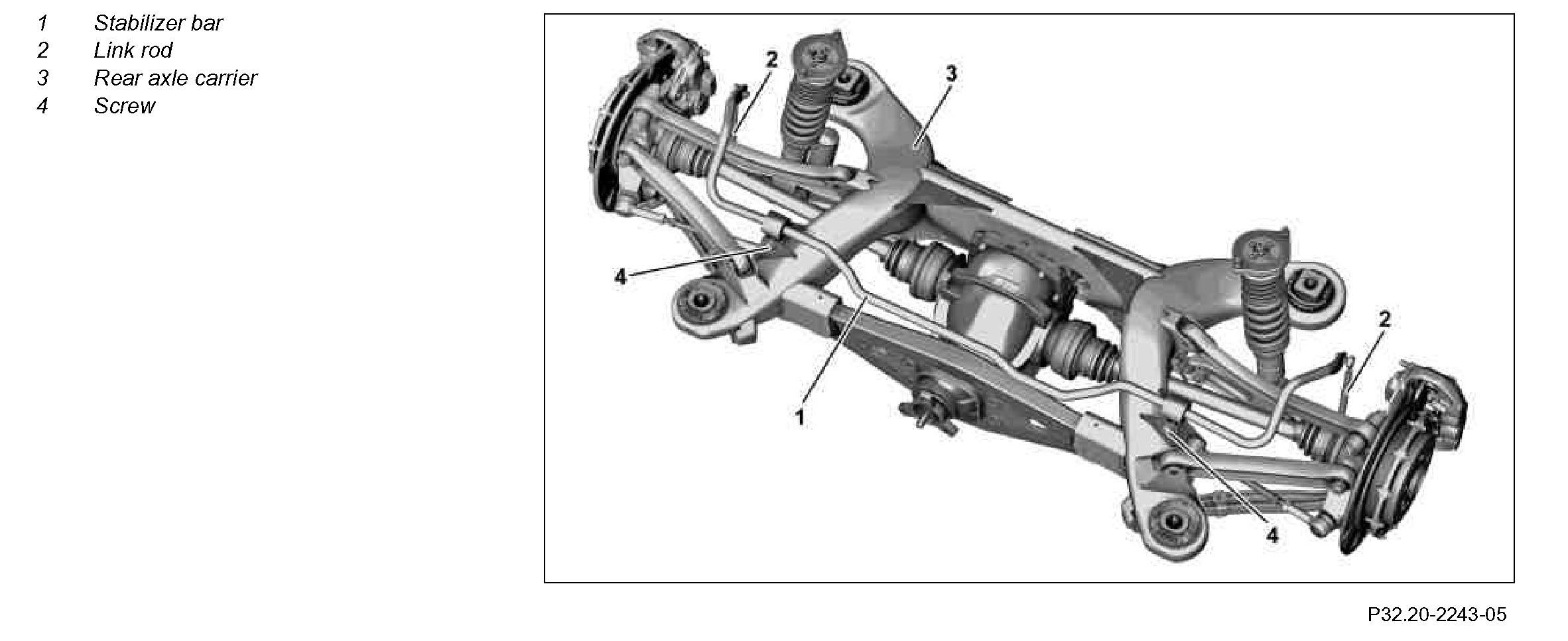

Component Identification:

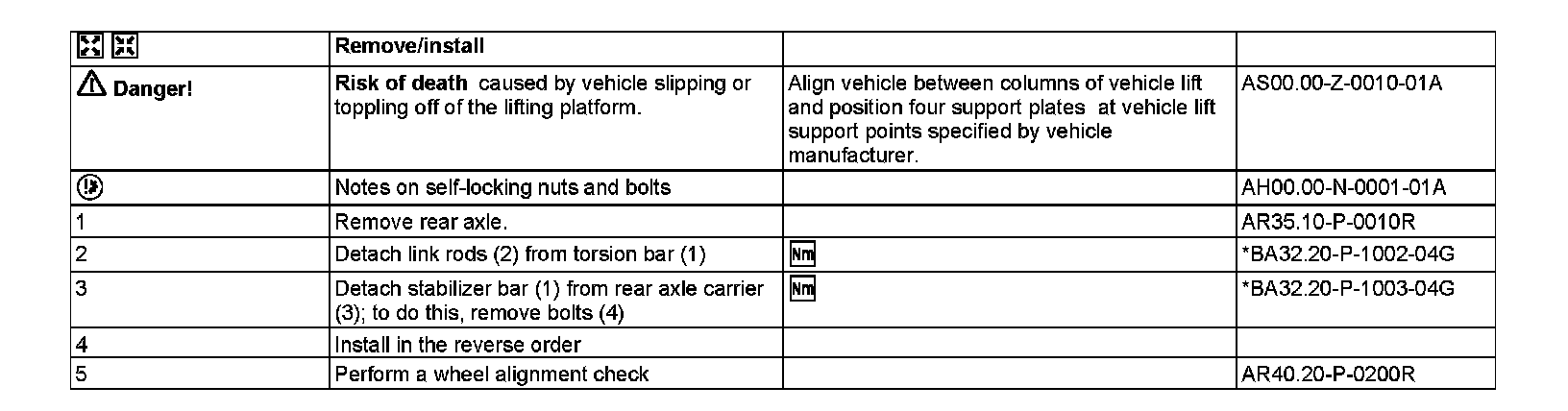

Steps 1-5:

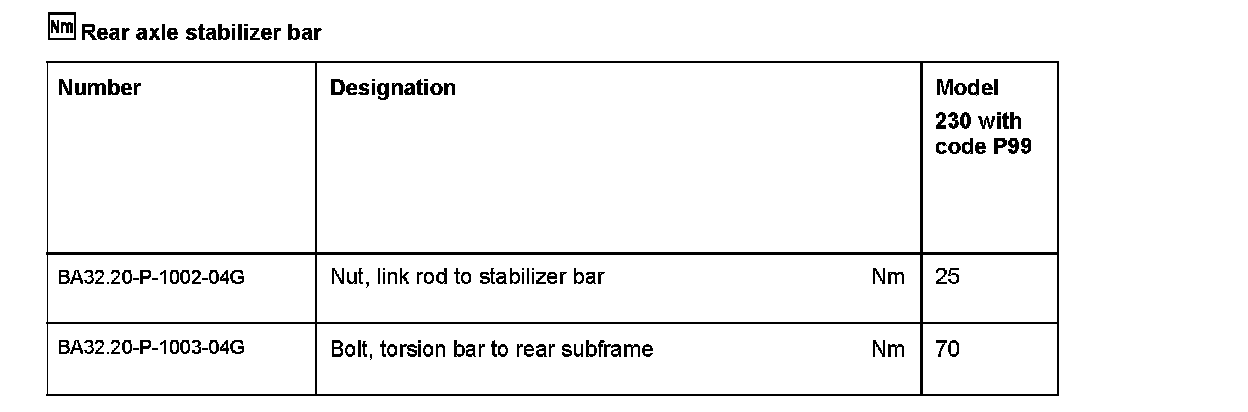

Rear axle stabilizer bar:
