AR32.20-P-0300RBS Remove/Install Stabilizer Bar on Front Axle



AR32.20-P-0300RBS Remove/install stabilizer bar on front axle
- with CODE (P99) Special model "AMG Black Series"

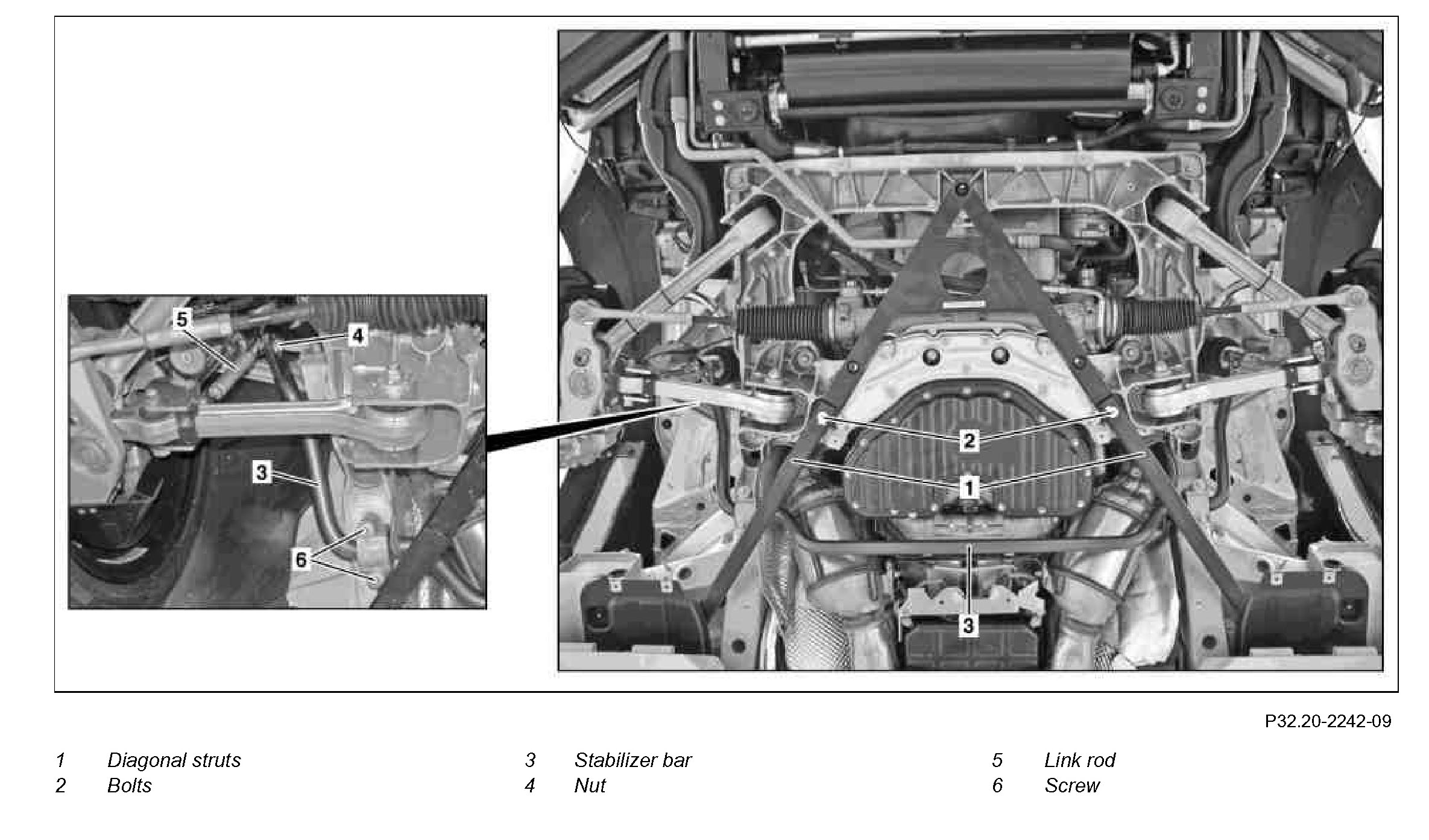

Component Identification:

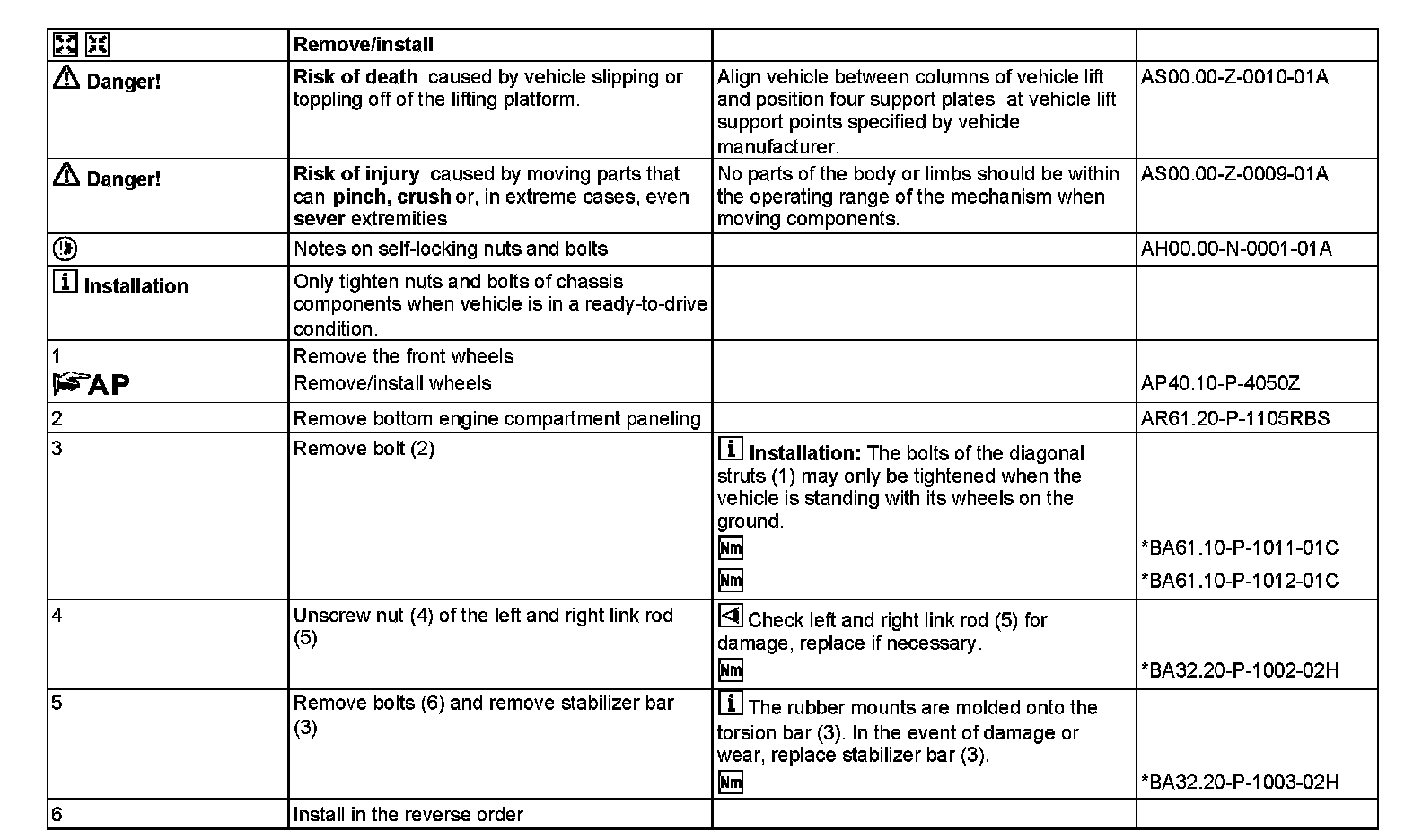

Steps 1-6:

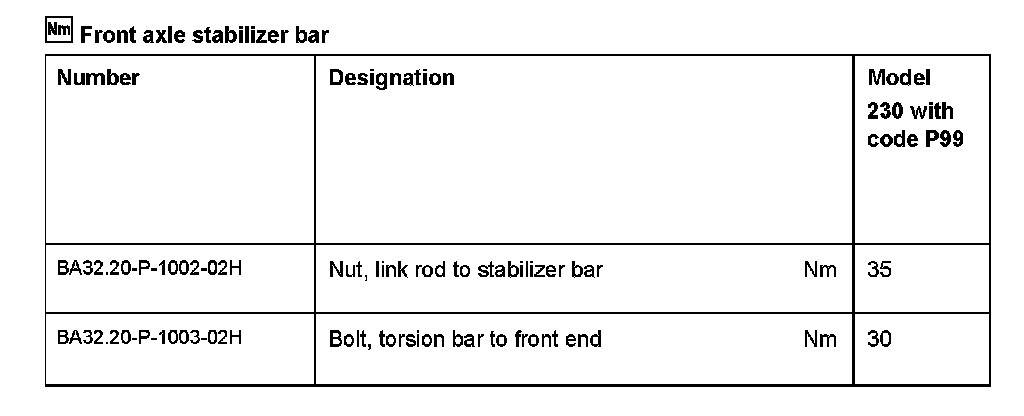

Front axle stabilizer bar:

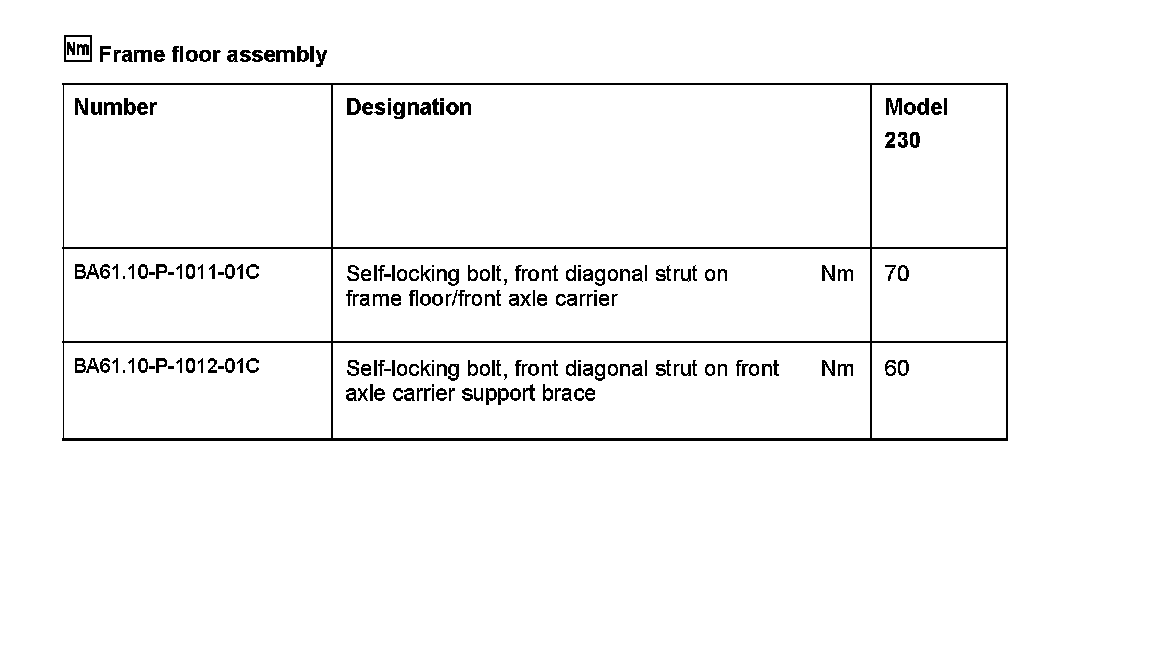

Frame floor assembly:
