AR33.25-P-0455-01RBS Remove/Install Bushing

AR33.25-P-0455-01RBS Remove/install bushing
- with CODE (P99) Special model "AMG Black Series"

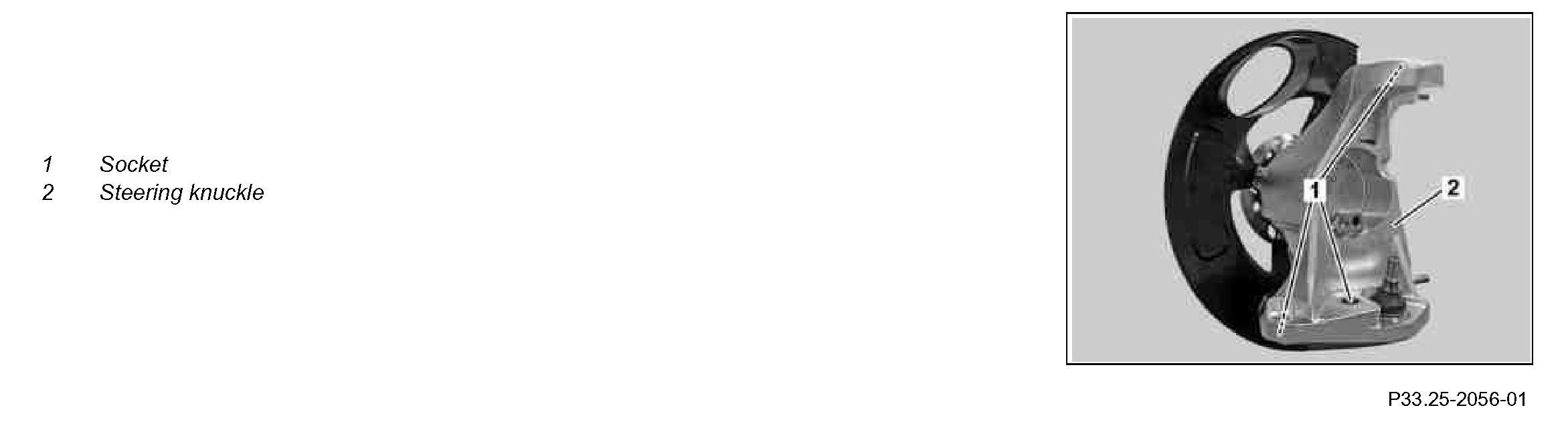

Component Identification:

1 Check bushing (1) for support of supporting ball joint in steering knuckle (2).

If the conical joint is damaged or there is a loose seat in the steering knuckle (2), replace steering knuckle (2).

1 Socket
2 Steering knuckle

Install
If when prying supporting ball joint off the steering knuckle (2) the bushing is pressed out at the same time and this is not damaged, insert bushing into the steering knuckle (2) using refrigerant spray and a suitable tool.

The bushing must contact the steering knuckle (2) over the entire circumference.
