AR33.25-P-0400RBS Remove/Install Steering Knuckle



AR33.25-P-0400RBS Remove/install steering knuckle
- with CODE (P99) Special model "AMG Black Series"


Component Identification:

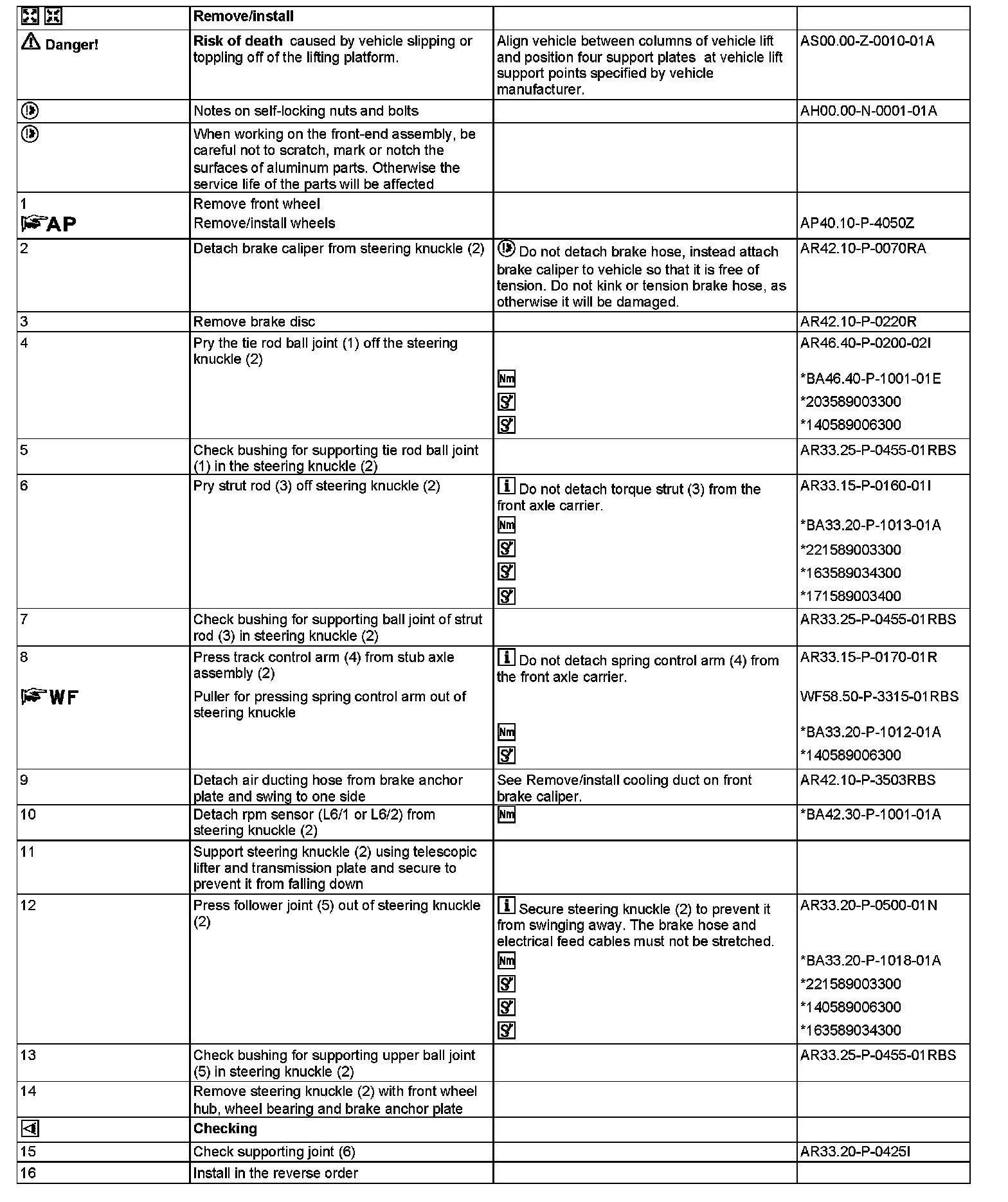

Steps 1-16:

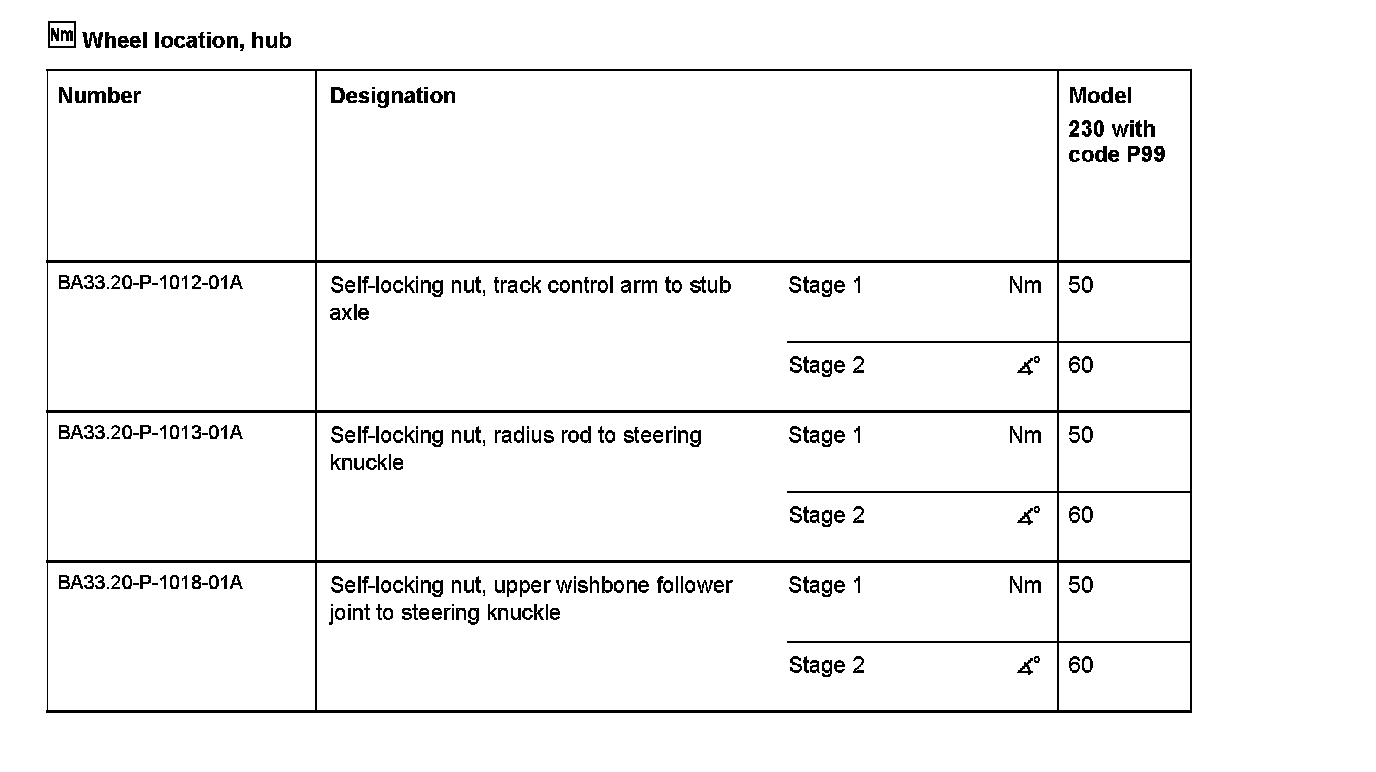

Wheel location, hub:

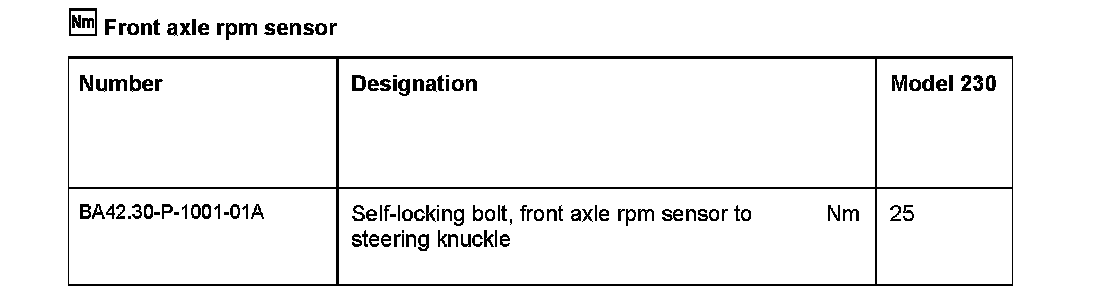

Front axle rpm sensor:

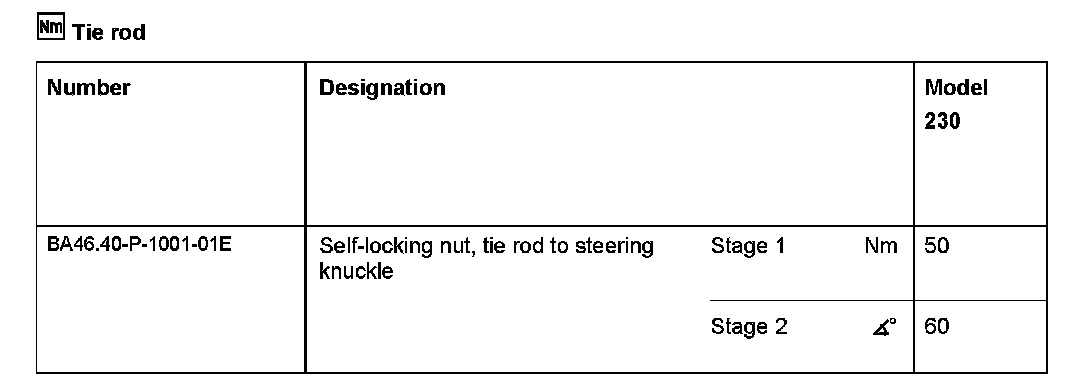

Tie rod:

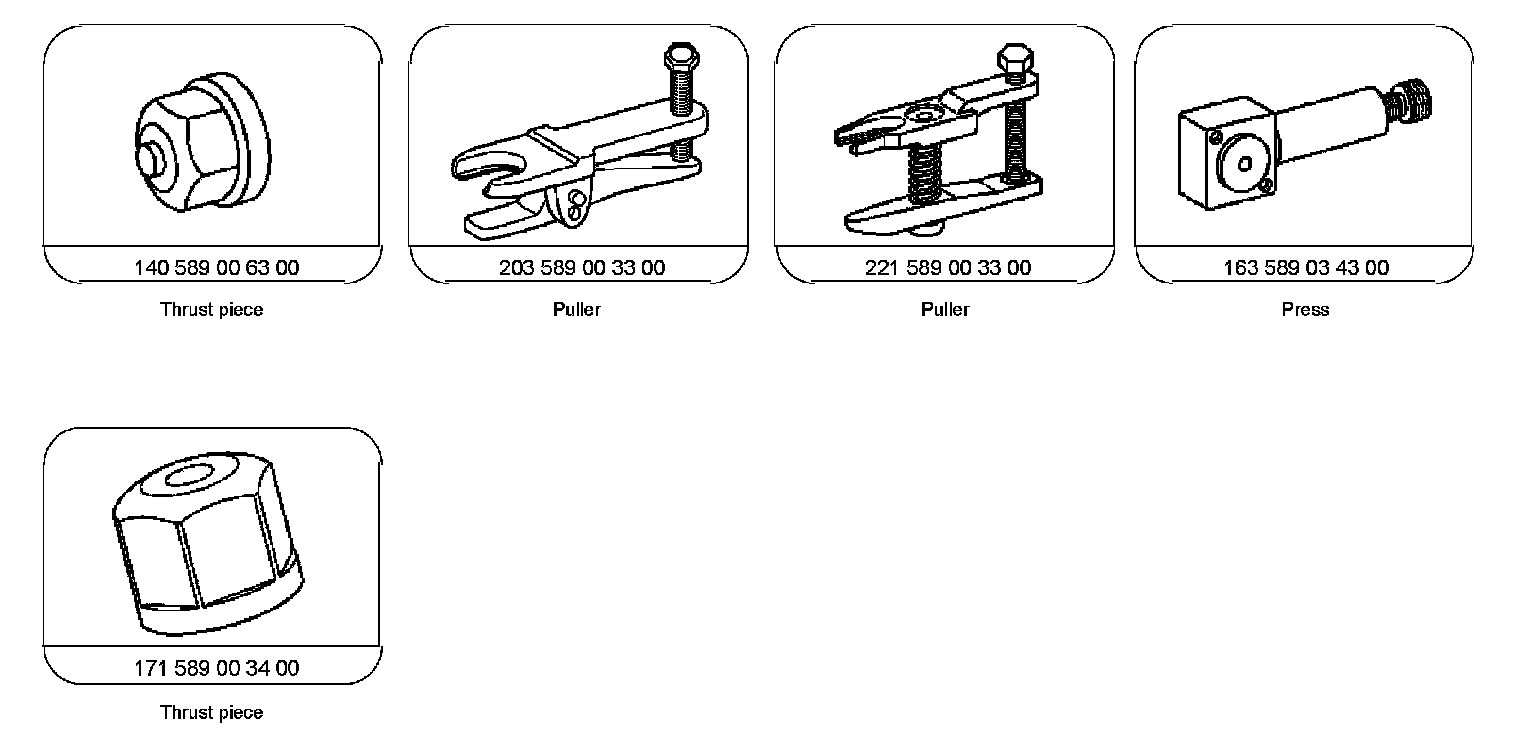

Special Tools:
