AR33.20-P-0427TX Remove/Install Follower Joint of Steering Knuckle Bearing



AR33.20-P-0427TX Remove/install follower joint of steering knuckle bearing

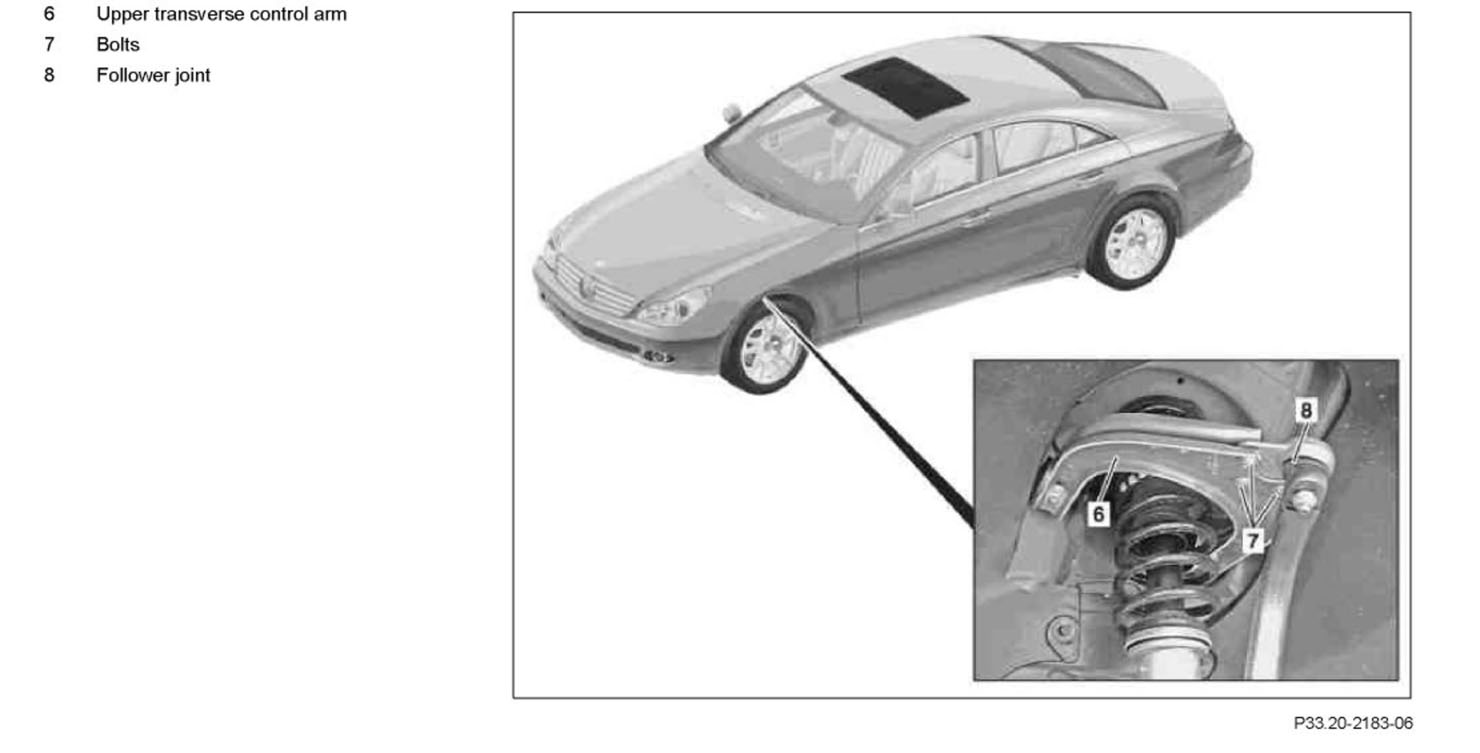

Component Identification:

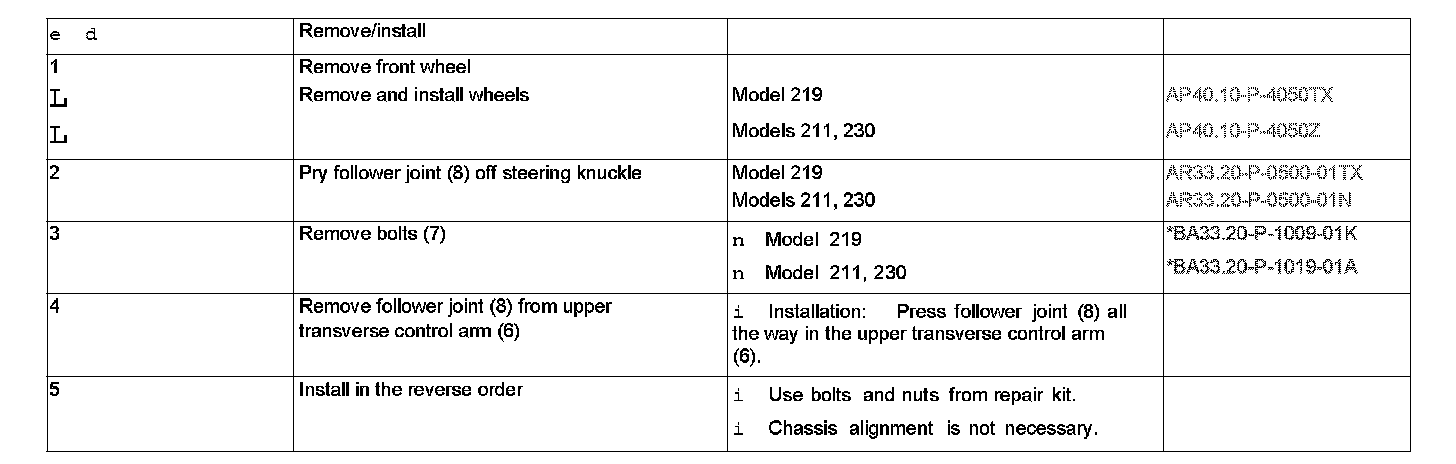

Steps 1-5:

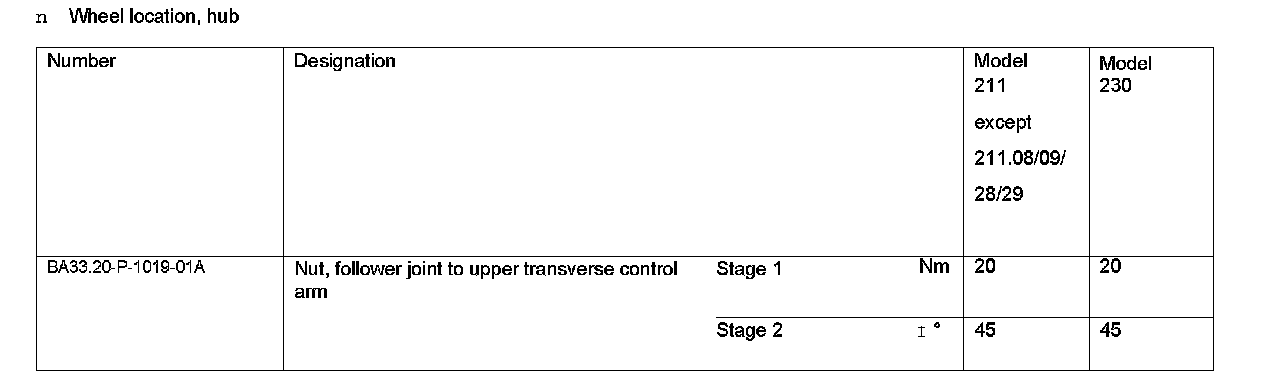

Wheel location, hub:

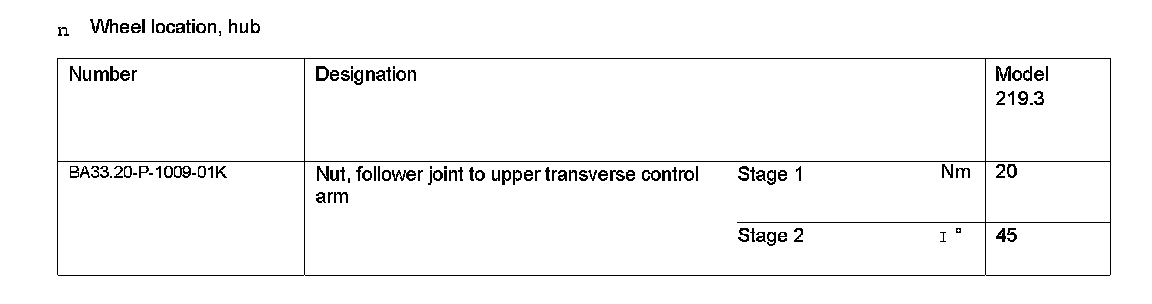

Wheel location, hub:
