GF46.15-P-5010RI Steering Column Adjustment Switch, Component Description



GF46.15-P-5010RI Steering column adjustment switch, component description
- refinement package
- as of model year 09

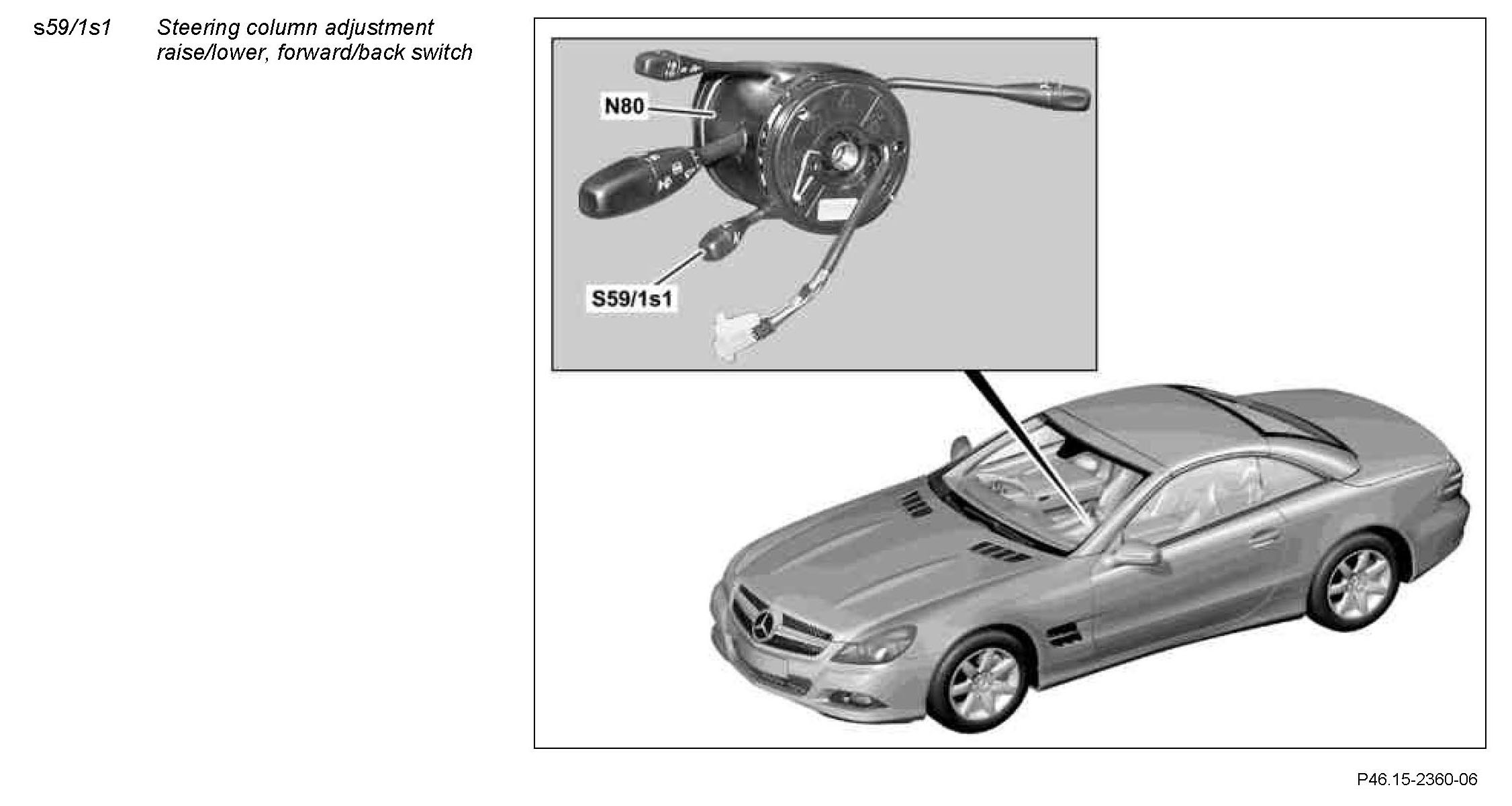

Component Identification:





Location
The steering column adjustment switch is located on the left under the steering column tube module (N80).

Task
The steering column adjustment switch is used to adjust the steering column. The status of the steering column adjustment switch is read in directly by the steering column tube module.
