GF46.15-P-0003-03RI Electrically Adjustable Steering Column (EVL) Location of Components

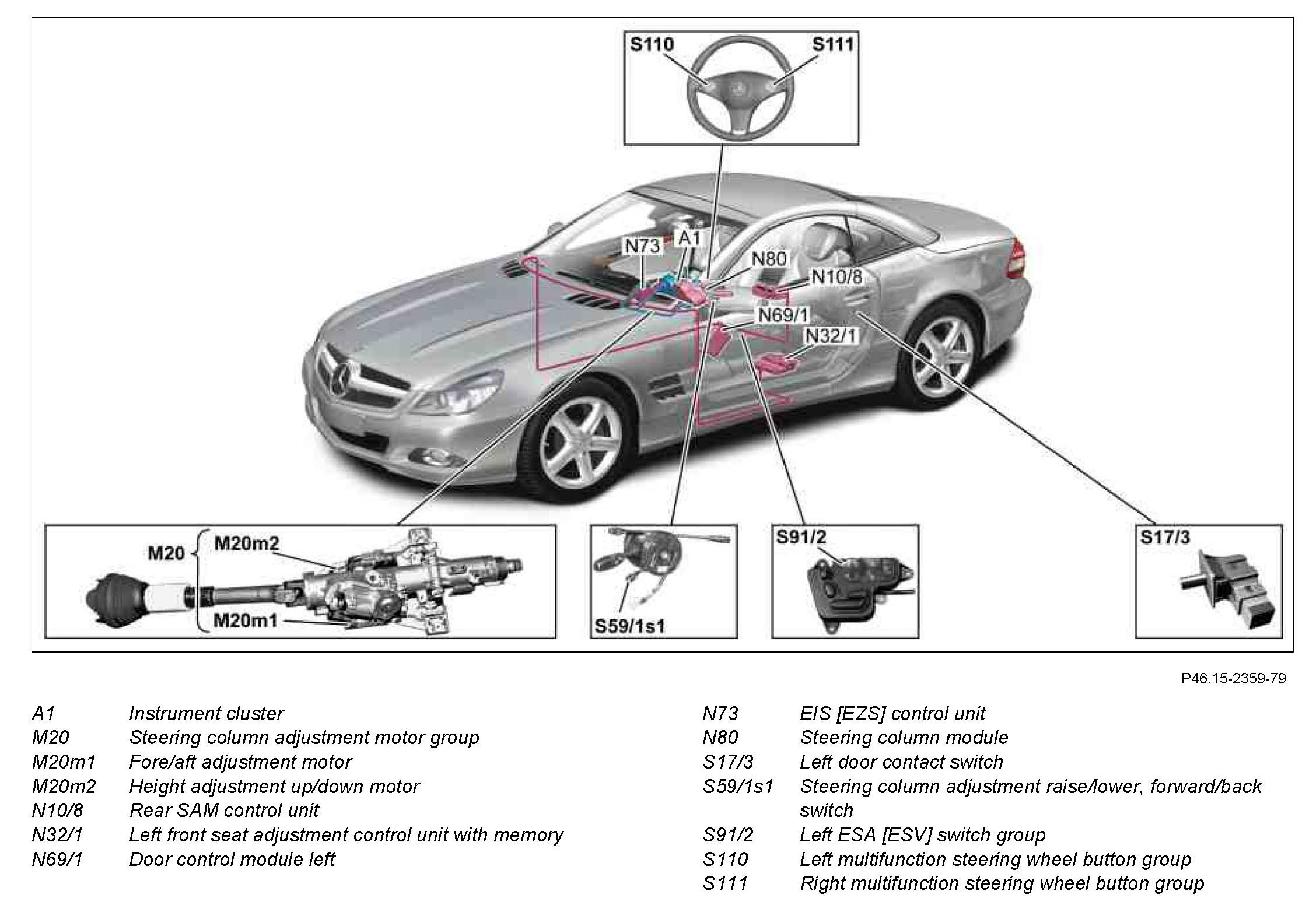

GF46.15-P-0003-03RI Electrically adjustable steering column (EVL) location of components
- as of model year 09


Component Identification:
