Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Service and Repair

Starter Motor: Service and Repair

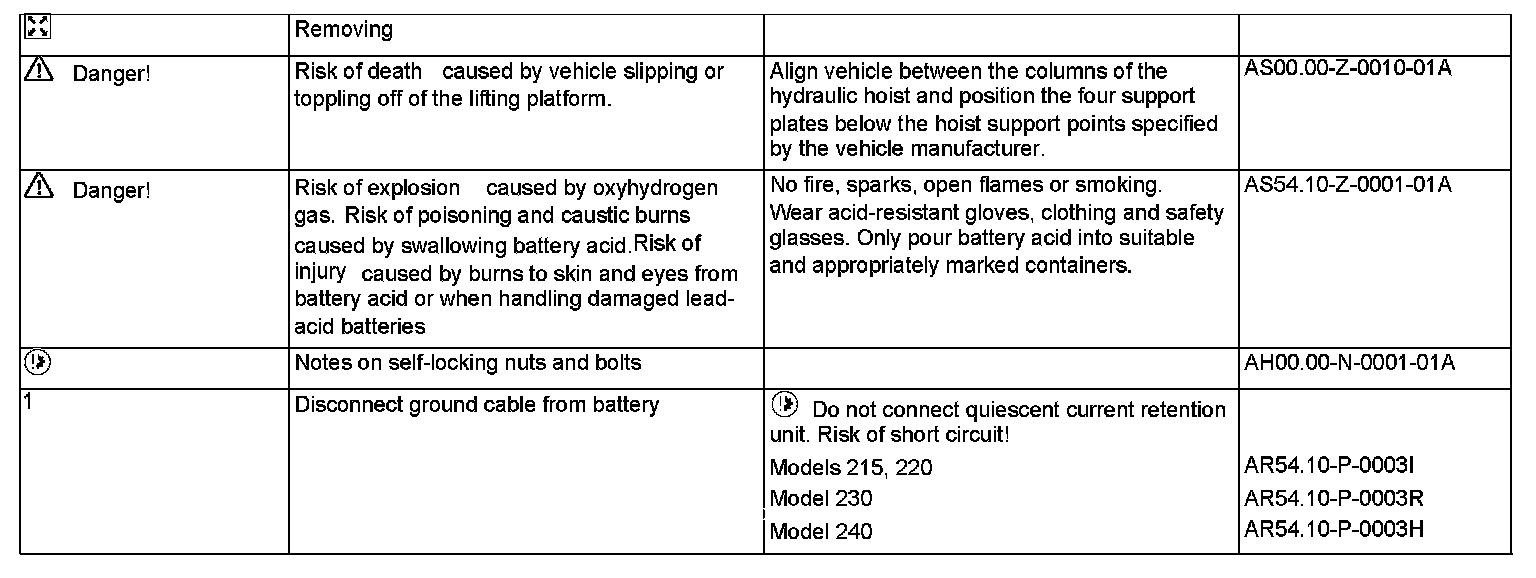

AR15.30-P-7100H Removing and installing starter
