Removal and Replacement



AR54.10-P-0003RBS Disconnect/connect Battery Ground Line
- with CODE (P99) Special model "AMG Black Series"

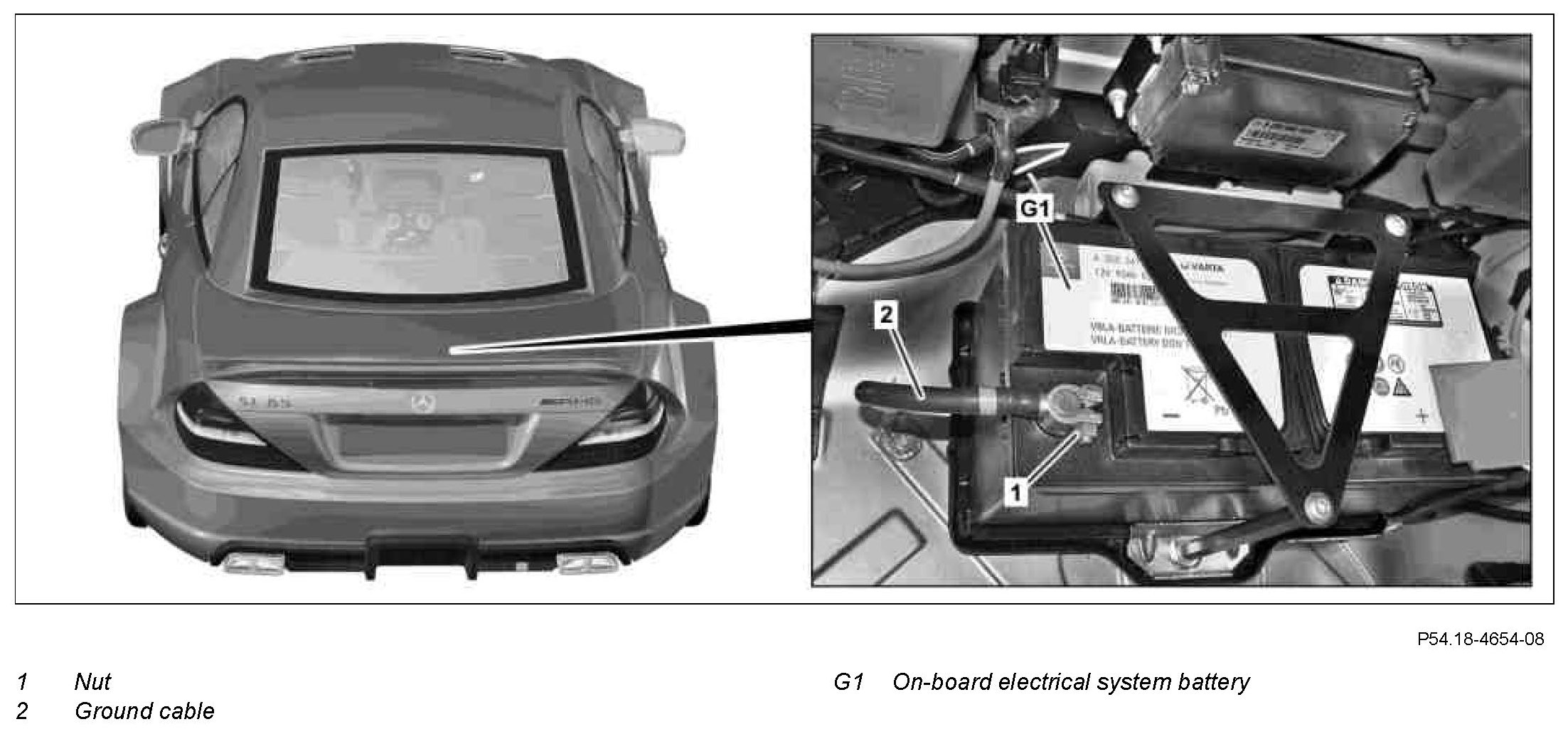

Component Identification:

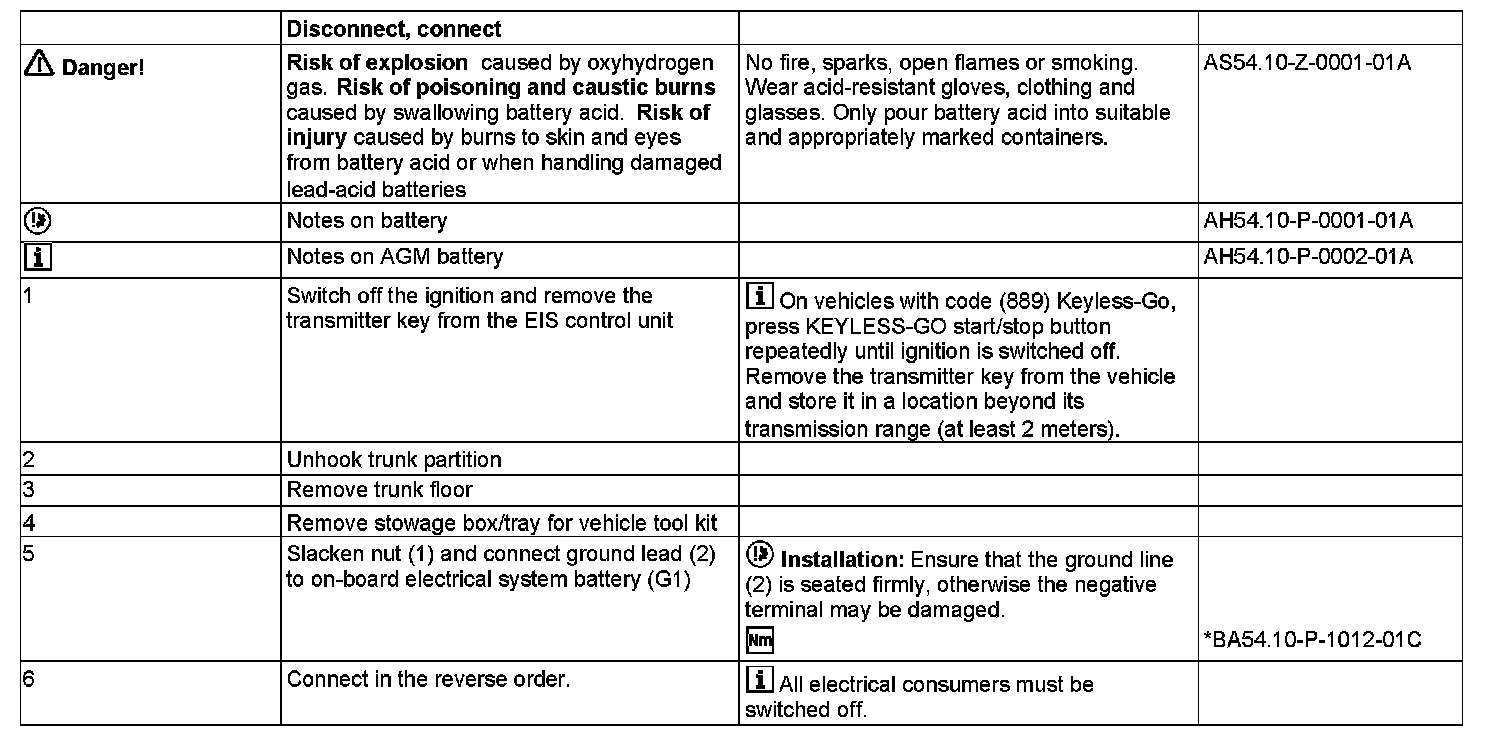

Steps 1-6:





Battery:
