Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> BA01.30-P-1000-01G Cylinder Head (Torque Specifications)

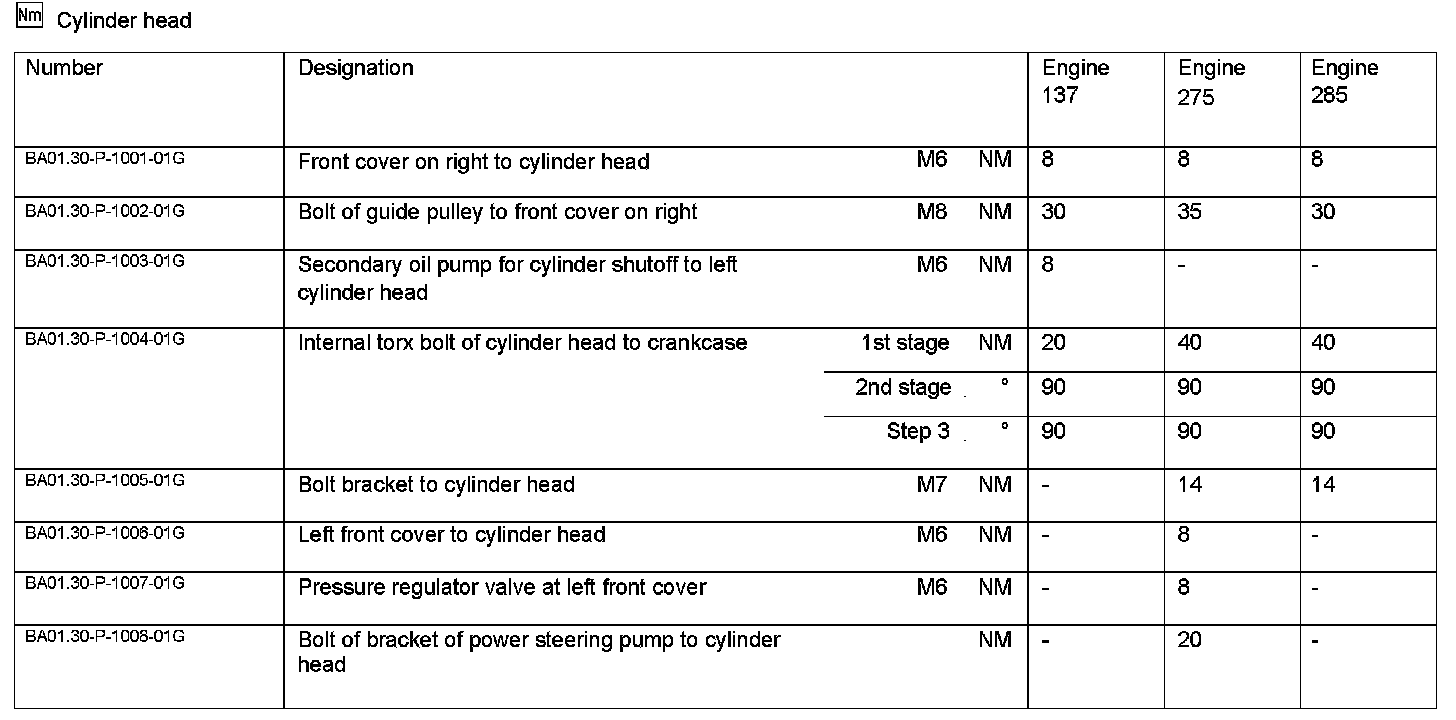

BA01.30-P-1000-01G Cylinder Head (Torque Specifications)



BAO1.30-P-1000-01G Cylinder head
