SL 65 AMG (230.479) V12-6.0L Turbo (275.981)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Restraints and Safety Systems
>>
Seat Occupant Sensor
>>
Service and Repair
>>

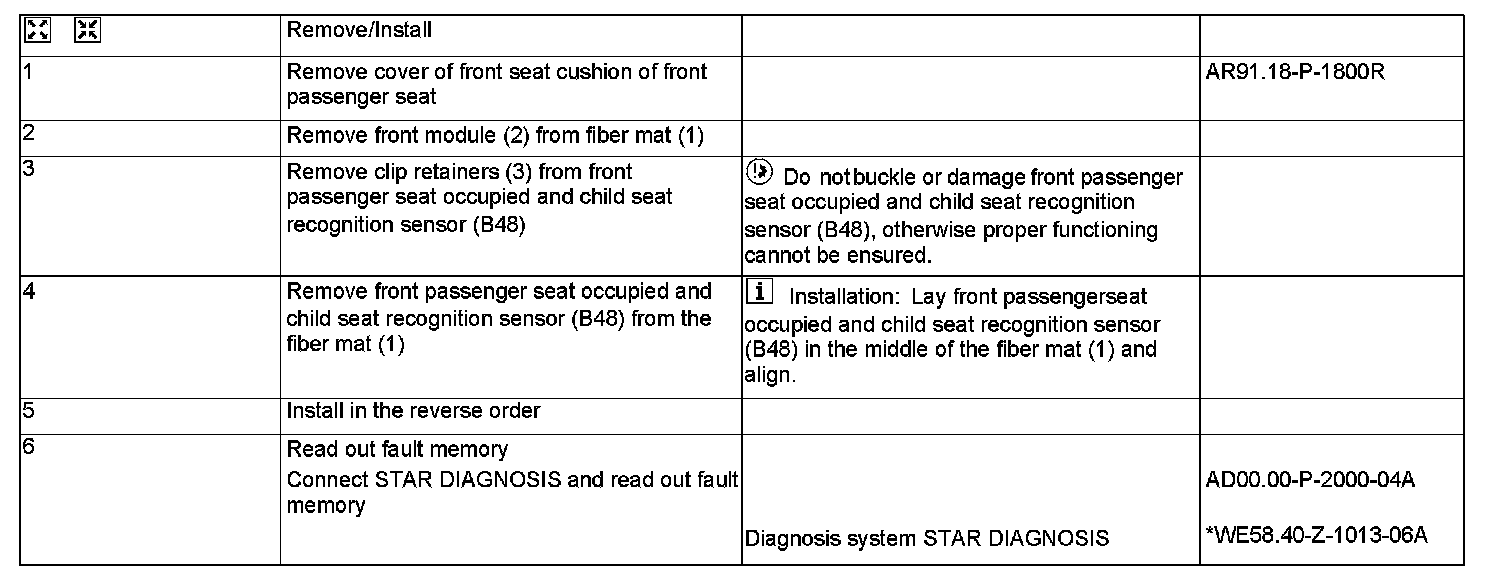

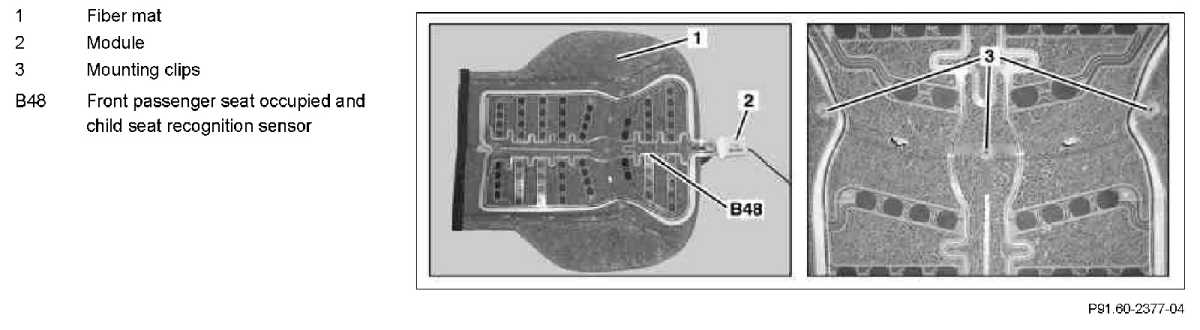

AR91.60-P-0720R Remove/Install Seat Occupied Recognition Sensor
AR91.60-P-0720R Remove/Install Seat Occupied Recognition Sensor
AR91.60-P-0720R Remove/Install Seat Occupied Recognition Sensor
