Roll Bar Control Switch: Description and Operation

GF91.59-P-2110RI Roll Bar "down/up" Limit Switch, Component Description

- as of model year 2009
- except CODE (P99) Special model "AMG Black Series"
- /YoM 08 model refinement package

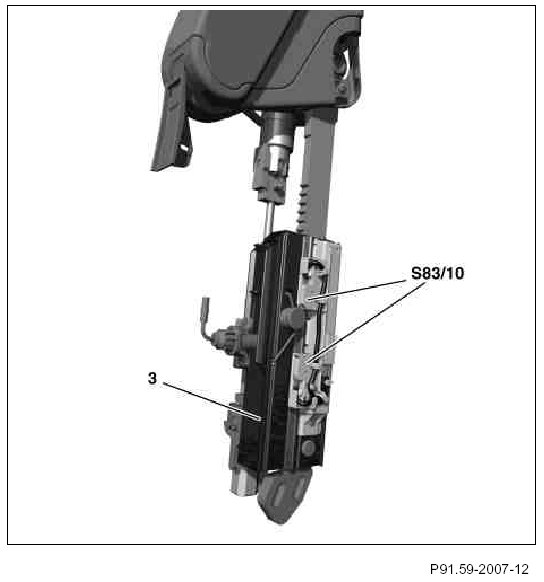

3 Supporting element, right
S83/10 Roll bar "down/up" limit switch

Location
The roll bar "down/up" limit switch (S83/10) is located on the right side in the area of the B-pillar

Task
The roll bar "down/up" limit switches transmit a ground signal to the roll bar Vario roof control unit (N52) as soon as the roll bar is set up or lowered.
