GF77.39-P-3215RI Vario Roof Tubular Frame Locked Limit Switch, Component Description

GF77.39-P-3215RI Vario Roof Tubular Frame Locked Limit Switch, Component Description
- except CODE (P99) Special model "AMG Black Series"
- refinement package
- as of model year 09

Component Identification:

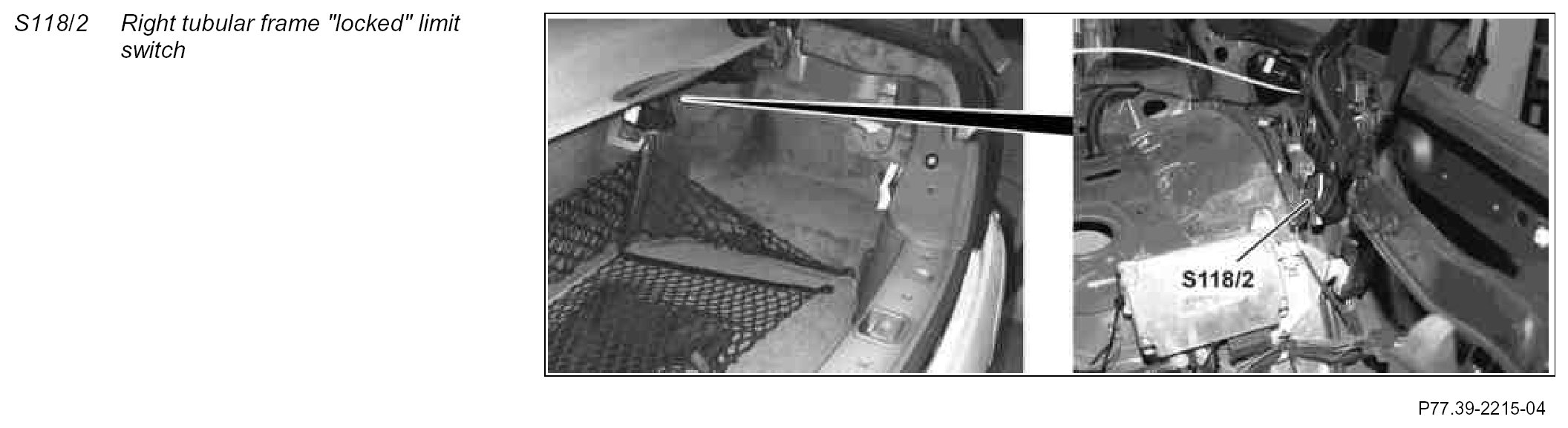

Location
In the tubular frame lock above the right wheel well

Task
The 1-pin normally open contact transmits a ground signal to the RVC [UVS] control unit (N52) as soon as the tubular frame is locked.
