AR46.10-P-0200I Remove/Install Clock Spring Contact
AR46.10-P-0200I Remove/Install Clock Spring Contact
AR46.10-P-0200I Remove/install clock spring contact

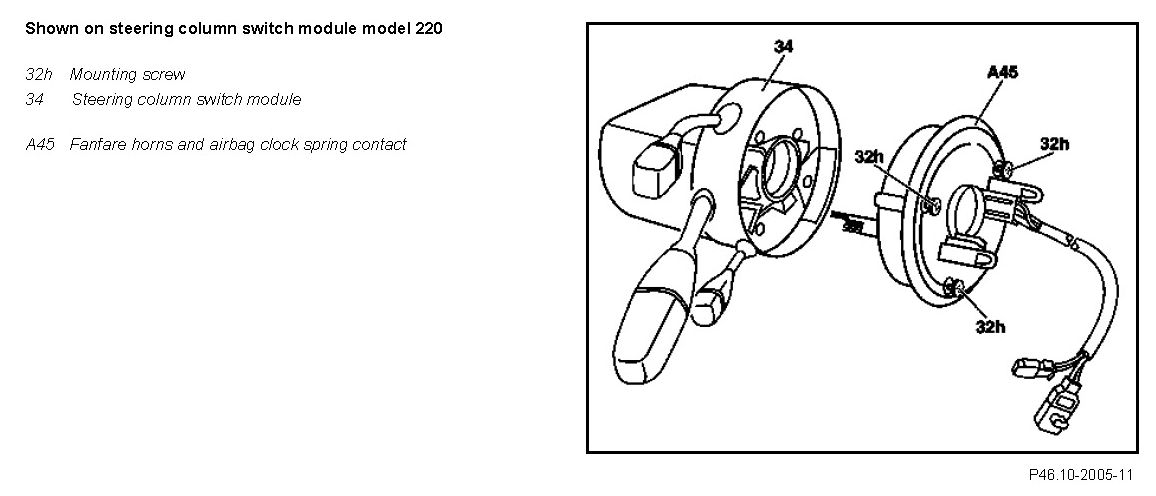

Component Identification:

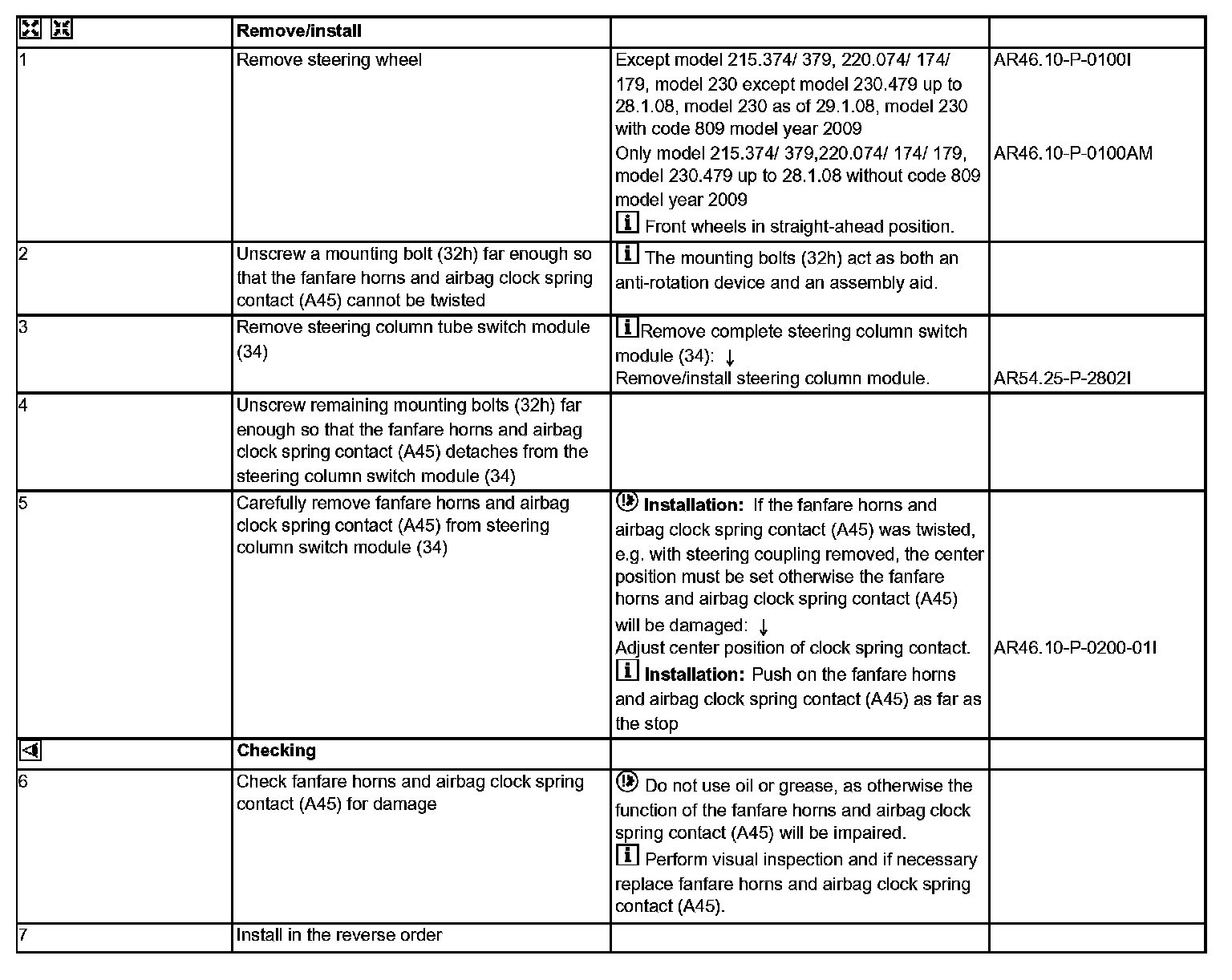

Remove/install Steps 1-7:
