GF91.60-P-4039RI Driver-Side/Front Passenger-Side Sidebag, Component Description

GF91.60-P-4039RI Driver-side/Front Passenger-side Sidebag, Component Description
- as of model year 2009
- except CODE (P99) Special model "AMG Black Series"
- as of model year 2009
- with CODE (P99) Special model "AMG Black Series"
- with CODE (494) USA version

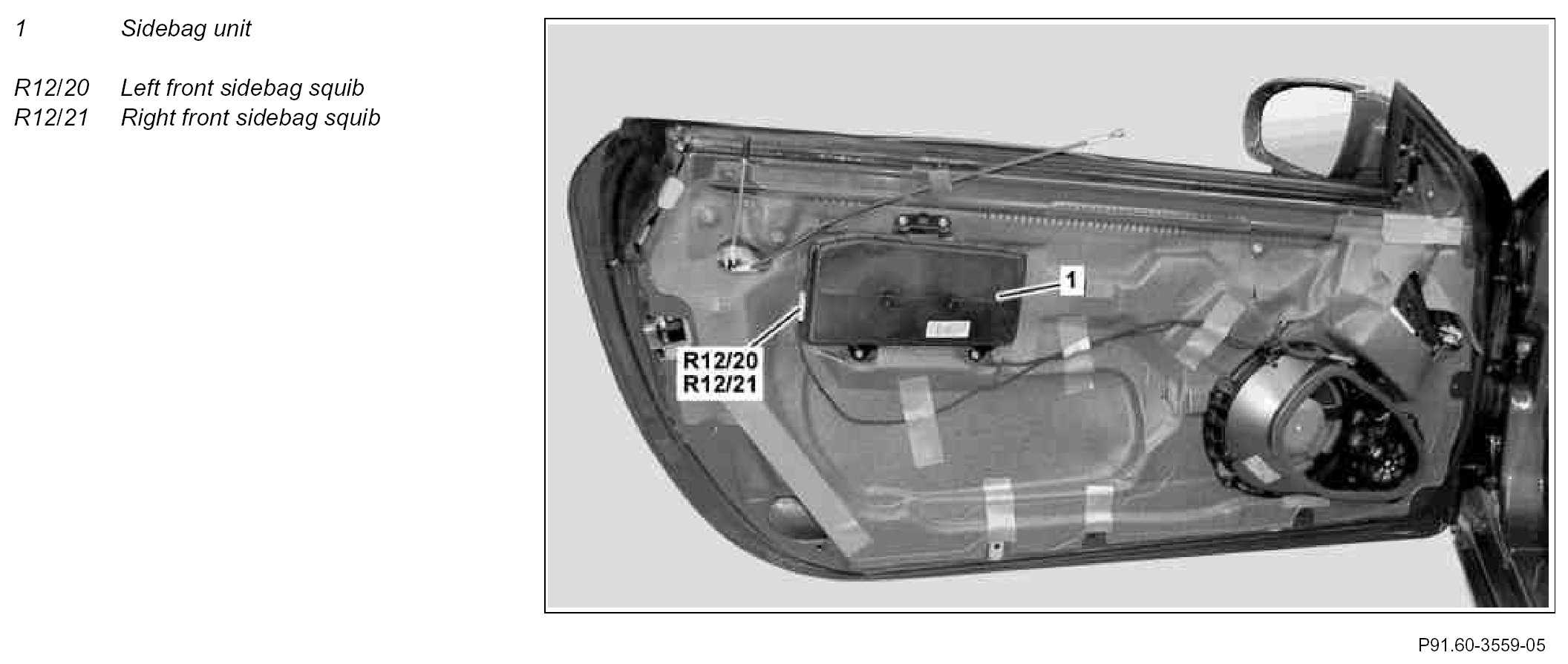

Component Identification:

Location
The sidebag units are located behind the corresponding door paneling.

Task
The sidebag units protect the driver or front passenger against injuries in the event of a lateral impact in the area of the door and the B-pillar.

Triggering is conducted by the restraint systems control unit (N2/7) igniting each of the squibs.
