Air Bag Harness: Service and Repair
AR54.18-P-0600A Repair Supplemental Restraint System (SRS) Squib Wiring Harness

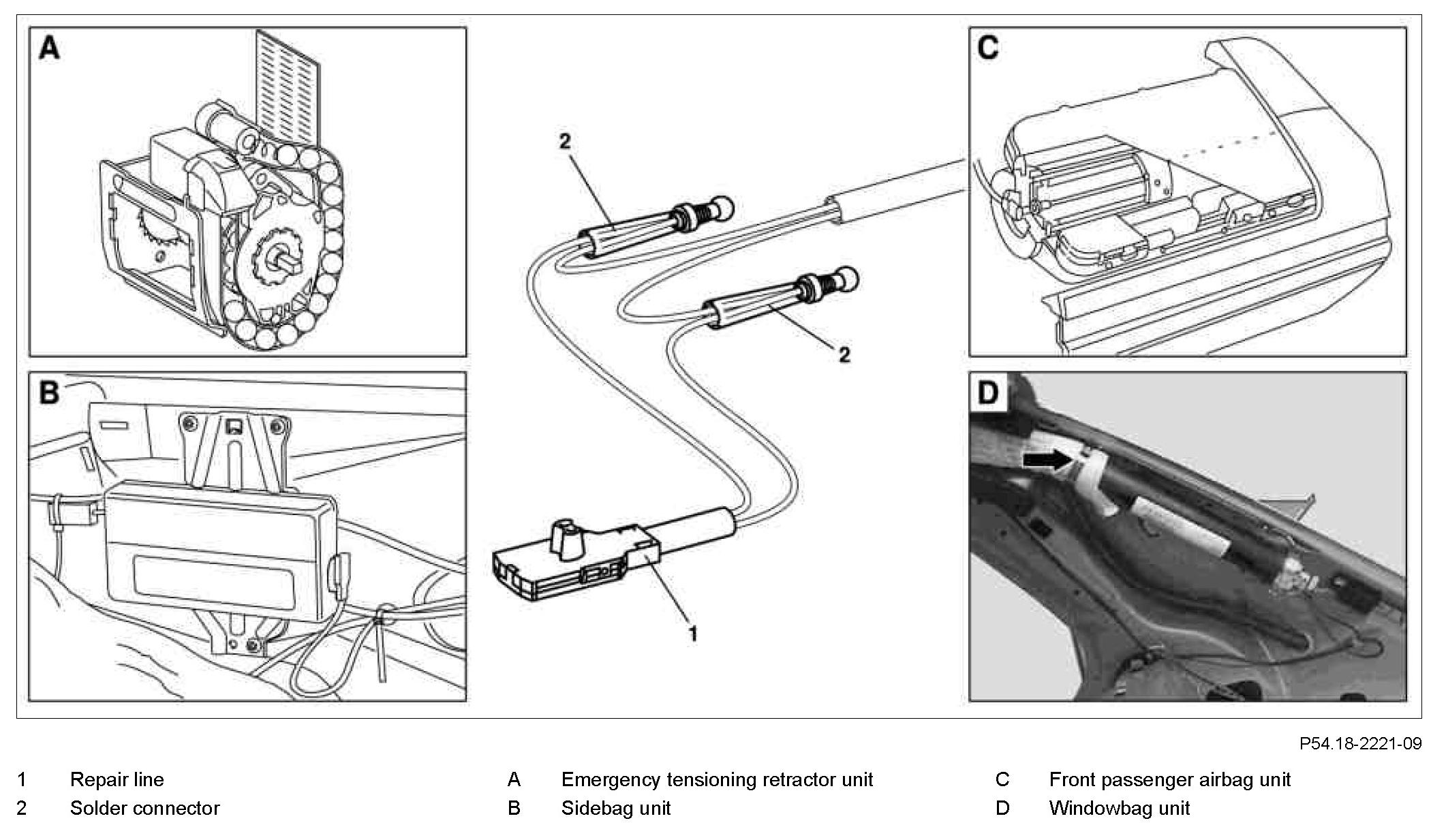

Component Identification:

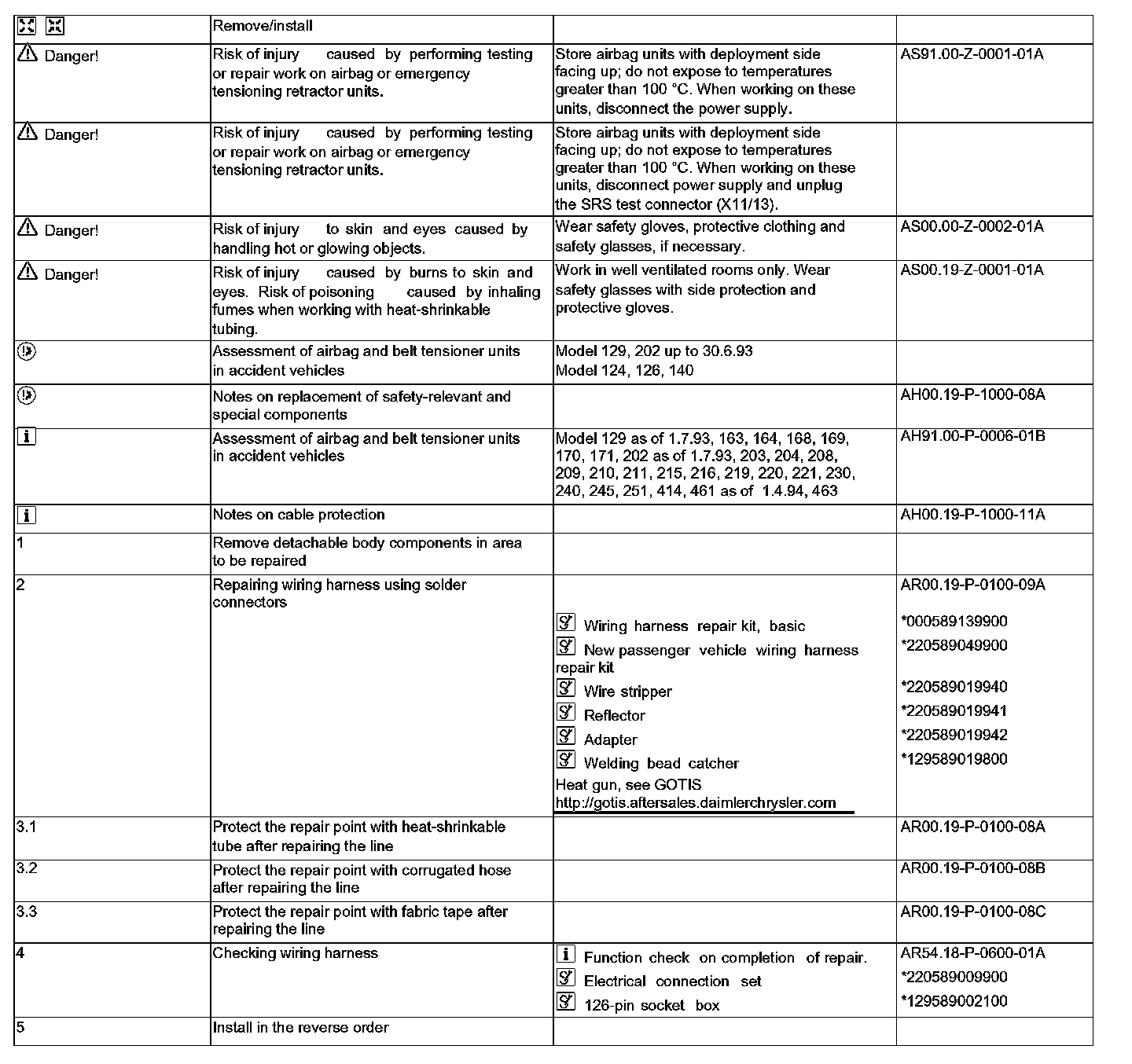

Steps 1 - 5:

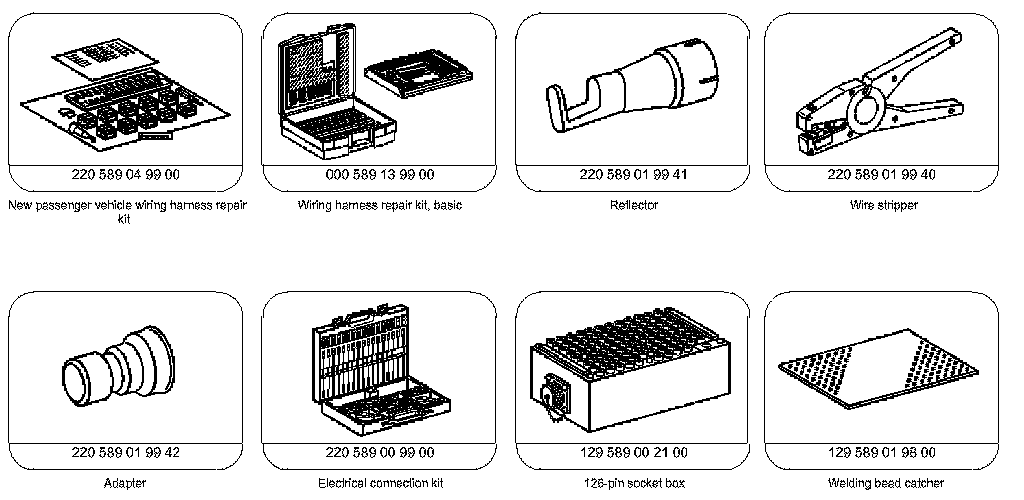

Special Tools:
