Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Relays and Modules - Ignition System >> Ignition Control Module >> Service and Repair

Ignition Control Module: Service and Repair

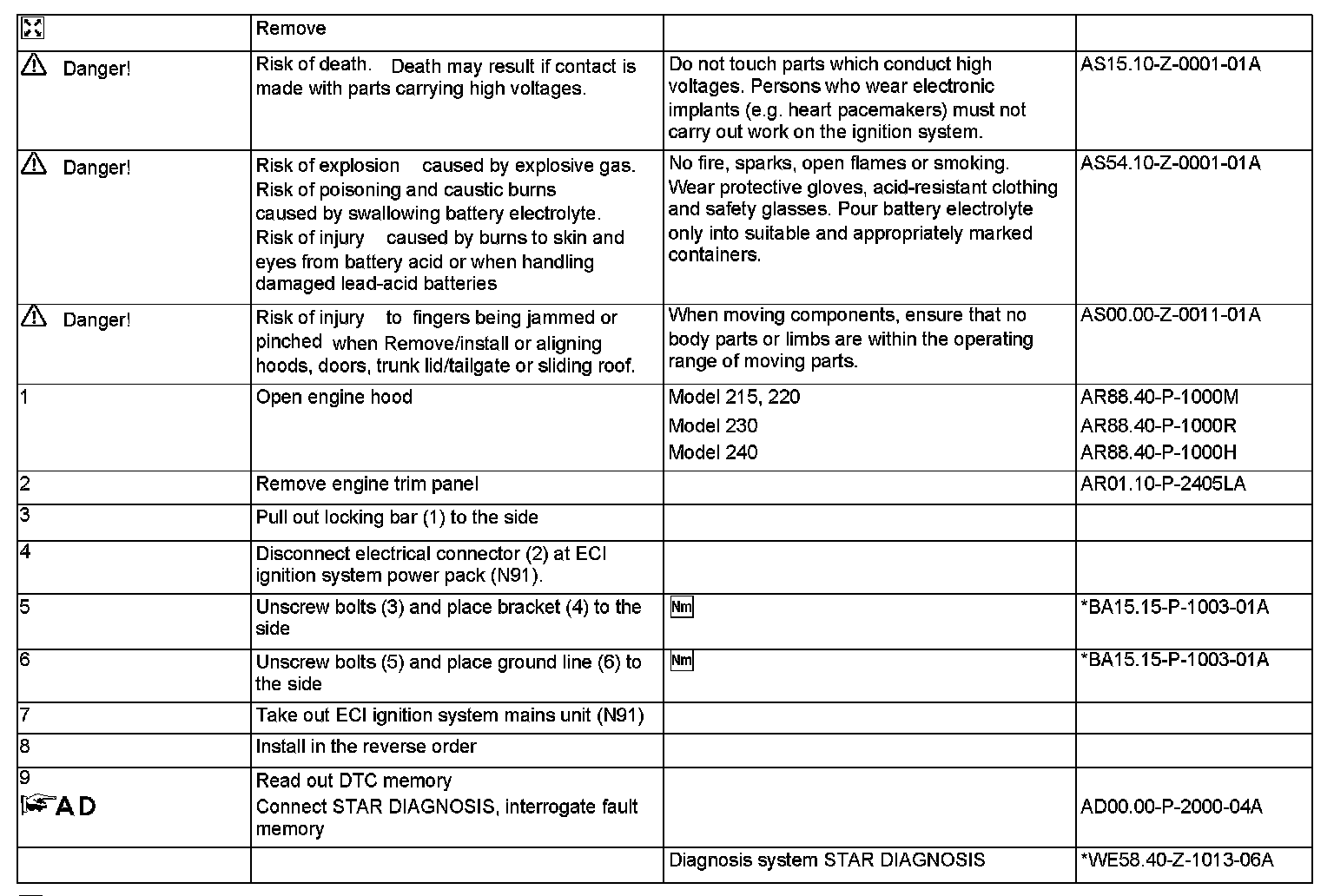

AR15.15-P-2093H Remove/install ECI ignition system power pack
