AR09.41-P-6925RBS Remove/Install Circulation Pump For Low-Temperature Water Circuit



AR09.41-P-6925RBS Remove/Install Circulation Pump For Low-temperature Water Circuit
- with CODE (P99) "AMG Black Series" special model


Component Identification:

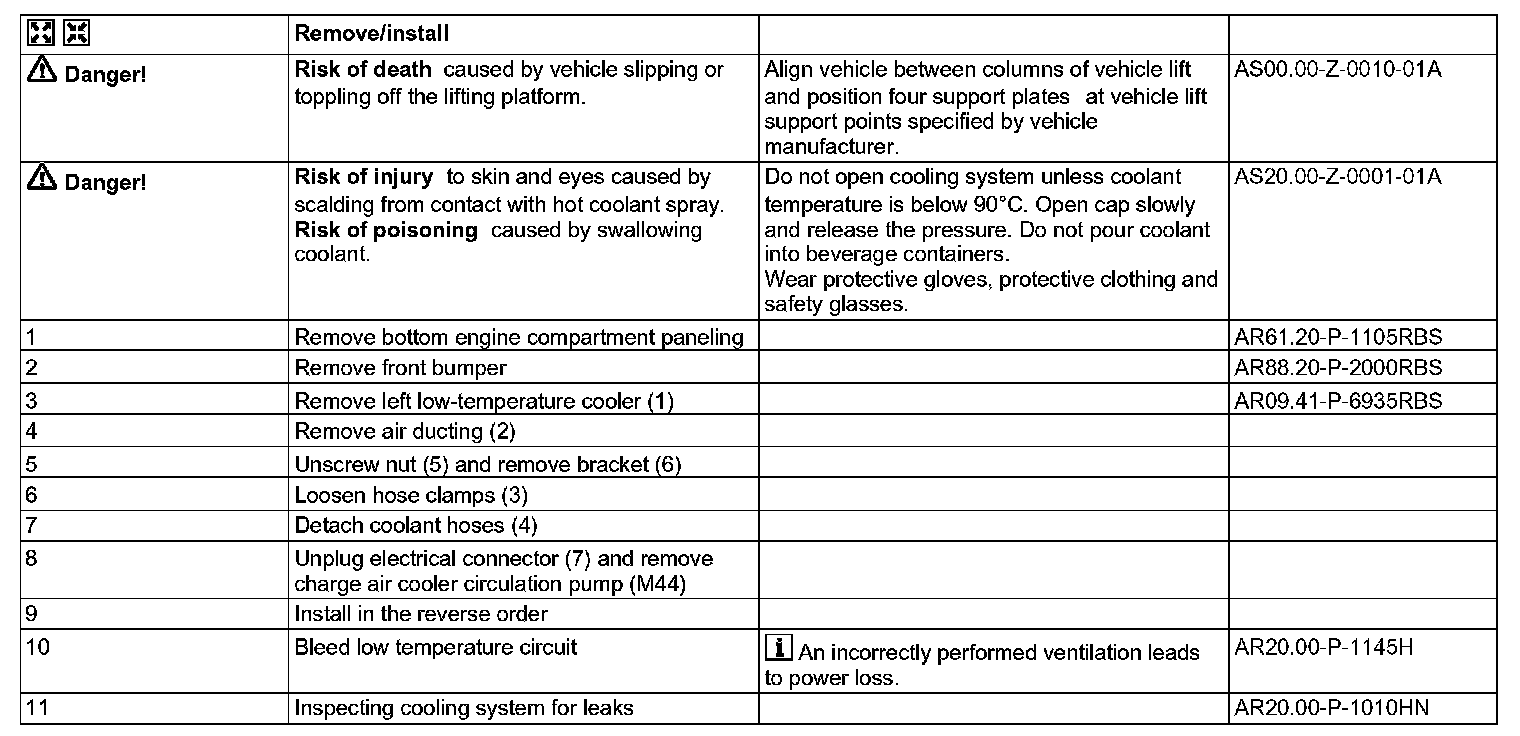

Steps 1 - 11:
