Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Turbocharger >> Turbocharger Coolant Pump >> Service and Repair >> AR09.41-P-6925R Remove/Install the circulation pump for the low temperature water circuit

AR09.41-P-6925R Remove/Install the circulation pump for the low temperature water circuit

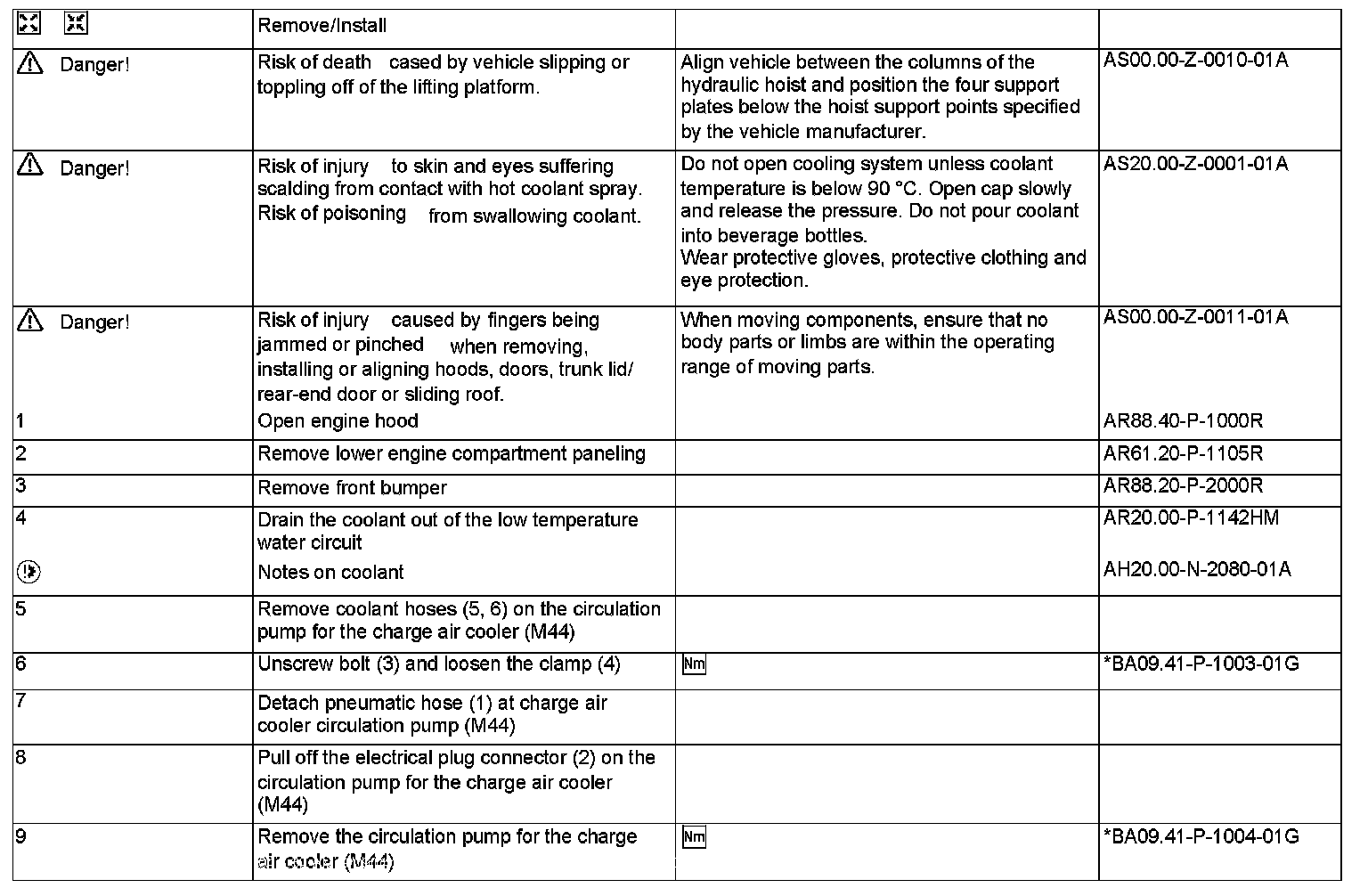

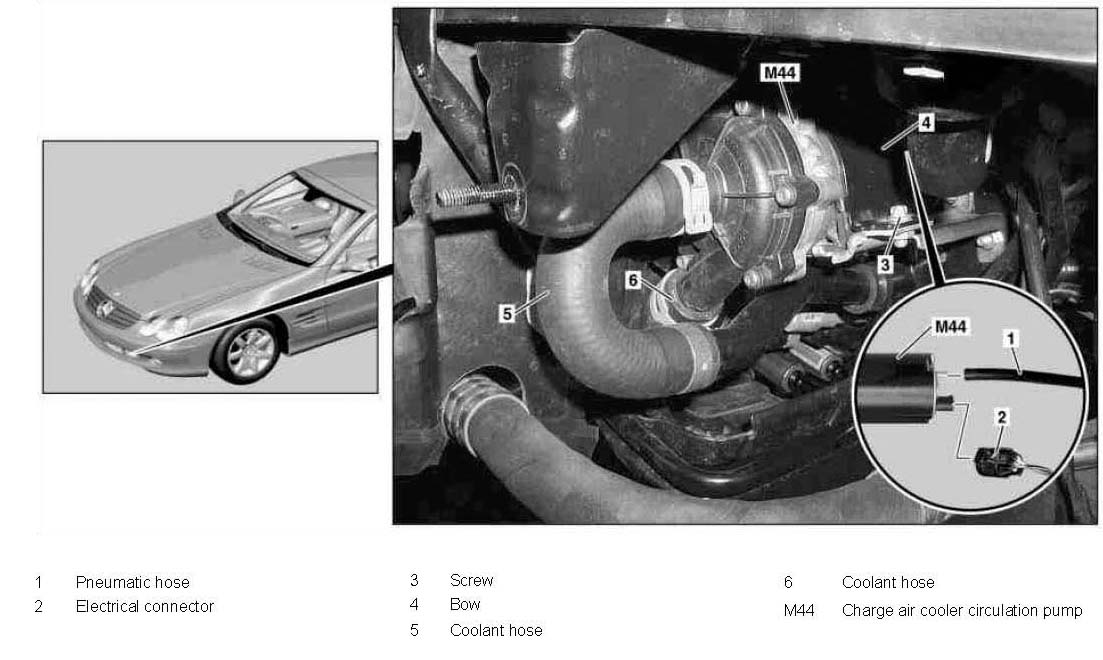

AR09.41-P-6925R Removing and installing the circulation pump for the low temperature water circuit
