Turbocharger Coolant Pump: Description and Operation

GF09.41-P-5010MOR Component Description For Charge Air Cooler Circulation Pump
- ENGINE 275.9 in MODEL 230.4 as of model year 2009 / AEJ 08 model refinement package

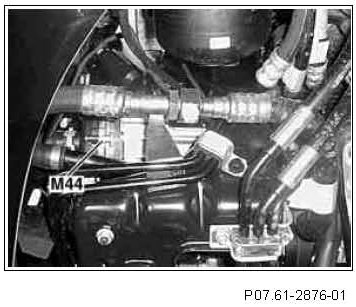

View of vehicle from bottom left
M44 Charge air cooler circulation pump

Location
The circulation pump is located under the LH lamp unit in the return line to the low-temperature cooler.

Task
The circulation pump ensures circulation of the coolant around the charge air cooling circuit.

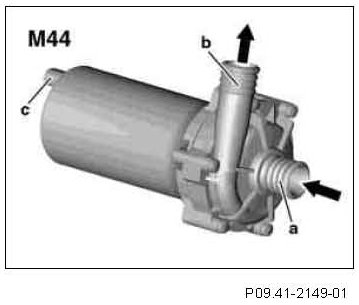

Body





M44 Charge air cooler circulation pump
a Coolant hose connection on the suction side
b Coolant hose connection on the thrust side
c 2-pin plug connection.





View of bottom of rear compartment, behind front passenger seat
K27/5 In-tank fuel pump relay (for AMG up to 02/2006)
K60 Charge air cooler circulation pump relay

Function
The circulation pump is actuated through the charge air cooler circulation pump relay by the ME-SFI [ME] control unit (N3/10), if the charge air temperature is above 47°C. It is switched off again if the charge air temperature falls below 35°C.
