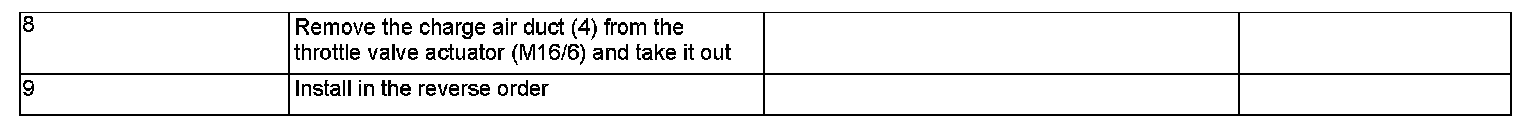

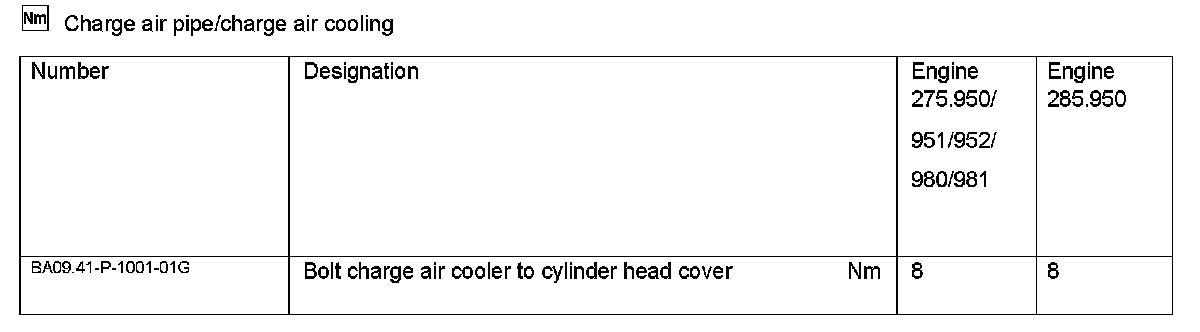

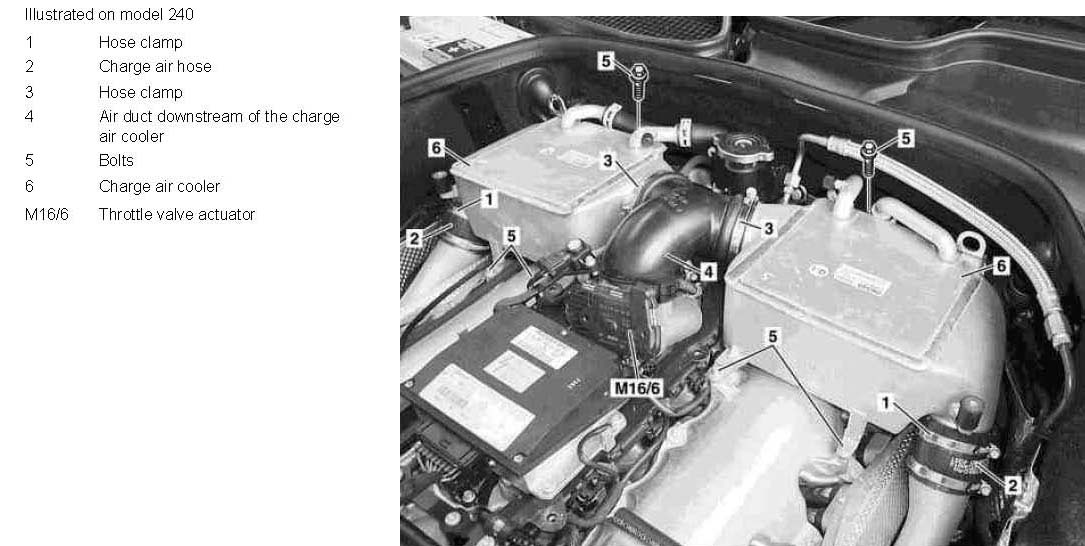

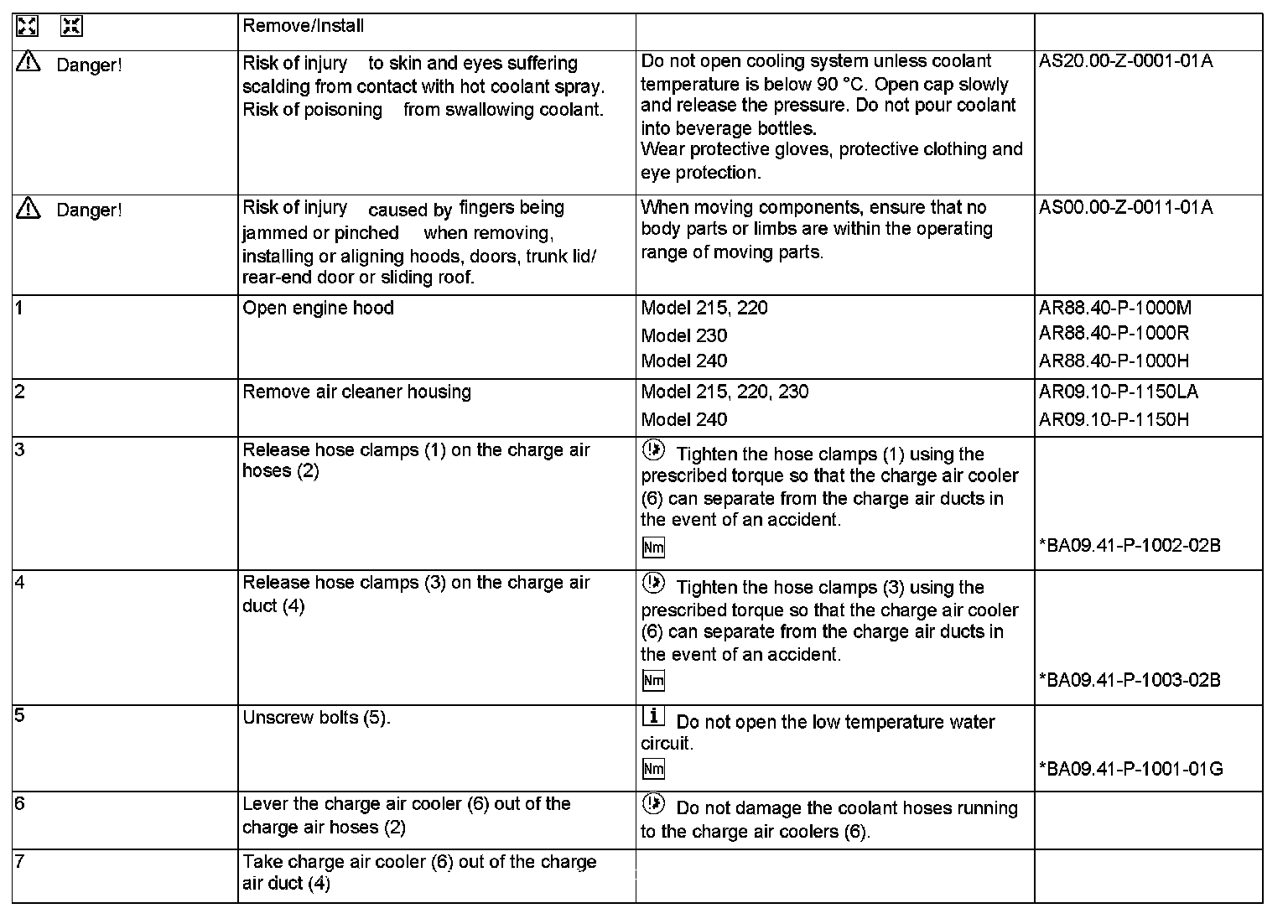

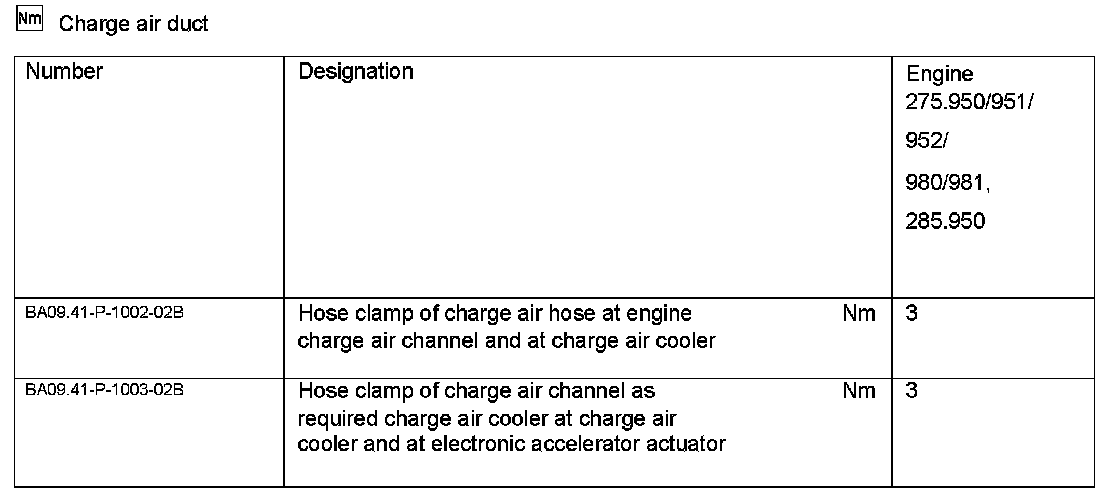

AR09.50-P-8680H Remove/Install Charge Air Duct Downstream of Charge Air Cooler
AR09.50-P-8680H Remove/Install Charge Air Duct Downstream of Charge Air Cooler
AR09.50-P-8680H Remove/Install Charge Air Duct Downstream of Charge Air Cooler
