Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Turbocharger >> Intercooler >> Intercooler Duct >> Service and Repair >> AR09.41-P-8623H Remove/Install Engine Charge Air Duct Upstream of Charge Air Cooler

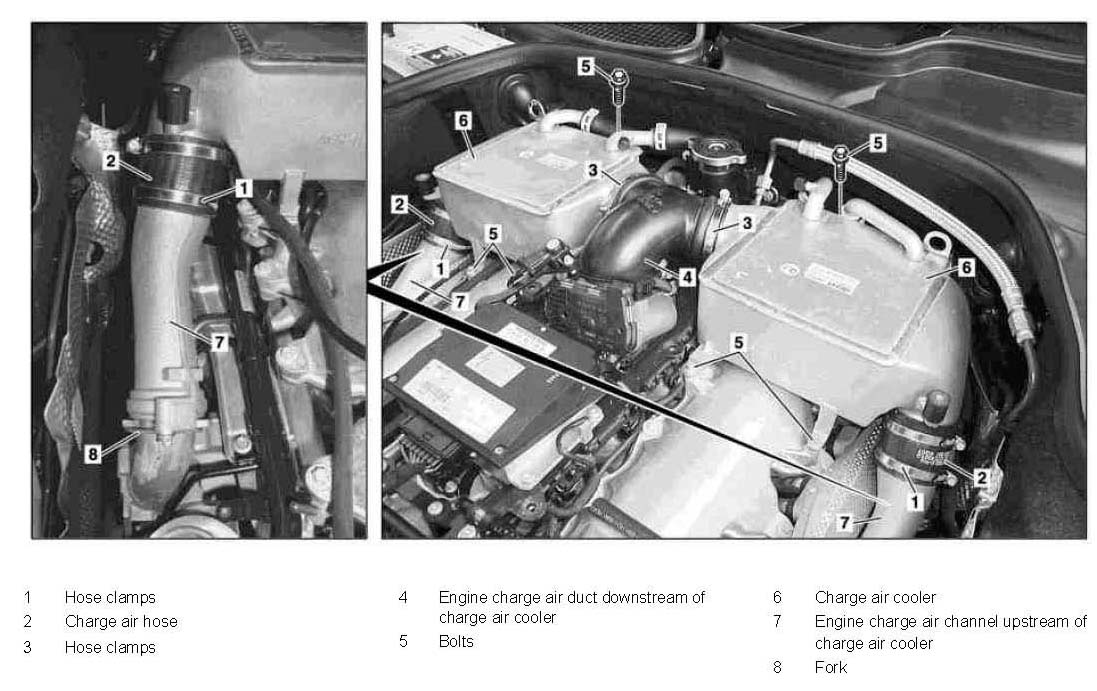

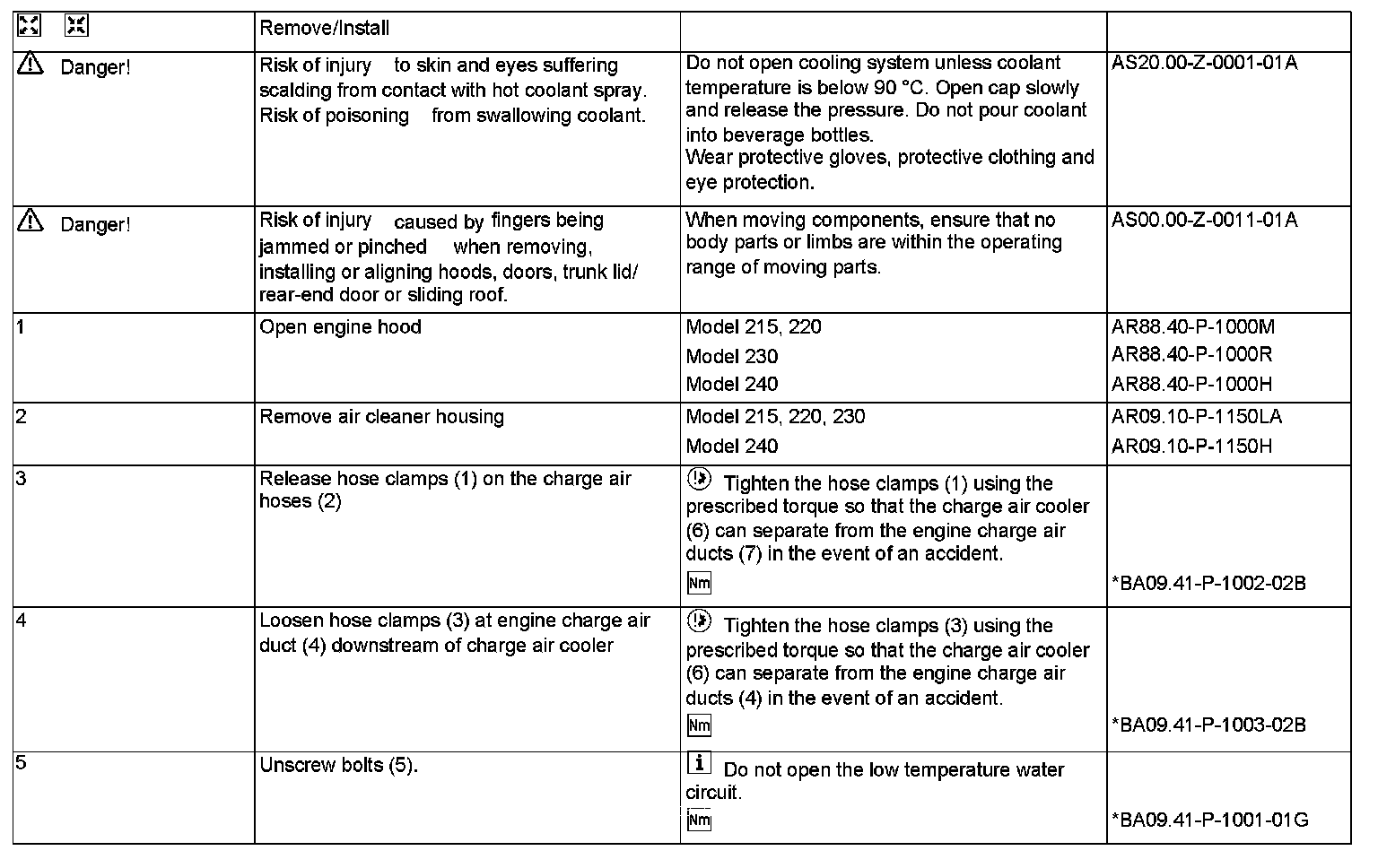

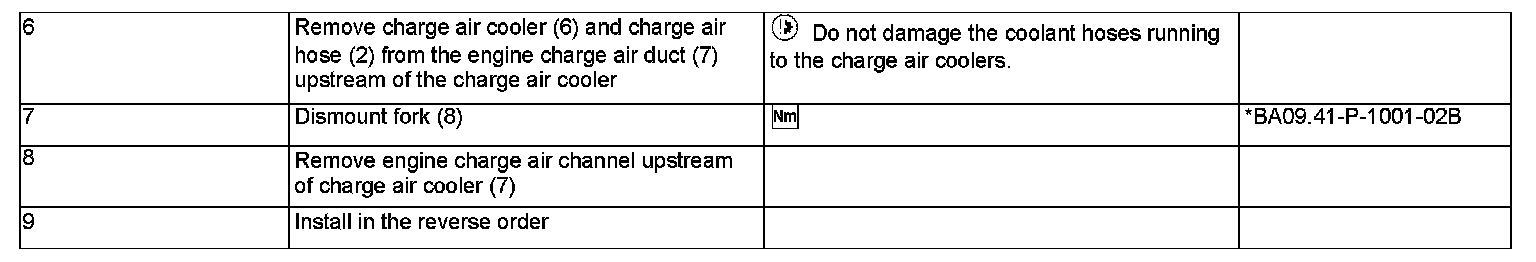

AR09.41-P-8623H Remove/Install Engine Charge Air Duct Upstream of Charge Air Cooler




AR09.41-P-8623H Remove/Install Engine Charge Air Duct Upstream of Charge Air Cooler
