AR09.40-P-3001R Remove/Install the Divert Air Valve
AR09.40-P-3001R Remove/Install the Divert Air Valve

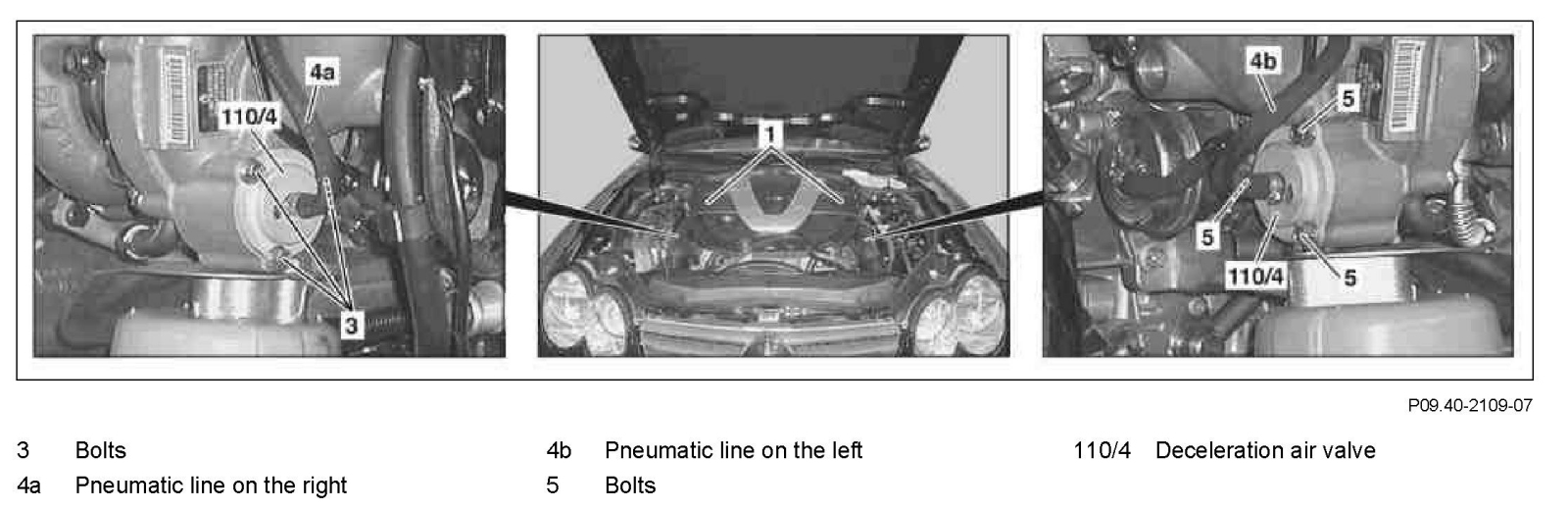

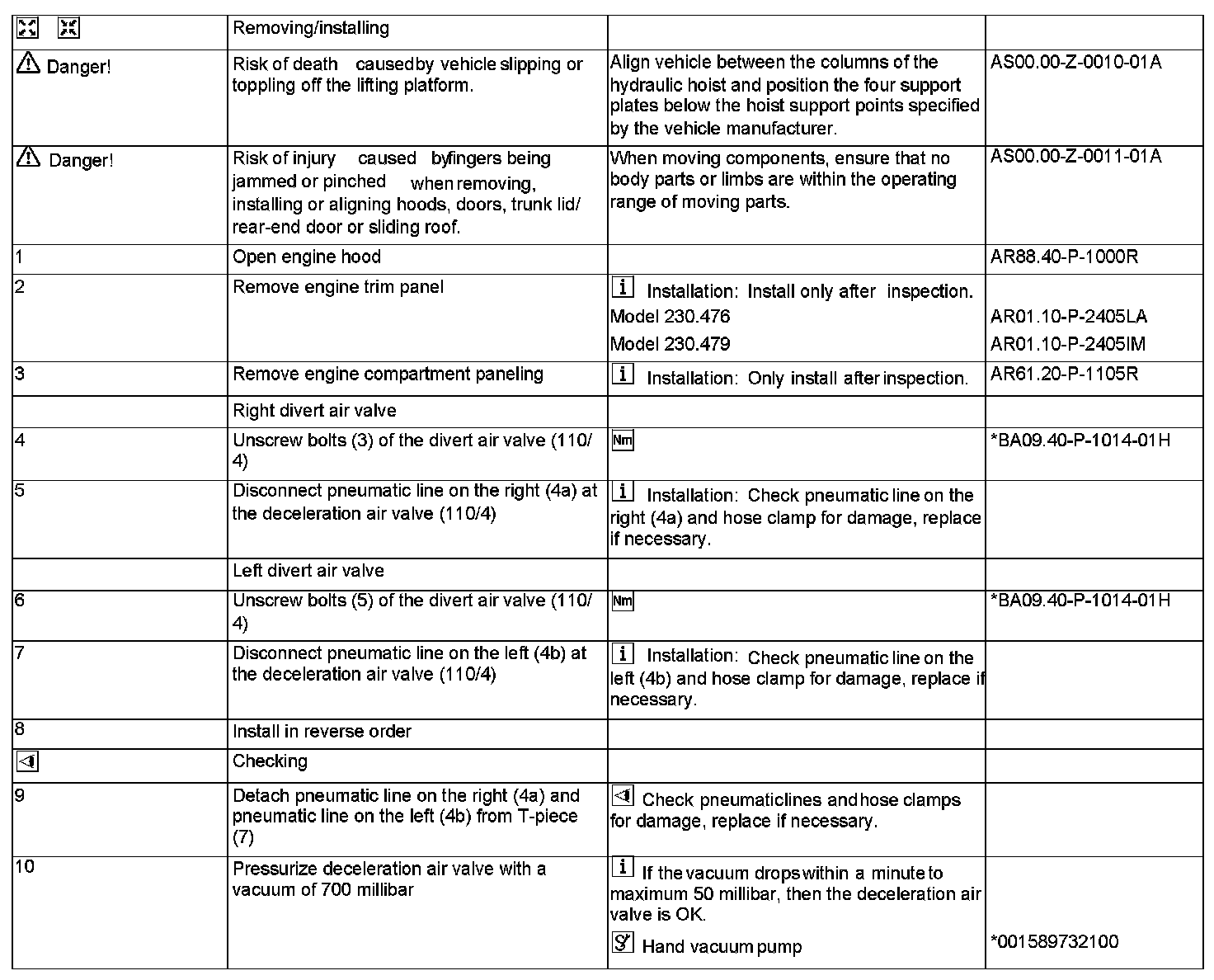

Removing And Installing The Divert Air Valve
New
Turbocharger
New Turbocharger:
