Air Bypass Valve Solenoid: Service and Repair

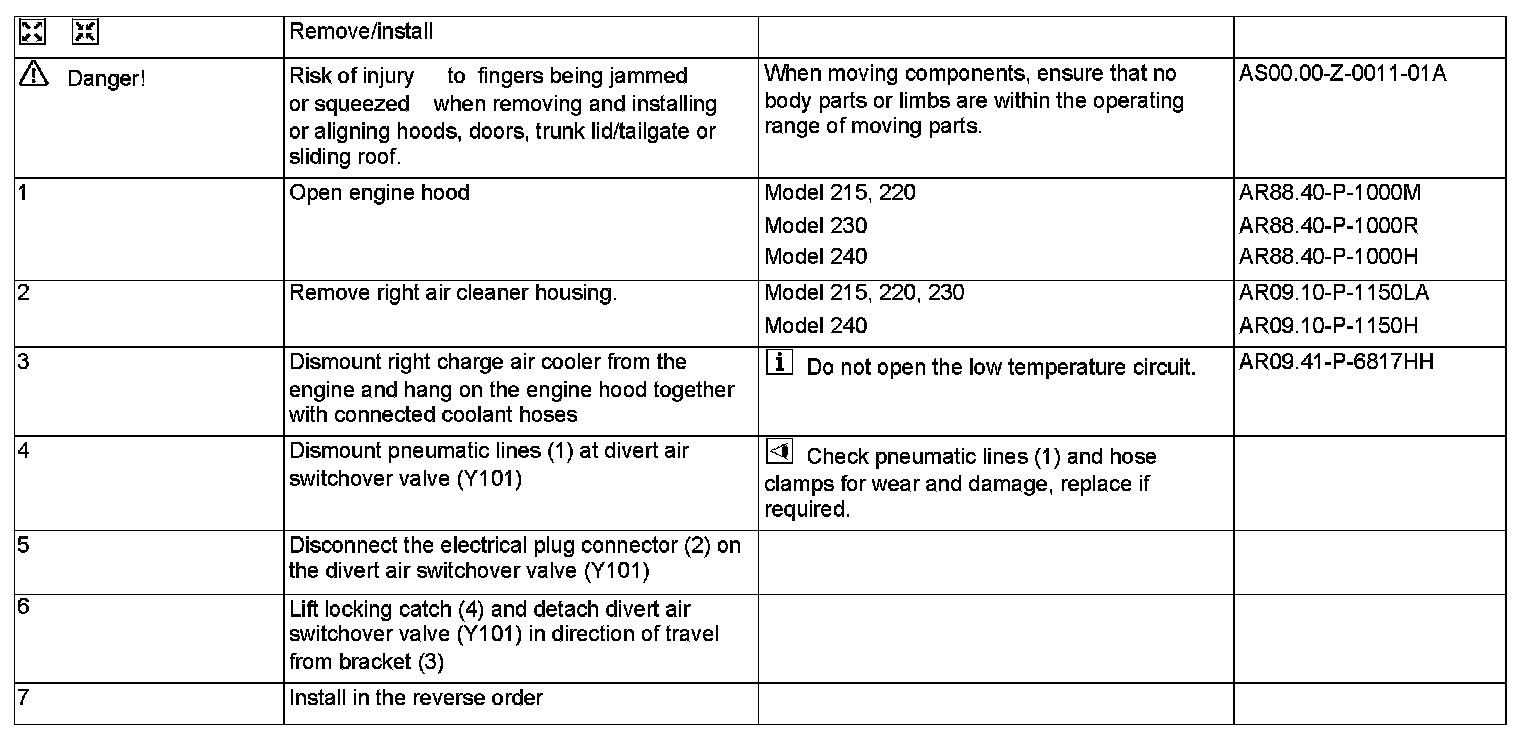

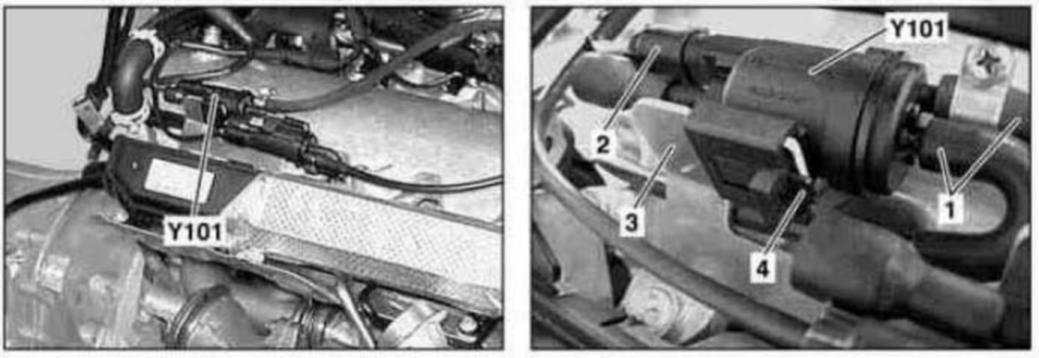

AR09.40-P-3000M Remove/Install the Divert Air Switchover Valve
